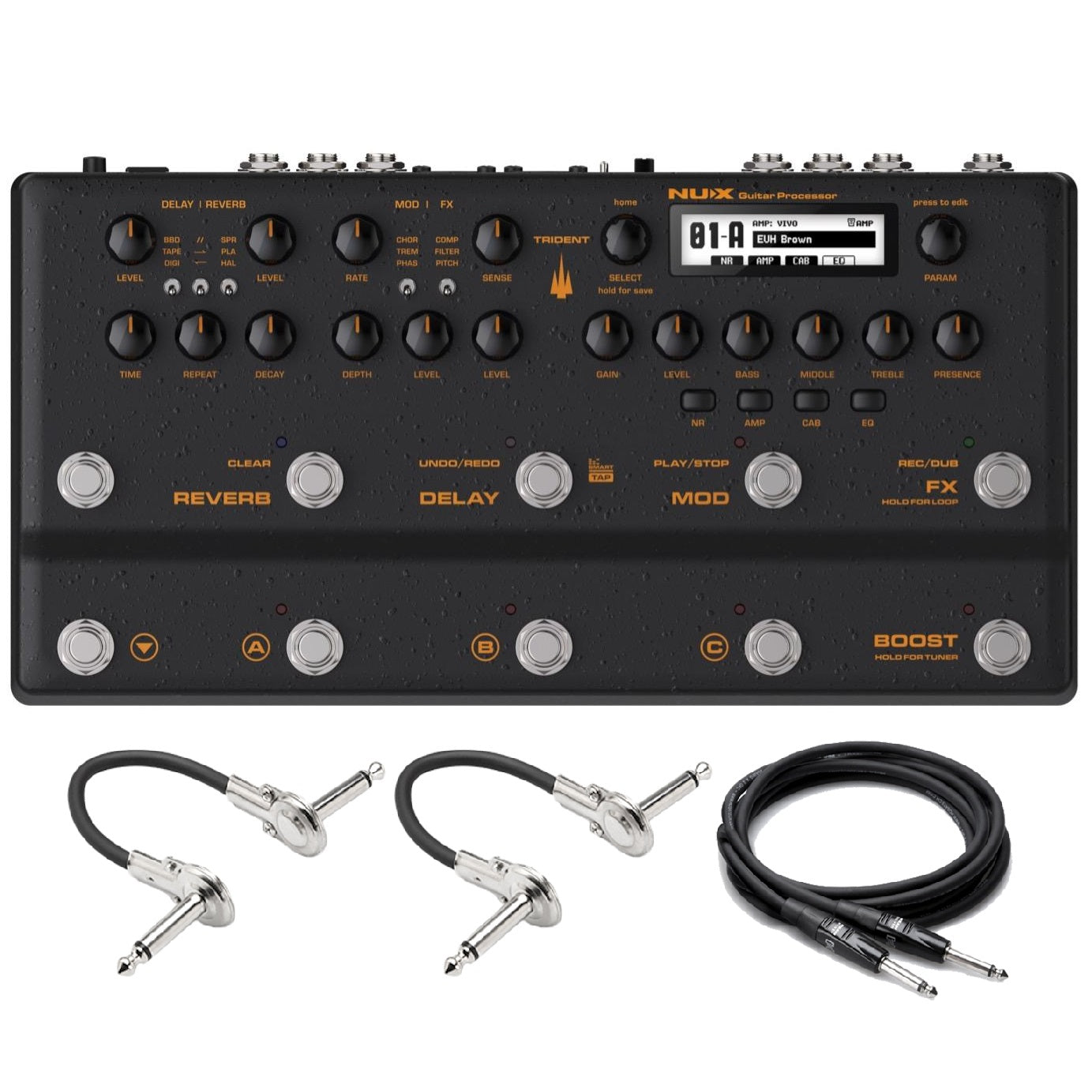

New NUX NME-5 Trident Multi Effects Guitar Processor Pedal

Includes two Hosa metal patch cables and a Hosa 10 ft Pro guitar cable

From NUX:

A Top Shelf Modeler for Live.
Perfect for live applications, the TRIDENT offers plenty of I/O options. The SEND/RETURN effect loop for external effects, 2 balanced XLR outputs to the PA system, PHONES output for monitoring, EXP. PEDAL input for adding an expression pedal, MASTER VOL pot, and MIDI IN / OUT.

Built like a tank.
The TRIDENT uses one-piece die-cast aluminum case, it's solid, strong, build for live performance.

World-Class Amp Modeling.
The TRIDENT features our newly updated iconic TSAC-4K Amp Modeling (White-box Physical Modeling algorithm). The TSAC-4K Amp Modeling algorithm is twice as complex than previous versions. This led us to design a new hardware platform with 2 DSPs, one to handle all the effects, and the other to handle the amp modeling algorithm. Additionally, the TRIDENT uses premium A/D & D/A converters and analog circuits to achieve a clear sound with low noise levels.

This world-class amp modeling algorithm comes fully loaded with features and functionality. Just like their real counterparts, the included 27 amps feature HIGH/LOW inputs, 4 inputs for patch cable jumping, toggle switch for voicing, for max tweaking.

An IR Loader for the Best Cabs.
The TRIDENT is a powerful IR loader and includes 27 Cab IRs at 1024 sample resolution. Fine tune your Cab tone with 4 microphones (3 positions each), to adjust IR low cut / high cut / level.

And finally, expand your IR library with 3rd party IRs and 32 additional slots. The Trident edit software will convert the IR format automatically on your PC or Mac.

Intuitive Control Layout.

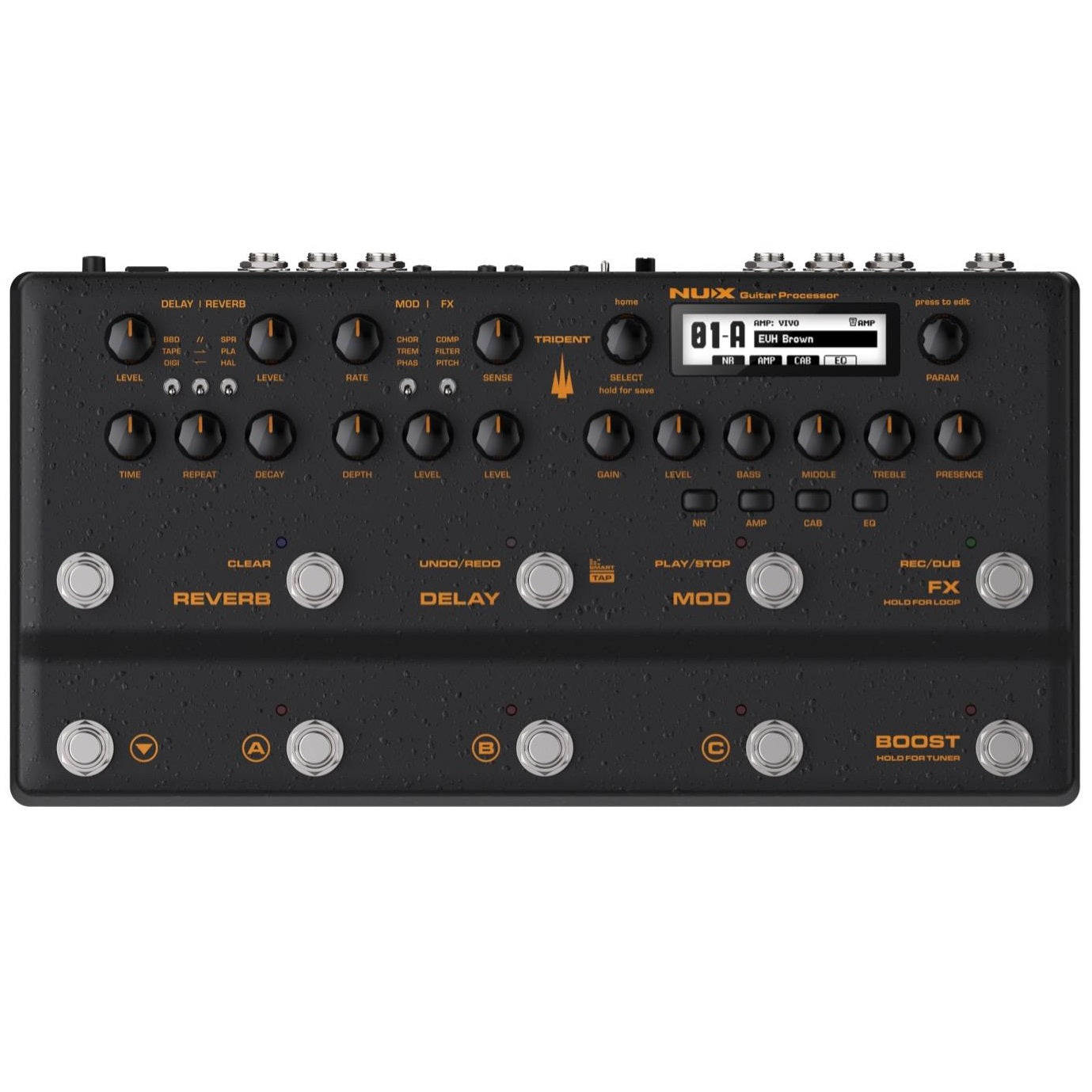

The knob layout, toggle switches, and foot switches of the TRIDENT are akin to stomp boxes, you can engage/disengage the effects freely. The SELECT & PARAM encoders with LCD display deliver more parameter details, block order / status.

A Powerful Studio Device.
The TRIDENT is also a powerful studio device, a perfect USB-C Audio Interface for guitar. You can download Trident Editor from the product page to edit patches, and setup the USB routing. Record your TRIDENT tracks to your favorite DAW or use it as a re-amp device to breathe new life into your previously recorded audio tracks.

Ample I/O.
USB Port: Connect the USB cable to your computer for firmware updates, USB audio recording, or Trident edit software editing.

1/8" MIDI IN / OUT Jack: Connect an external MIDI device here with the included 1/8" to 5 pin MIDI adaptors in the giftbox.

MASTER VOL Pot: The MASTER VOL potentiometer can adjust overall output level.

1/4" SEND/RETURN Jacks: Connect external pedals with the SEND/RETURN jacks. The SEND impedance: 1kΩ. The RETURN impedance: 100kΩ. Mode: Serial, Parallel, Branch.

A 30 Seconds Phrase Looper
The TRIDENT includes a 30 seconds phrase looper and you can adjust the looper position as PRE or POST. In PRE, the recorded loop is clean and ready to be processed by the TRIDENT Amps and Effects. In POST, the recorded loop is processed by the TRIDENT.

Specifications
INPUT Impedance: 1MΩ
AUX IN Impedance: 10kΩ
RETURN Impedance: 100kΩ
OUTPUT 1, OUTPUT 2, SEND Impedance: 1kΩ
Phone Impedance: 47Ω
Dynamic Range: 109dB
Sampling Rate: 48kHz / 32bit
System Latency: 1ms
Power: 9V DC (Negative Tip, included ACD-006A adaptor)
