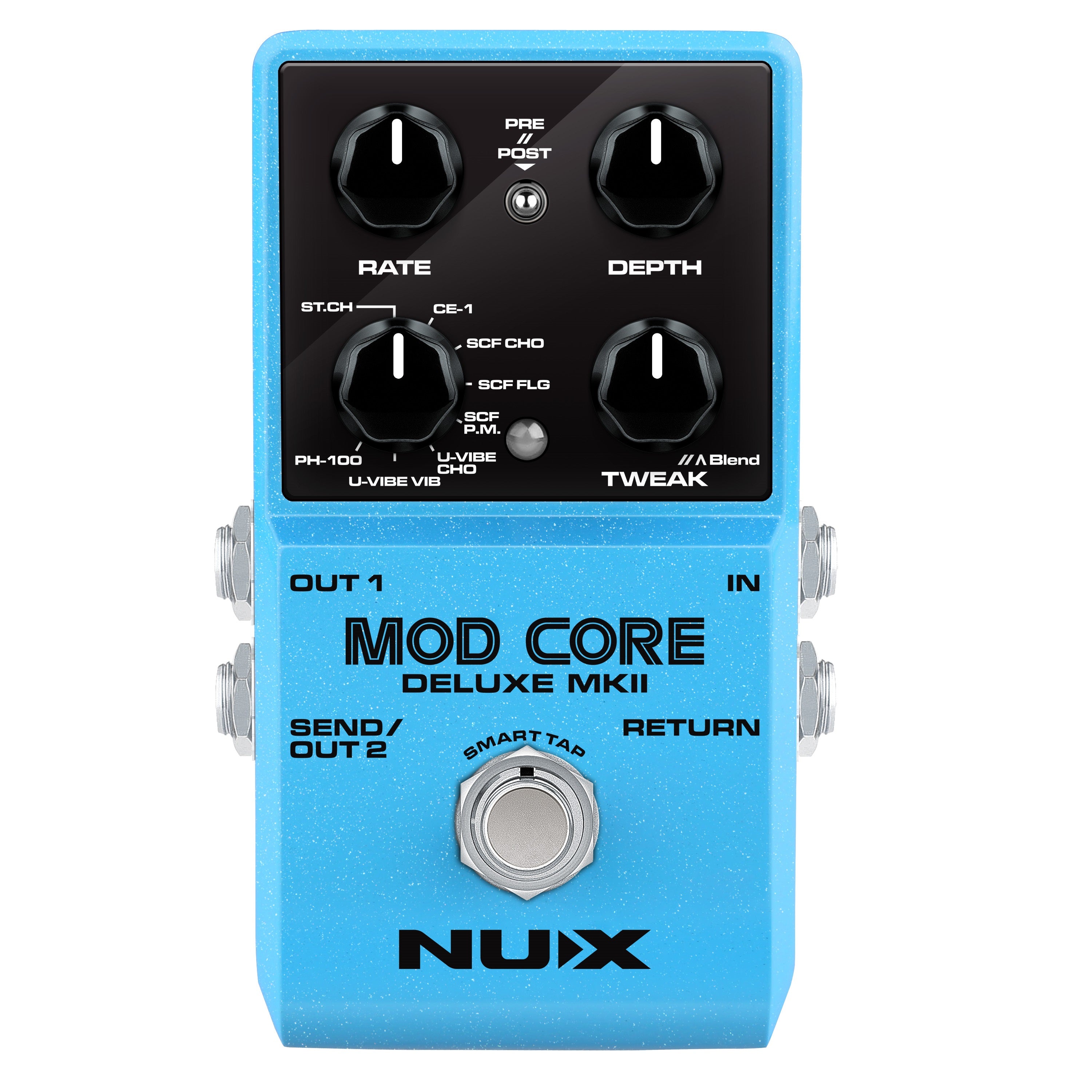

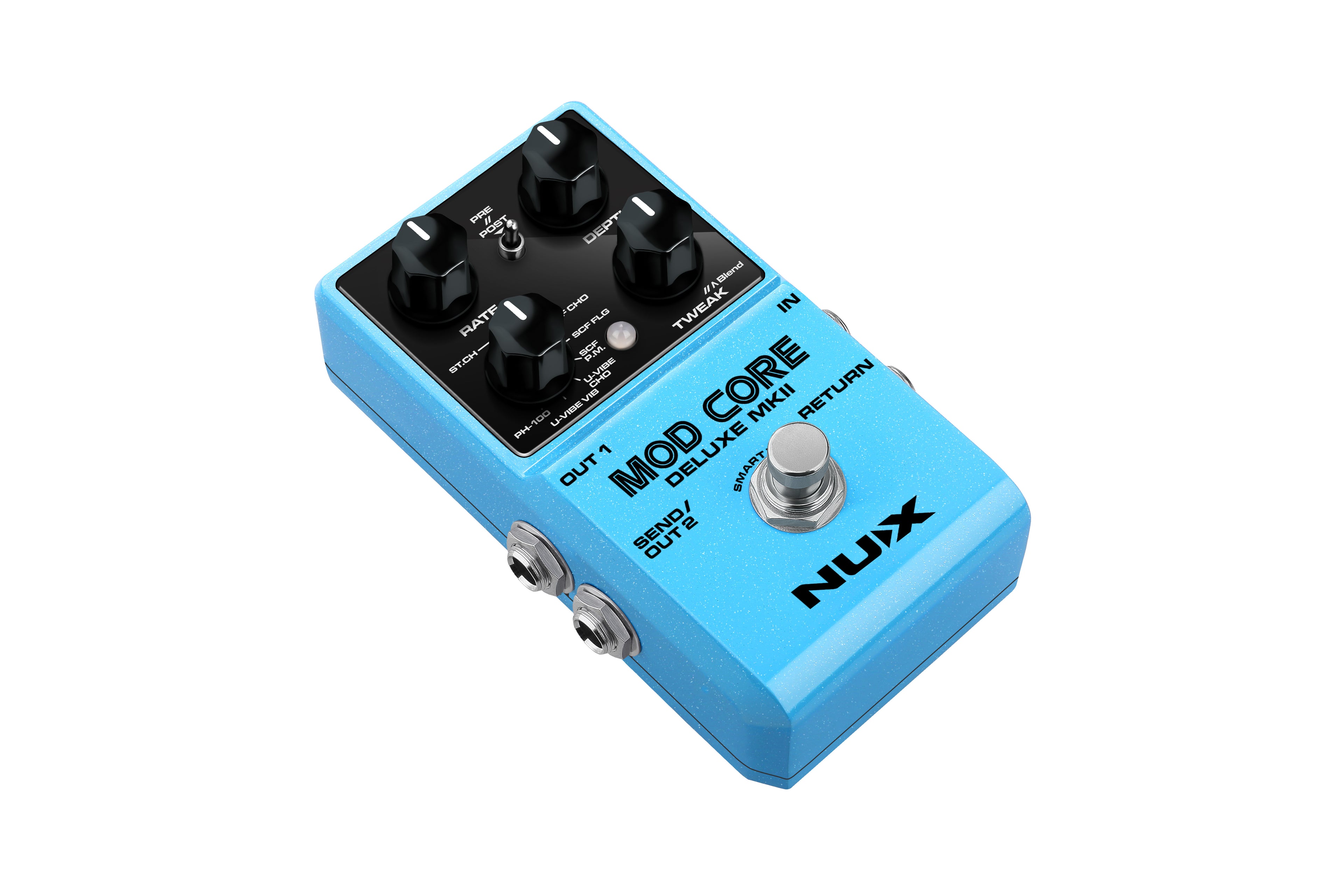

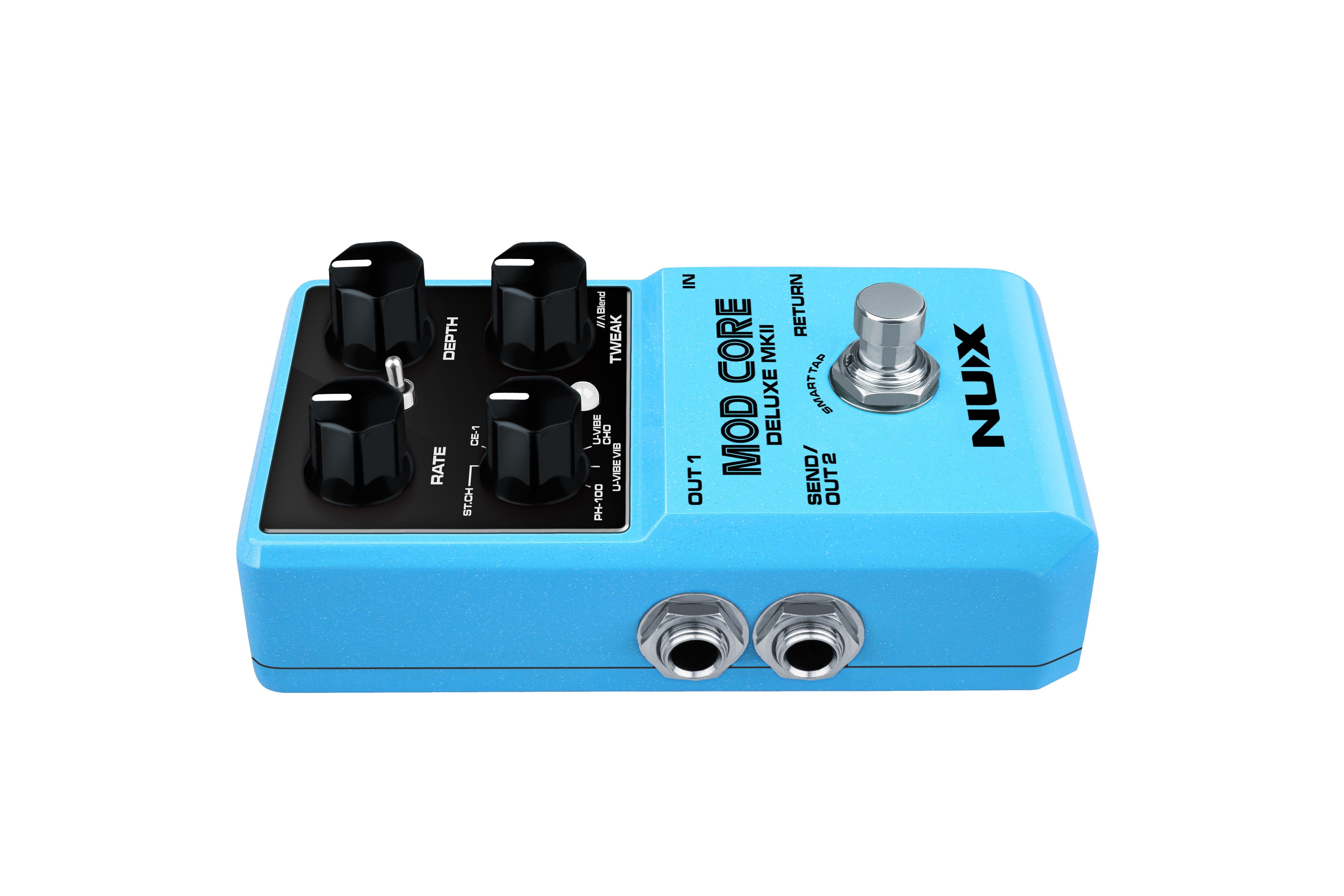

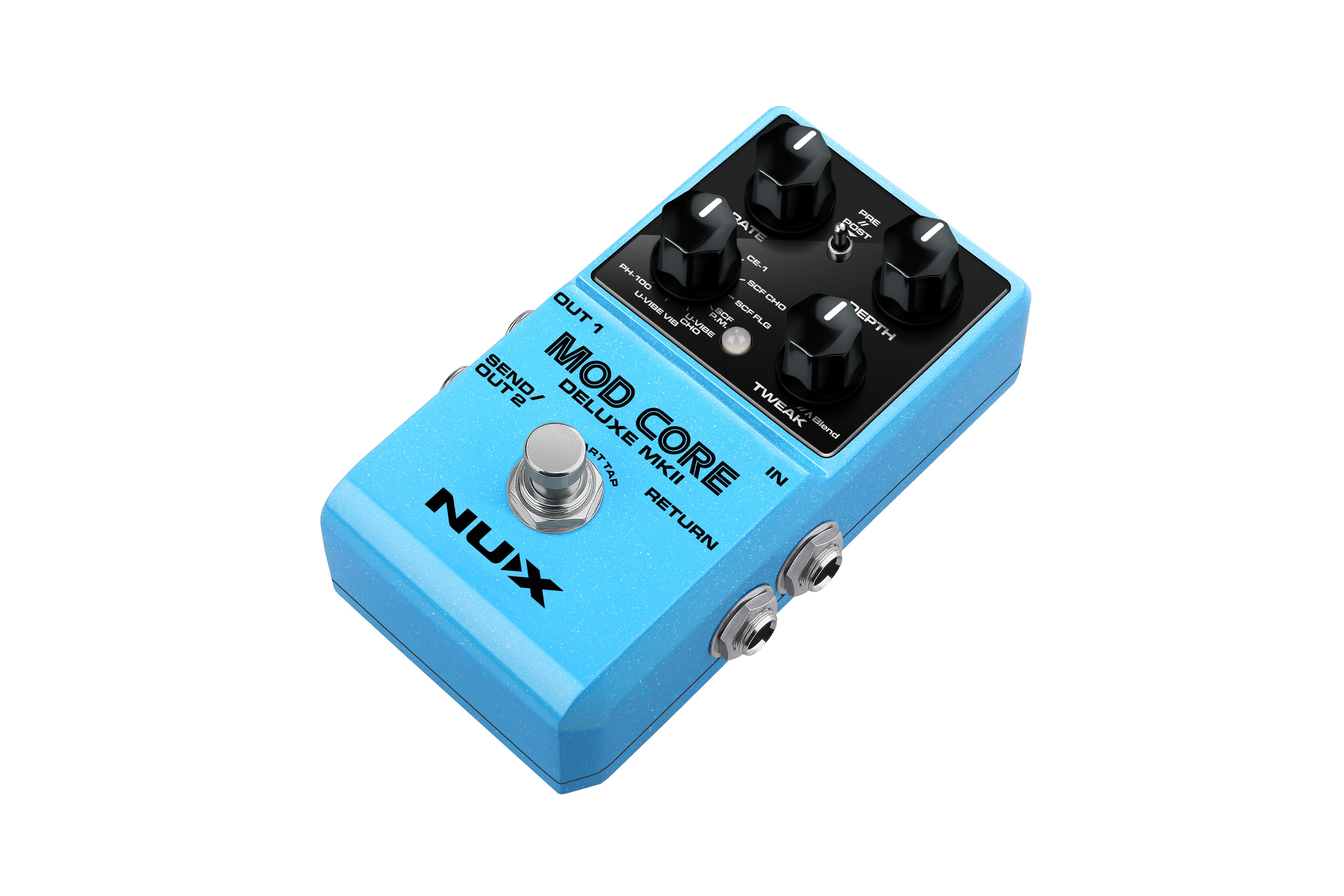

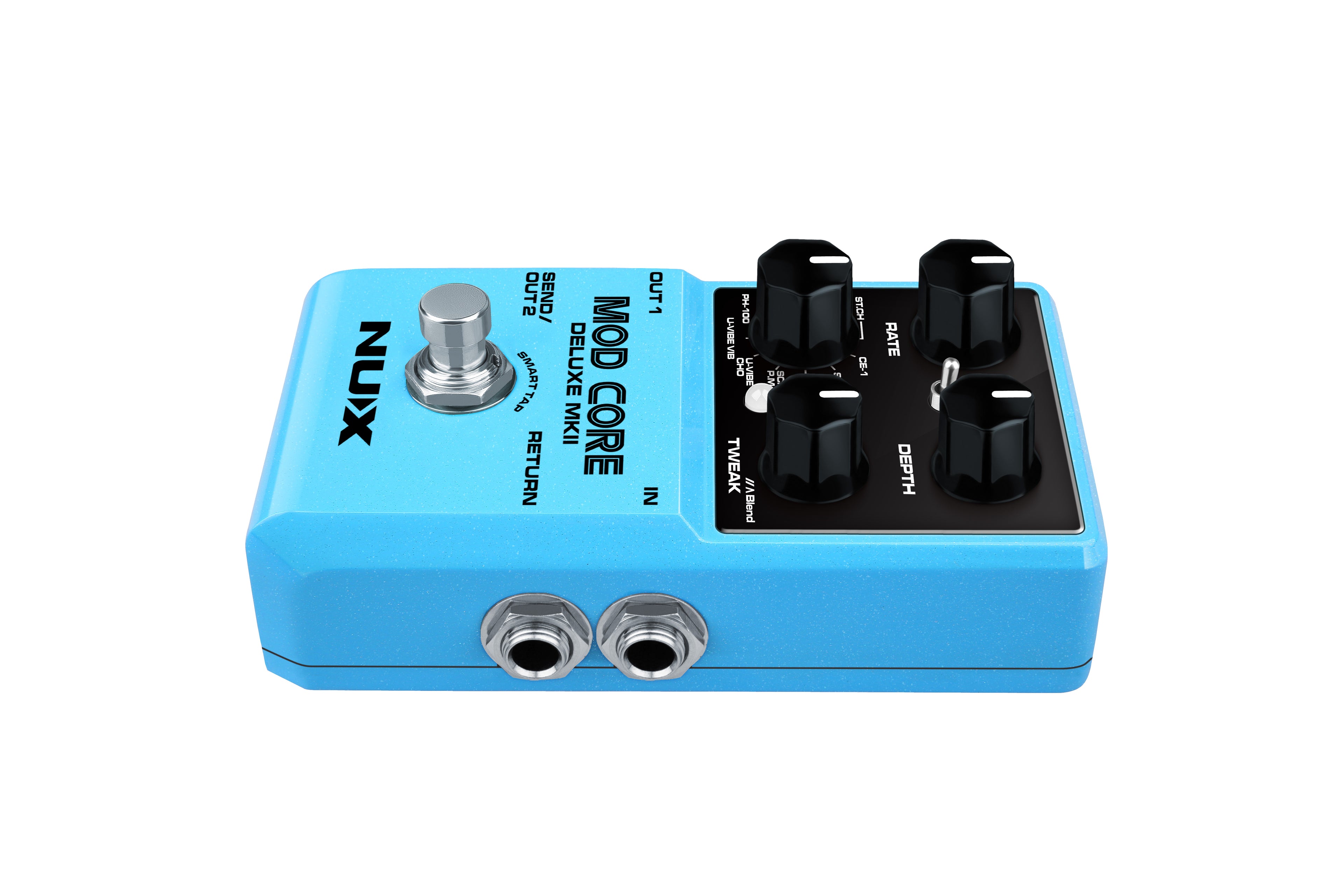

New NUX Mod Core Deluxe MKII Modulation Guitar Effects Pedal

From NUX:

The sleek and compact NUX MOD CORE DELUXE MKII multi-modulation pedal houses an incredible 8 modulation effects, giving you the flexibility to truly express yourself. With its wide range of mod types, from the warm and vintage-inspired ST.CH (Stereo Chorus) to the psychedelic U-Vibe VIB to the PH-100 - you have all the tools at your disposal to really stand out from the crowd. With the turn of a knob you can switch between these diverse and versatile effects, or stack them up to treat your audiences to something truly special. Whether you are jamming in the studio, hitting the open road with your band, or playing your heart out on a festival stage - the NUX MOD CORE DELUXE MKII has got you covered. So grab yours now and let the music take you away as you explore a world of possibilities!

This pedal offers advanced signal routing with the included Send and Return. Easily split the mono signal to create customized effect loops! Additionally, you can parallel the 2 signals, and use the Tweak knob in Alt mode to blend the signals. Use the 3-way toggle switch to the desired position, and you are good to go.

ST.CH (Stereo Chorus) is inspired by the MXR Stereo Chorus, which is beautiful sounding. We've consolidated the controls by eliminating the bass and treble knobs, now internally set at middle position, and we've eliminated the need for the bass filter altogether, which is now automatically corrected through the advancements of Core-Image™ sound modeling.

CE-1 is based on the legendary BOSS CE-1 which was the first chorus effect pedal on the scene in 1976. Before that, it was only available as a built-in effect on a classic jazz amplifier. The MOD CORE DELUXE MKII exactly replicates the characteristics of this pedal; that special warmth of a rich jazz atmosphere, an immediately recognizable highlight to any musician's tone.

SCF is a tribute to the TC Electronic Stereo Chorus Flanger, one of the best modulation pedals ever made.
SCF CHO: A chorus is basically a pitch generator which mixes multiple delay signals. When the multiple delay signals are mixed with the original signal, a soft and wide sounding modulation effect is created.
SCF FLG: A flanger is based on the same principle as a chorus, although here the signal can be regenerated (like adding feedback on a delay) creating a more distinctive sounding effect.
SCF P.M.: A combination of chorus and pitch vibrato which creates a "light" chorus sound.

U-VIBE is inspired by Dunlop Uni-Vibe for its stunningly unique sound. Old-school Uni-vibe delivered a huge 3D sound by simulating the physical Rotating Speaker Effect; that beautiful and unforgettable sound easily associated with Hendrix's bending facial expressions during his 60s stage performances.
U-VIBE CHO: Depth will change the depth of the sweeping effect.
U-VIBE VIB: Depth will change the degree of pitch modulation.

PH-100 is based on the MXR PHASE 100 which has both a Speed control and a 4-waveform Intensity control, the Phase 100 offers a broad range of tones.

The Tweak knob also acts as a Blend knob while in Alt mode. To access this set the toggle switch to the // (parallel) position. You can now press and hold the footswitch to enter Alt mode. Now, the Tweak knob becomes Blend function to adjust the mixing rate of Modulation effect signal and Send/Return signal. (Counterclockwise gets more Send/Return signal, clockwise gets more Modulation signal.)

Features
- 8 modulation types in a compact enclosure: ST.CH (Stereo Chorus), CE-1, SCF CHO, SCF FLG, SCF P.M., U-VIBE CHO, U-VIBE VIB and PH-100.
- ST.CH is based on MXR Stereo Chorus.
- CE-1 is based on BOSS CE-1.
- SCF is based on TC Electronic SCF Stereo Chorus Flanger.
- U-VIBE is based on Dunlop UV-1 Uni-Vibe Chorus / Vibrato.
- PH-100 is based on MXR Phase 100.
- Normal routing (mono out or stereo out) and advanced routing (PRE, //, POST).
- Parallel routing offers Blend parameter (Alt mode, Tweak becomes Blend parameter).
- Smart Tap Tempo (50~200 BPM).
- Low power consumption (less than 120mA).
- Analog dry signal for low noise and zero latency.
