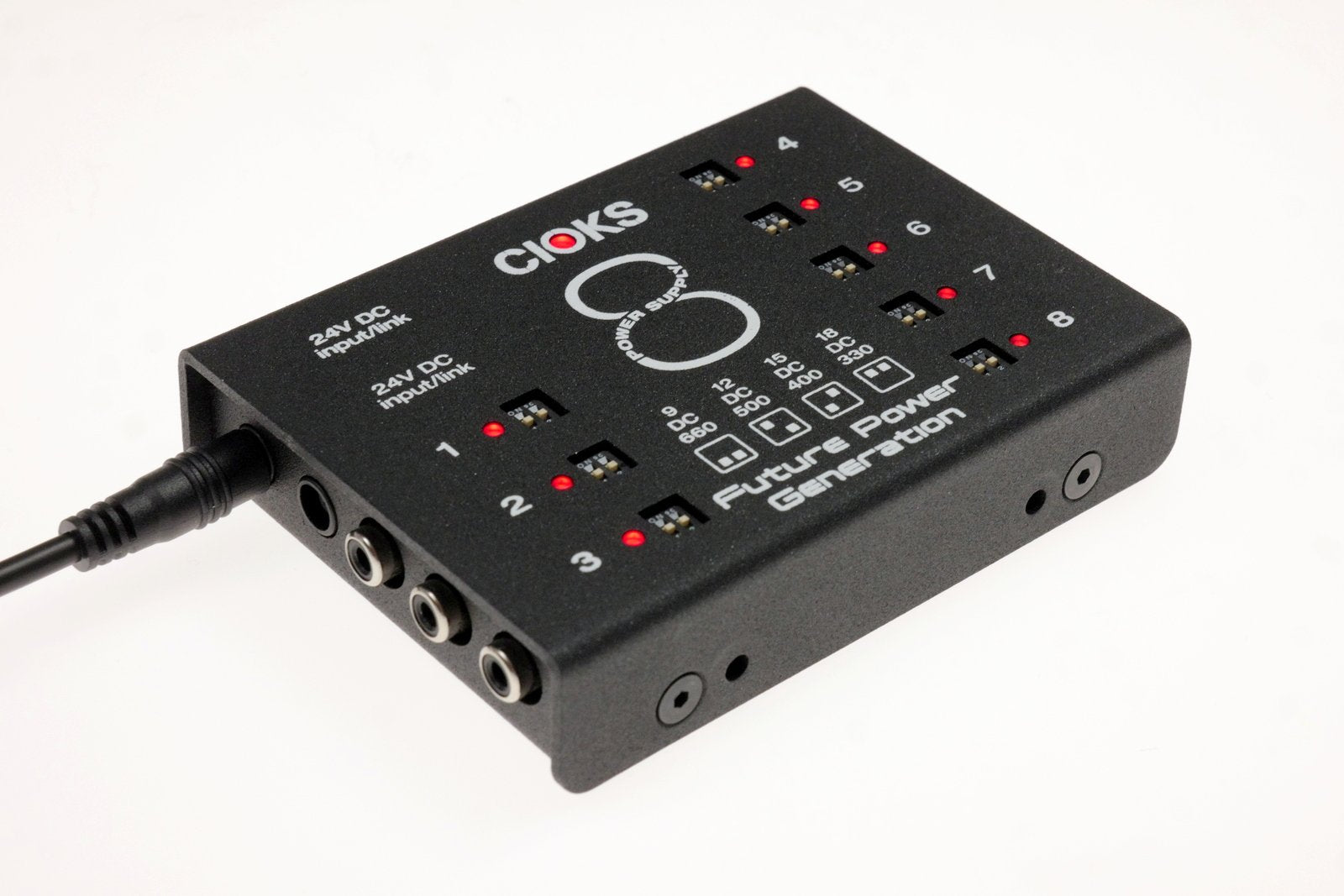

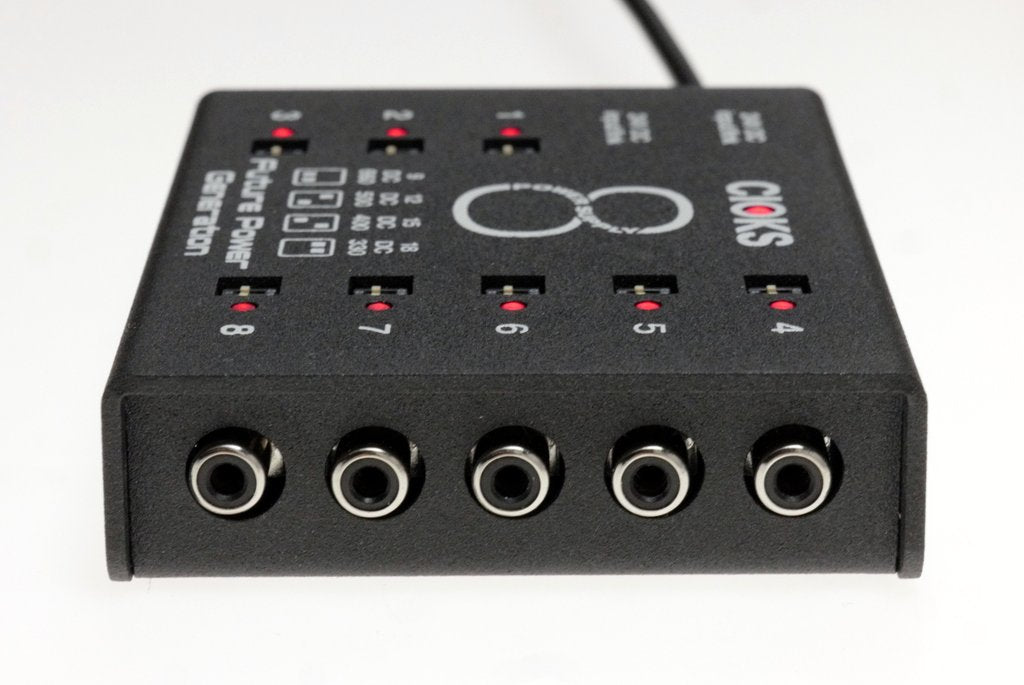

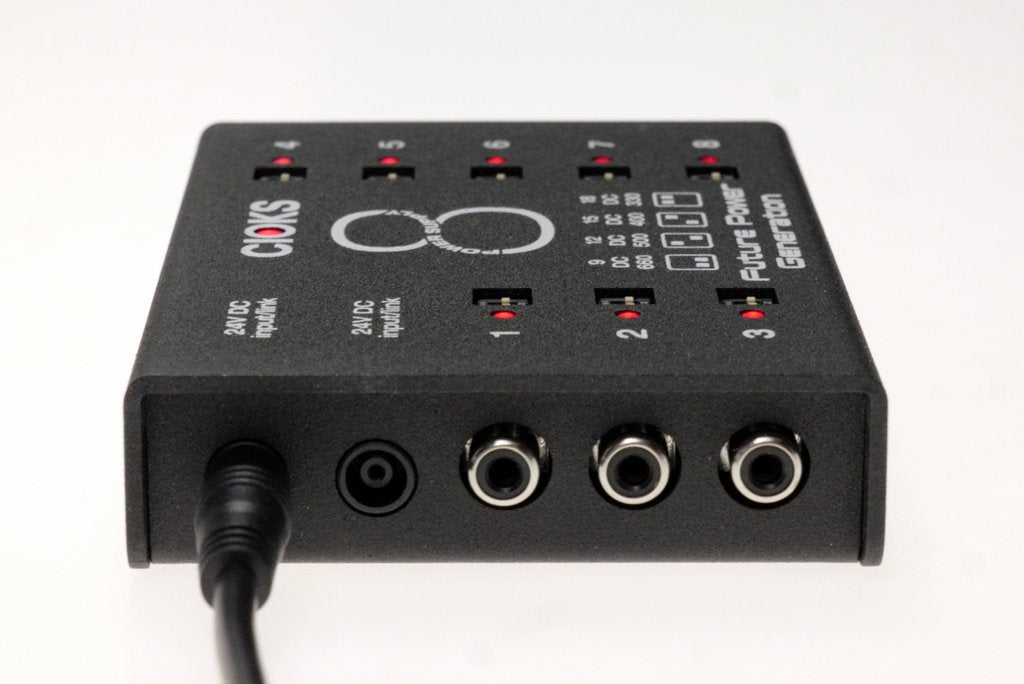

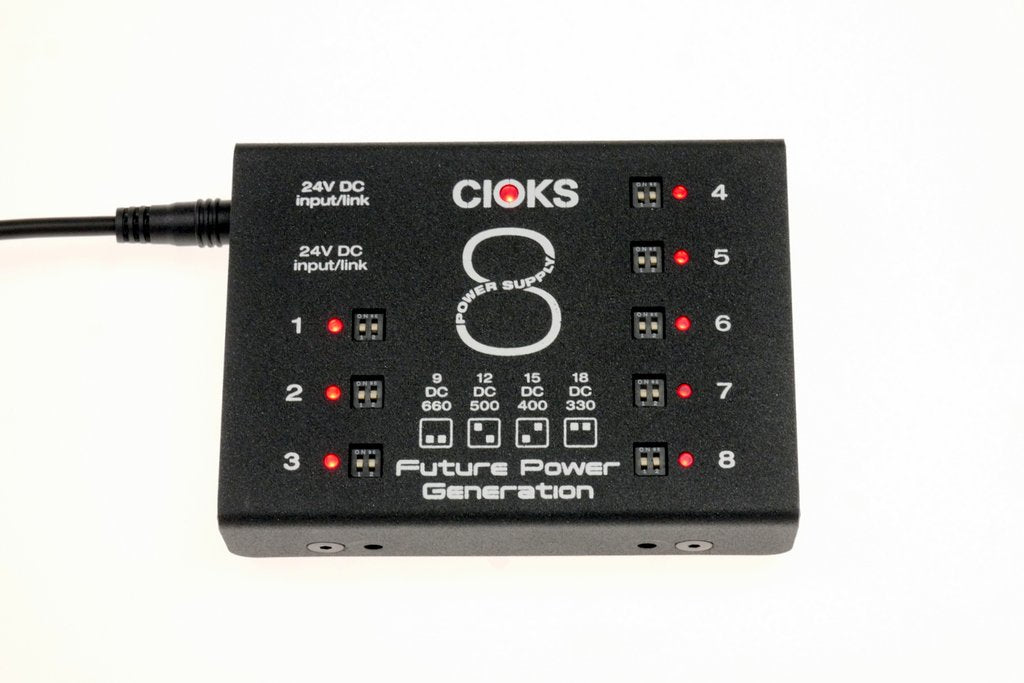

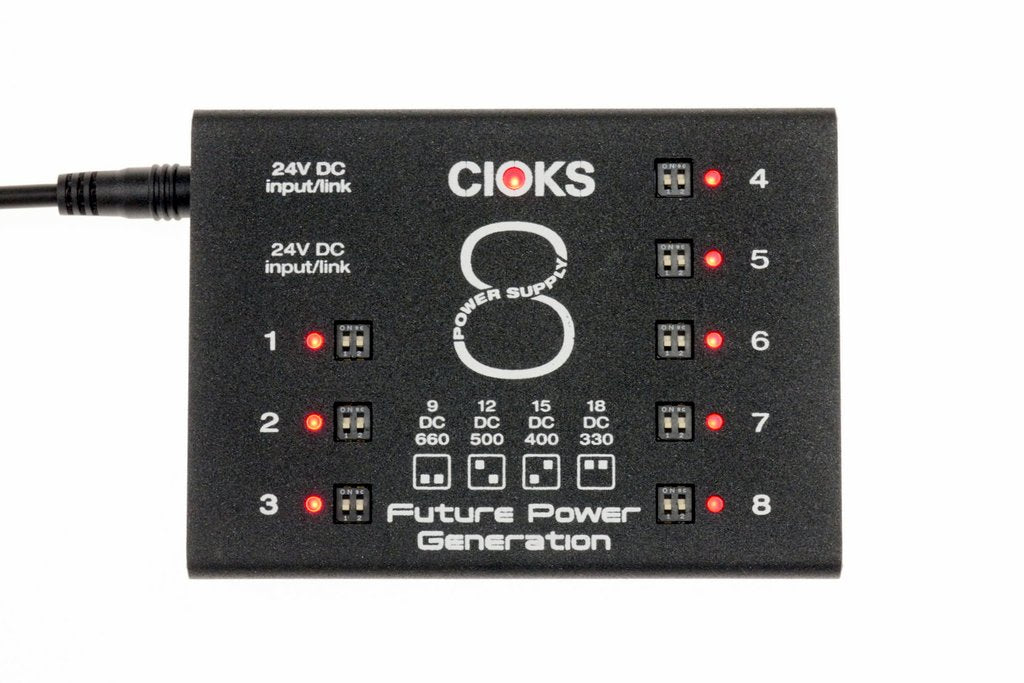

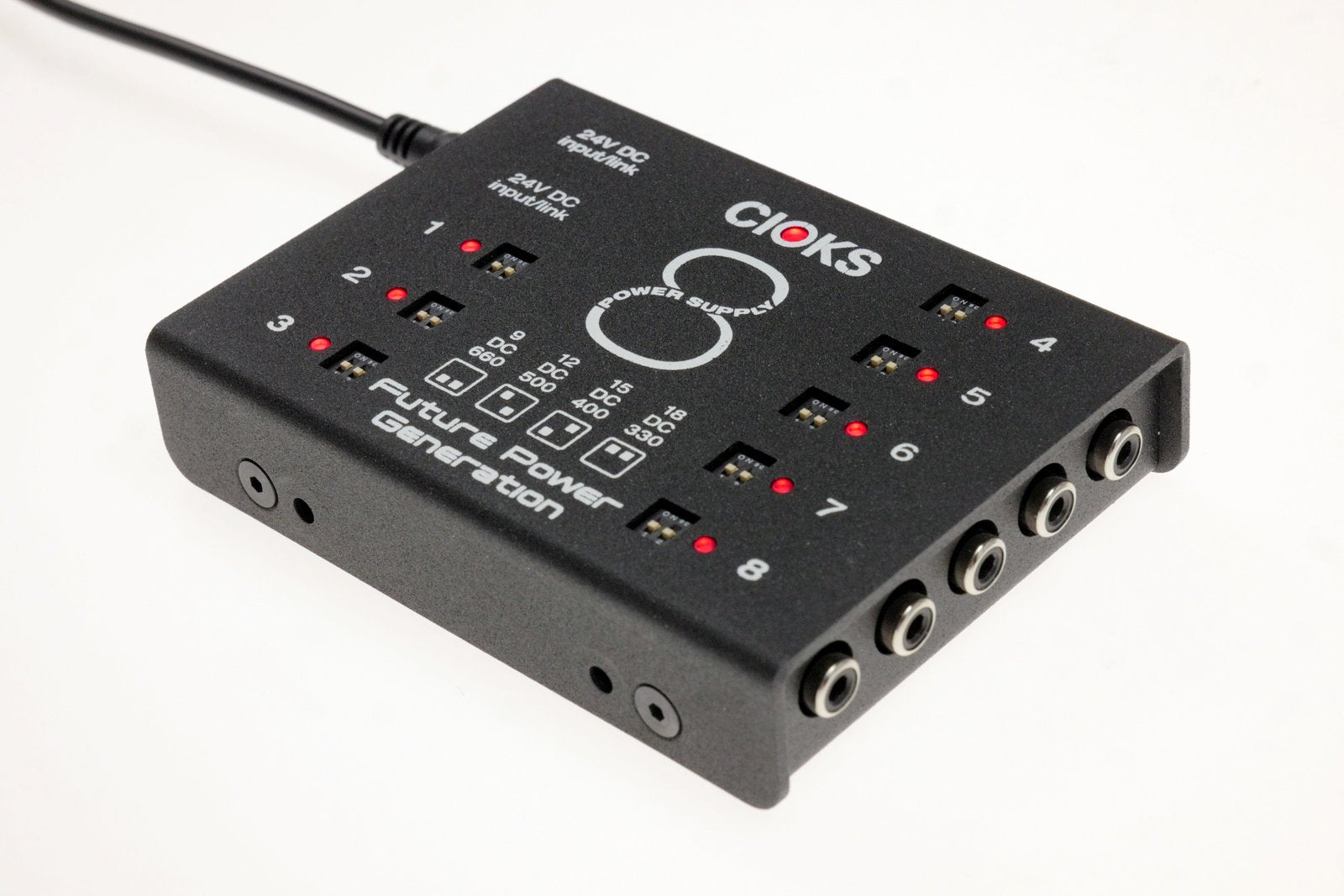

New CIOKS 8 Guitar Pedal Expansion Power Supply

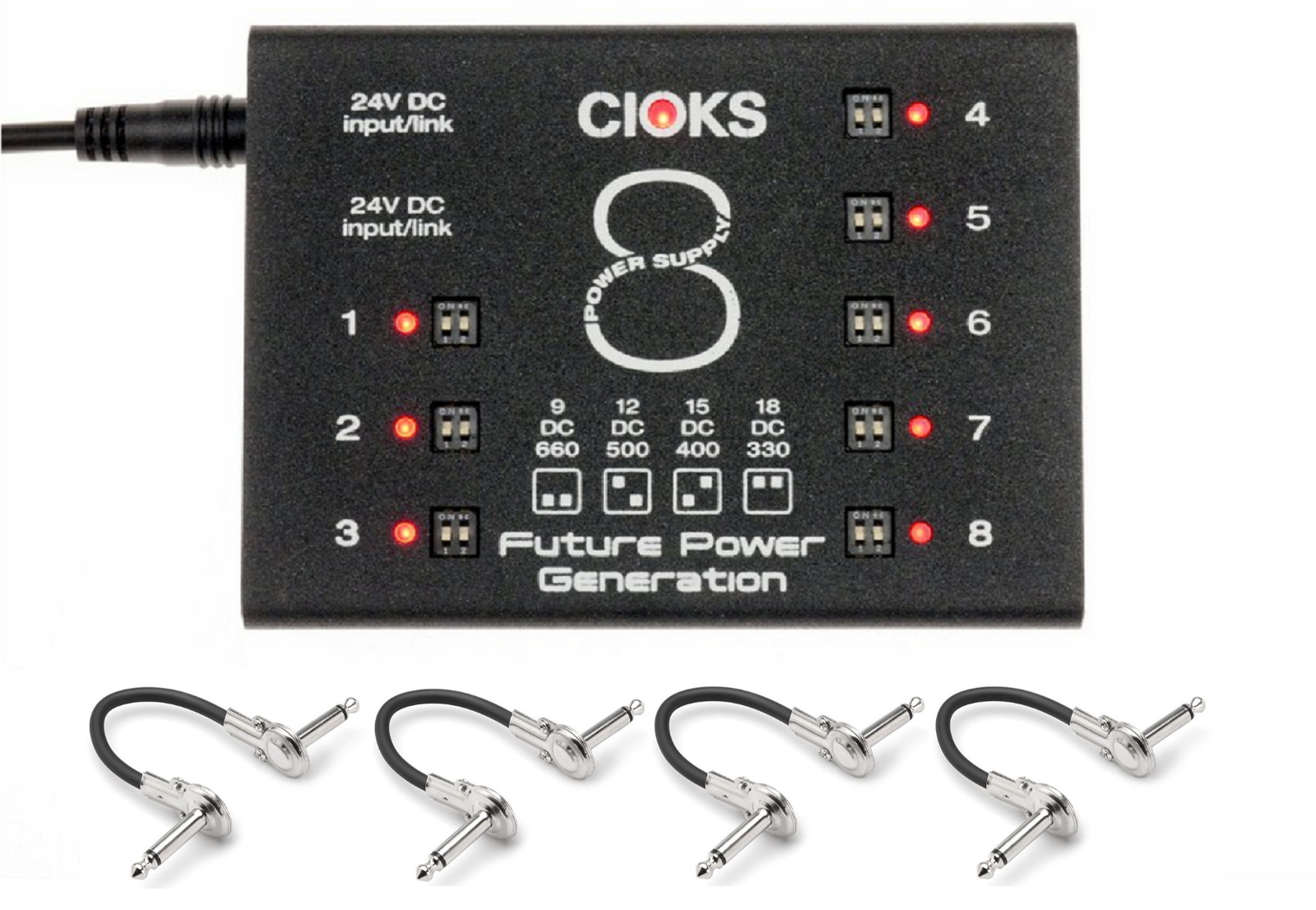

With your purchase you will receive 4 Hosa IRG-100.5 6 Inch Metal Patch Cables! All power cables included.

The largest power supply extender in the Future Power Generation.

CIOKS 8 is the company's largest switch-mode power supply extender and it features 8 isolated outlets which each deliver 9V DC with 660mA. All eight outlets offer four switchable voltages (9V, 12V, 15V and 18V).

CIOKS 8 was primarily designed to be used as a large extender to DC7 in case you need more outlets but it can also be used as a stand-alone power supply. To use CIOKS 8 as an extension to DC7 simply use the included DC Link cable to connect the CIOKS 8 to the courtesy 24V outlet on your DC7 and you are good to go.

In case you want to use CIOKS 8 as a stand-alone power supply you can power it with any 24V DC adapter with the appropriate DC plug. To get the full 6W output power on all 8 isolated outlets the adapter used to power CIOKS 8 should have an output power of 60W.

Features:

• CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
• Ultra-low noise achieved by multistage filtering
• 8 isolated DC-outlets, 6W each
• 660mA at 9V DC on each outlet
• 4 selectable voltages on each outlet
• Global overload status LED
• Mounting hardware for Pedaltrain and Templeaudio boards included
• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards
• 12 Flex cables included
• 24V DC Link cable included
• Designed in Denmark, assembled in Poland
• 5-year worldwide warranty* provided sufficient power is applied on the input of the CIOKS 8.
• Outlets 1-8:
• 9V DC / 660mA
• 12V DC / 500mA
• 15V DC / 400mA
• 18V DC / 330mA each

If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of CIOKS DC7 and CIOKS 8 will definitely be an awesome solution as this combo will give you 15 isolated outlets in total with 4 switchable voltages on each outlet plus a 5V USB outlet to charge your smartphone or tablet (courtesy of DC7).

Flex cables included:

A total of 12 Flex cables are included.

The user is able to power 11 pedals of the BOSS standard type with the included Flex kit:

• (1) 1015 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)
• (3) 1030 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)
• (2) 1050 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 50cm (black)
• (1) 2050 – Type 2 - 5,5/2,1mm DC plug, centre positive, L-shape, 50cm (red)
• (1) 4050 – Type 4 - 5,5/2,5mm DC plug, centre positive, L-shape, 50cm (green)
• (1) 5050 – Type 5 - 3,5mm Jack plug, tip positive, L-shape, 50cm (black)
• (1) 1035 – Split Flex type 1, 30+50cm (black)
• (1) 1533 – 3-way daisy chain Flex type 1, 30-30-50cm (black
