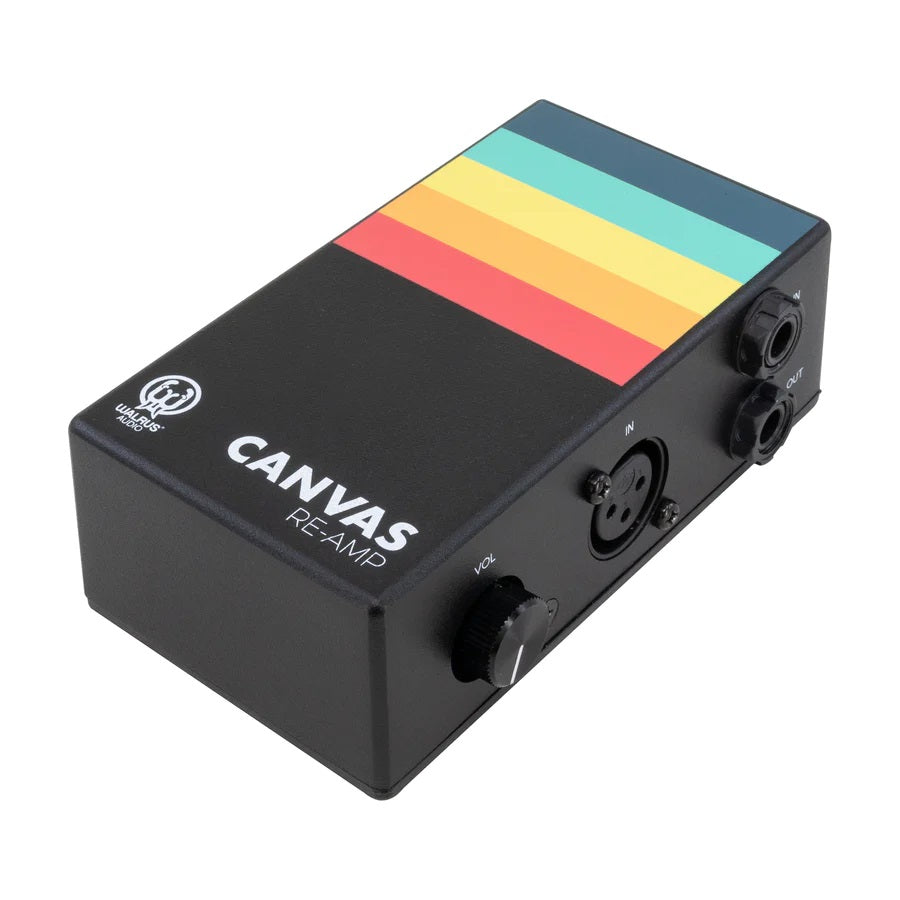

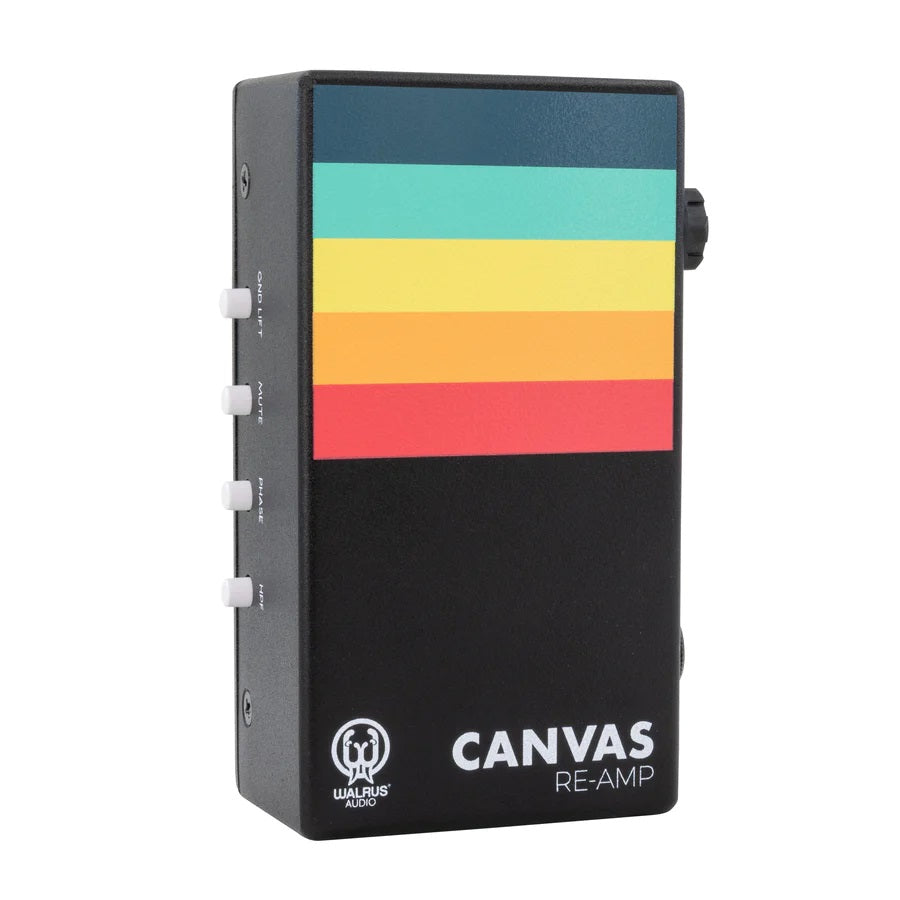

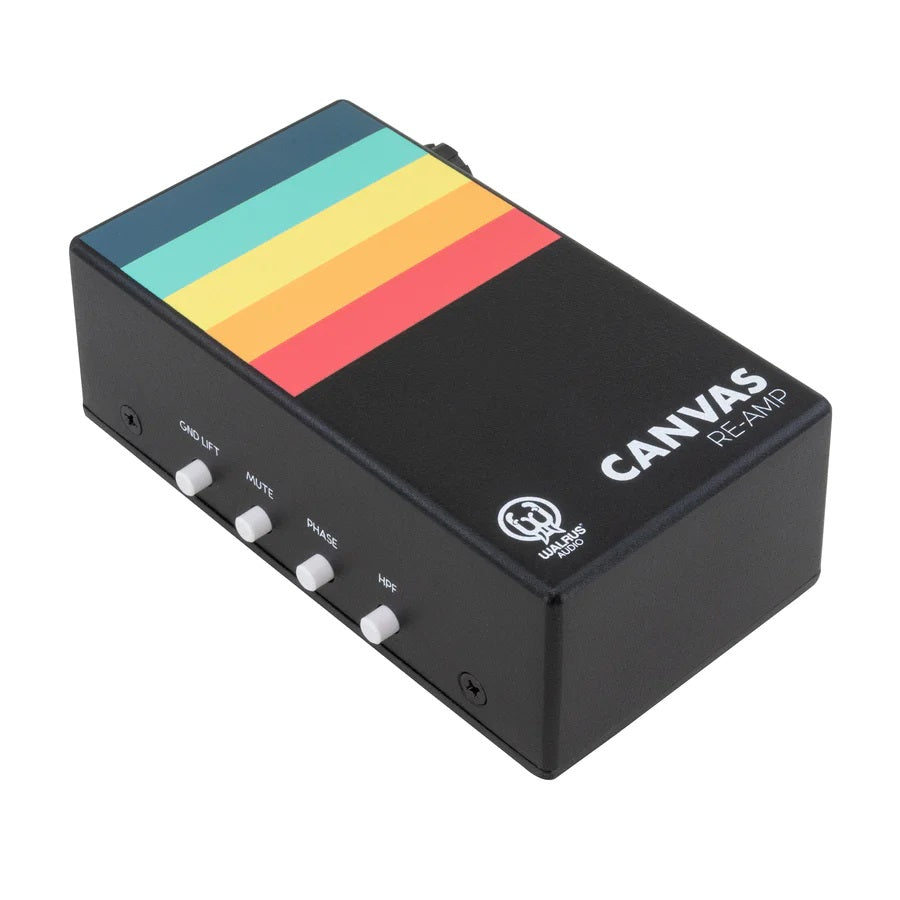

Used Walrus Audio Canvas Re-Amp Passive Re-amping Device for Effects Pedals

Mint, all original packaging, as new

From Walrus Audio:

Adding another tool to the musical paint pallet, Walrus Audio is creating another way to design your tone with the Canvas Series Passive Re-Amp. The Re-Amp is a studio tool designed to send recorded guitar, drums, or other instrument tracks from your recording session through pedals and effects, or different amp combinations. The Re-Amp makes its appearance to facilitate all-new ways to experiment with your songs.

Artists and producers can save time on tracking sessions by recording dry tracks first, then using Canvas Re-Amp's custom transformer to convert line-level signals, optimizing them to work with amps and guitar pedals of any kind to explore limitless tones and sounds.

Using a Re-Amp

1. From your DAW, audio track goes into the Canvas Re-Amp.
2. Out from Re-Amp into pedals or mic'd amp.
3. Out from pedals / amp back into DAW.

Canvas Re-Amp Features:

• Frequency Response: 20Hz to 20kHz
• THD+N: 0.07% @ 20Hz / +4dBu Input; 0.001% @ 1kHz / +4dBu Input
• Maximum Input Level: +21dBu @ 20Hz
• Noise Floor: -116dBu
• Signal To Noise Ratio: 114dB @ 1kHz
• Input: Balanced Line-Level
• Input Impedance: 3k Ohms
• Output: Unbalanced Instrumental-Level
• Output Impedance: 2.5k Ohms
• Common Mode Rejection Ratio: 79dB @ 20Hz / +4dBu Input
• Power Requirement: None — Passive
• Audio Circuit: Transformer Isolated
