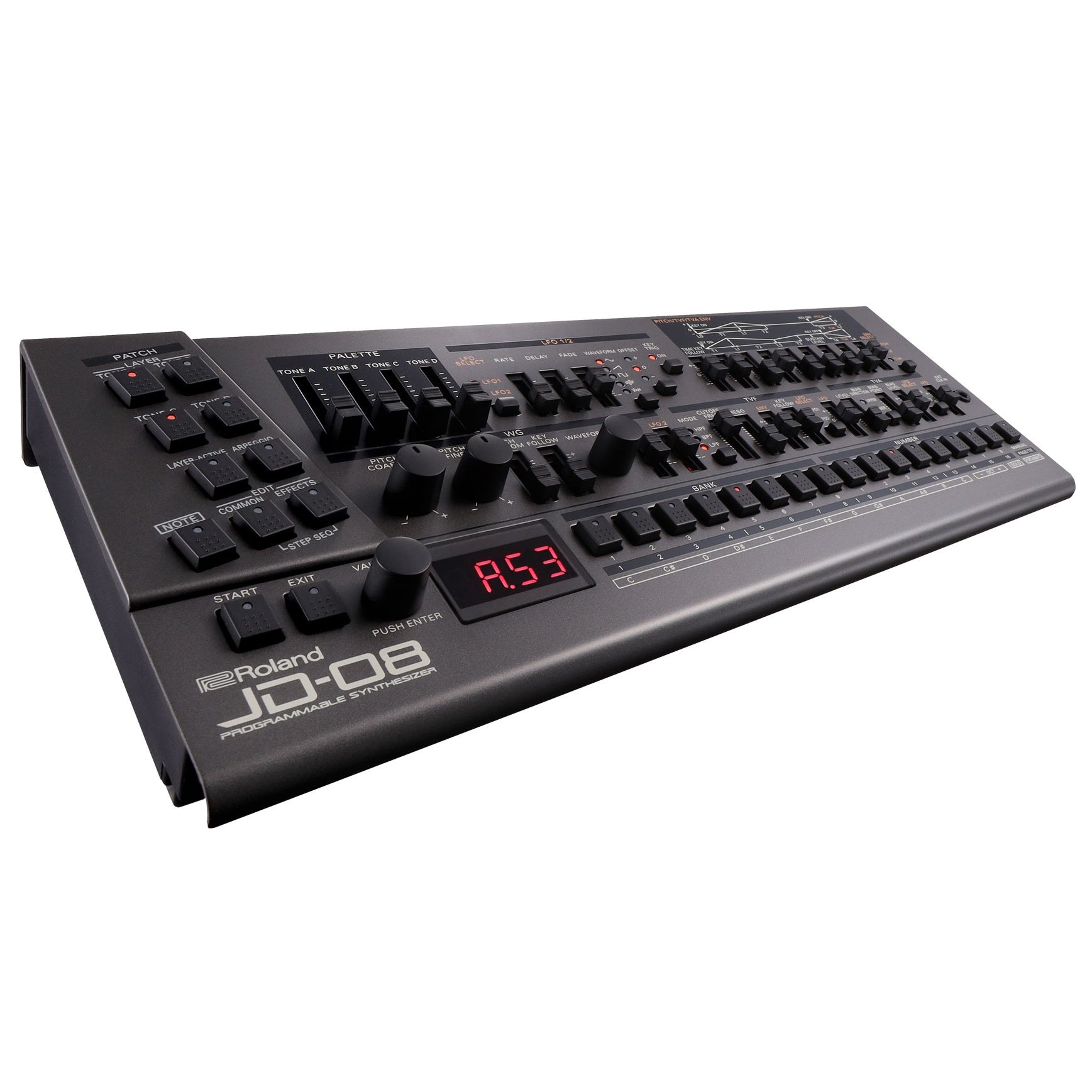

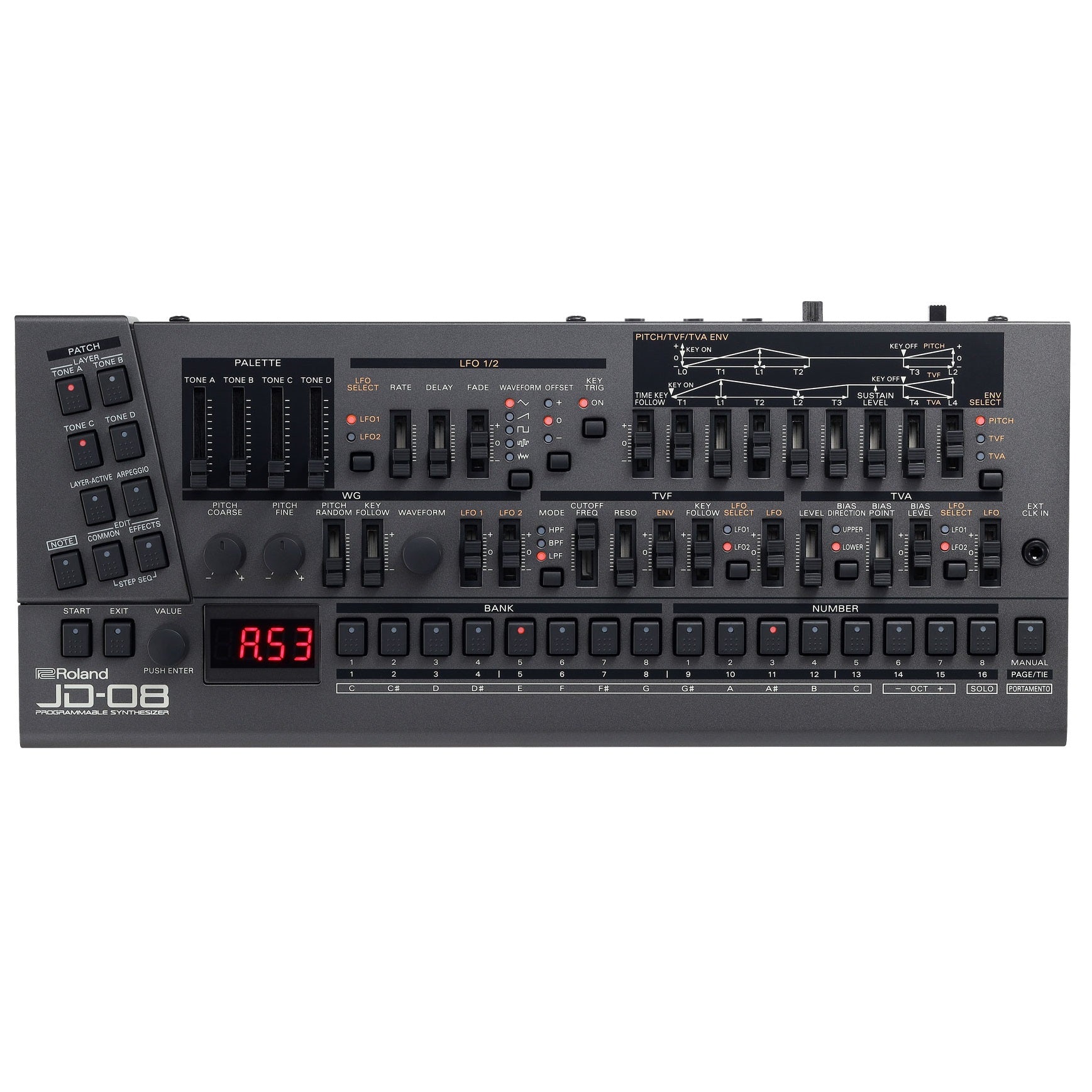

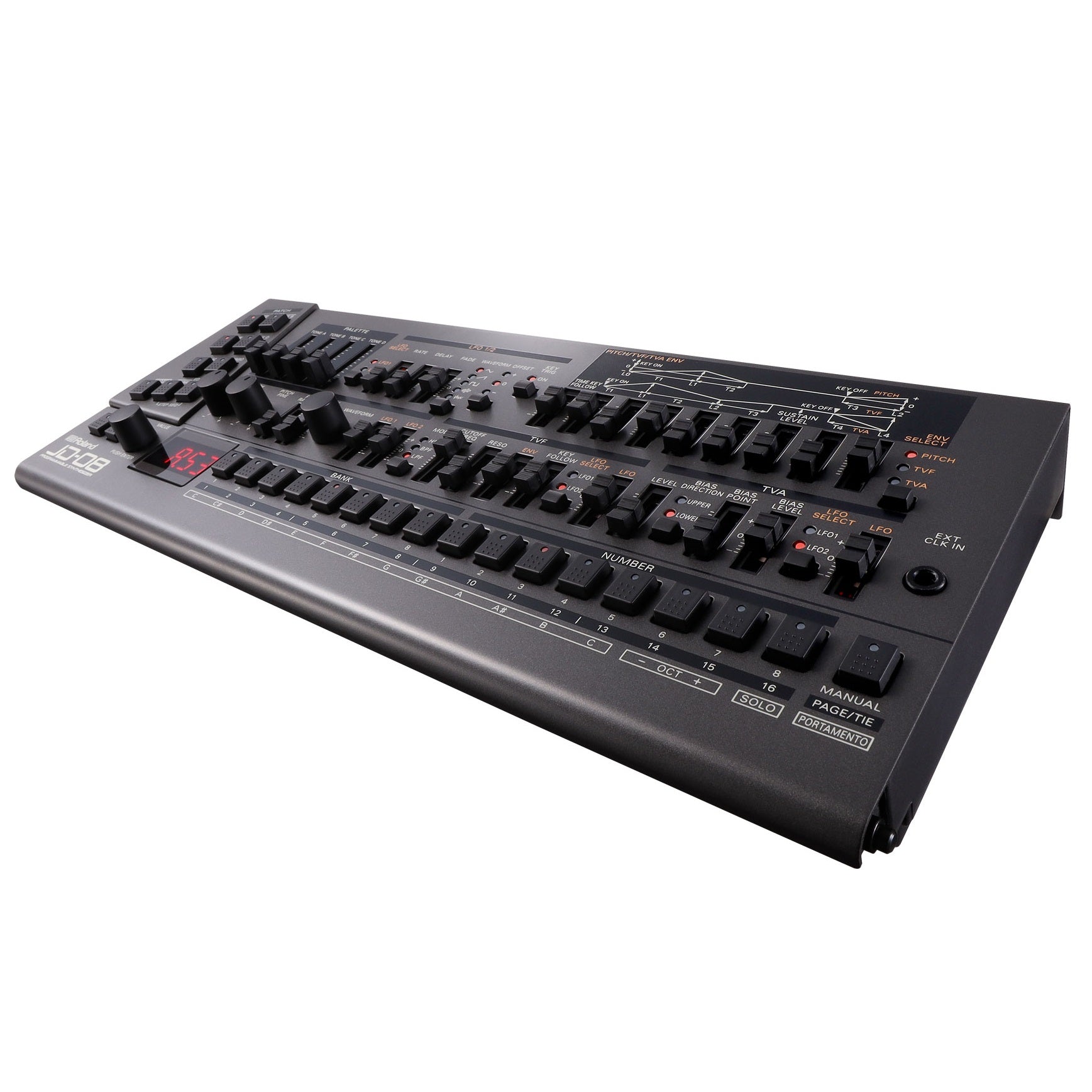

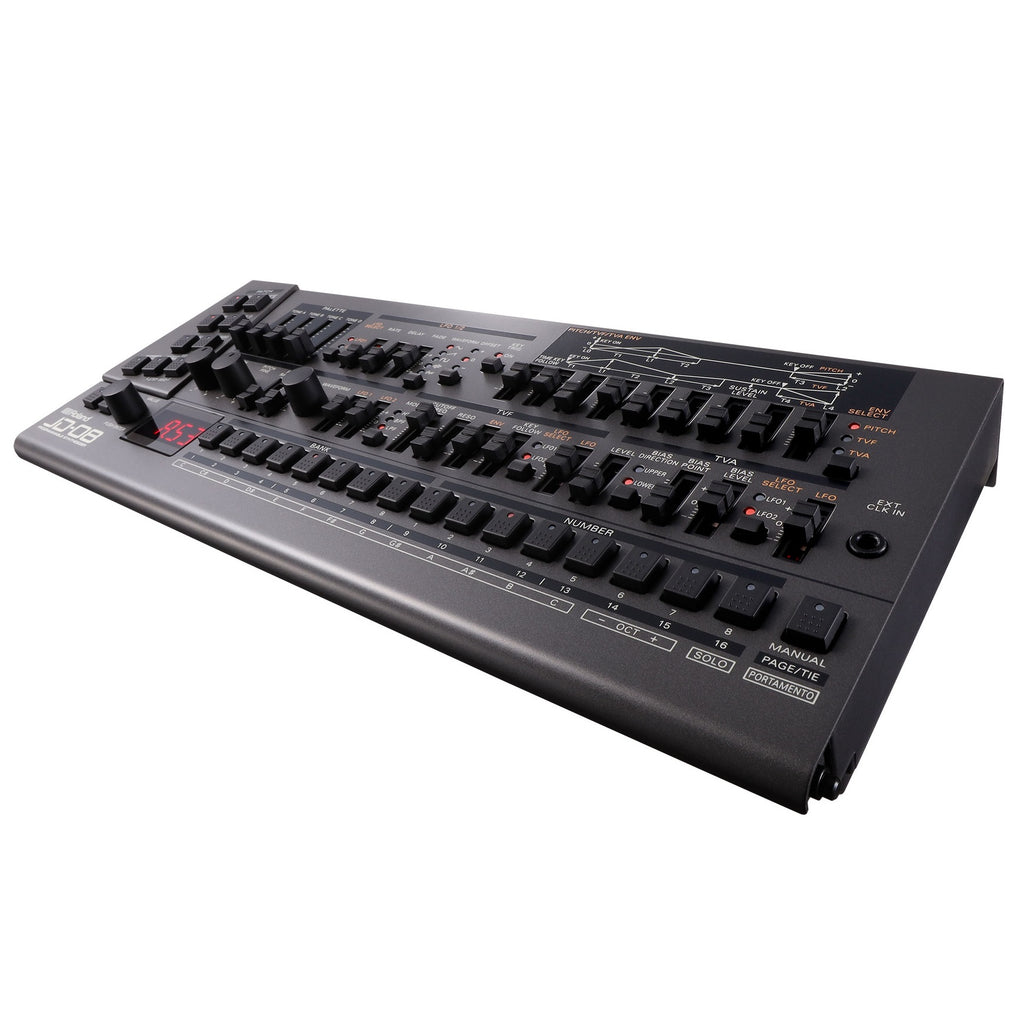

Used Roland JD-08 Programmable Synthesizer Sound Module

Mint, all original packaging, as new

Digital classic. Modern flair.

With its retro workflow, evocative sounds, and powerful effects, the JD-800 was a favorite for top electronic music producers through the '90s and beyond. Combining the original JD-800 waveforms with advanced modeling techniques, the JD-08 delivers the exquisite hands-on sound design of the original, along with hugely expanded polyphony, a two-part polyphonic sequencer, and other modern updates.

Inspiring sound design at your fingertips. The JD-800 changed the game in 1991, bringing the synthesizer world back to its roots with a control-laden panel and an aggressively electronic sound palette. The JD-08 includes 64 presets from the original hardware and perfectly recreates the four-tone structure, 108 waveforms, and unique two-part multi-effects at the core of the JD-800's intricate, evolving sound.

Expanded sound for the modern age. New patches plus 256 memory locations let you dive deep into the huge array of controls to create new sounds. With expanded polyphony and two-part multitimbral capability, there's even more room to stretch out your sonic ideas.

Music that moves. Fire up the two-part polyphonic sequencer and start programming leads, basslines, or basic chords to sync with other pieces in your electronic ensemble. Tap into motion recording and the onboard arpeggiator to make your musical lines dance.

MIDI, USB, and external clock input. The JD-08 features a built-in USB-C audio/MIDI interface. Full-size MIDI I/O is available for interfacing with other MIDI hardware, and there's an external clock input for driving the onboard sequencer and arpeggiator from vintage analog instruments and modern Eurorack systems.

Grab your keys. Hit the road. The compact JD-08 fits just about anywhere and is easily controlled from a master keyboard or computer DAW. It runs on standard AA batteries for hours of jamming and has a built-in speaker for on-the-go monitoring. Add a DK-01 Boutique Dock or a K-25m Keyboard Unit to create a fully self-contained, portable instrument.

User Memory: 256 sound patches, 128 patterns

Effects: Distortion, Phaser, Spectrum, Enhancer, Delay, Chorus, Reverb

Step Sequencer: 2 part, 64 steps, 8 notes per part (polyphonic)

Display: 7 segments, 4 characters (LED)

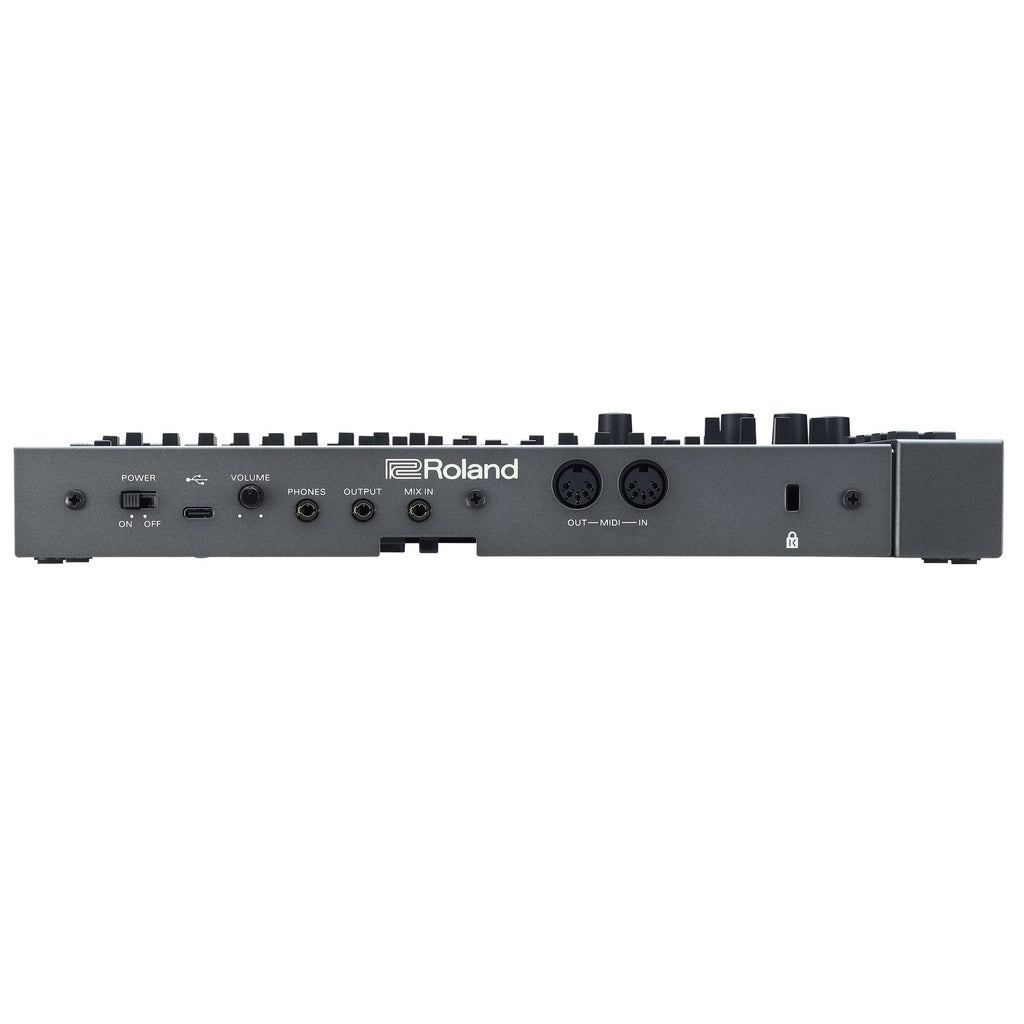

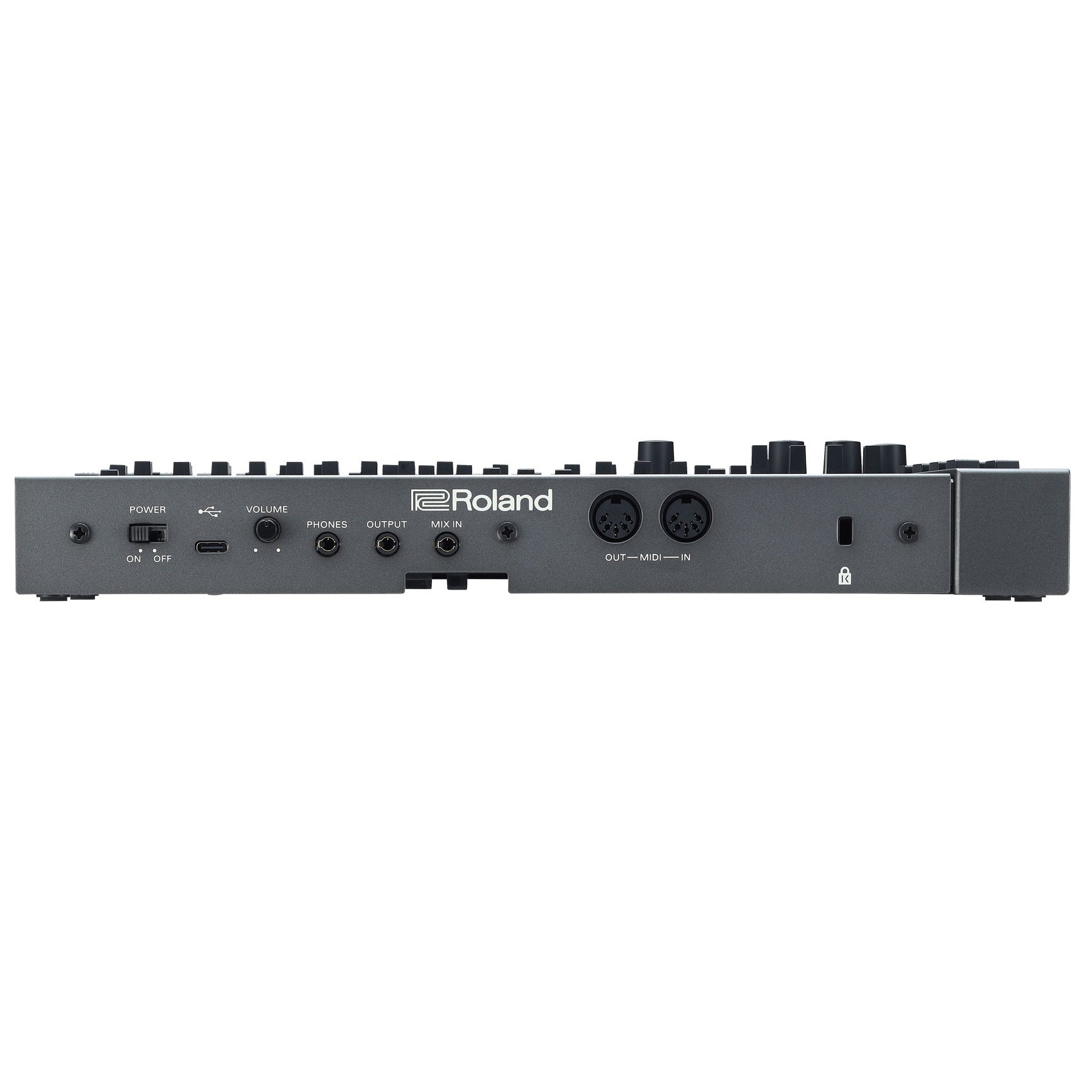

Connectors: EXT CLOCK IN: Mono miniature phone type; PHONES: Stereo miniature phone type; OUTPUT: Stereo miniature phone type; MIX IN: Stereo miniature phone type; MIDI (IN, OUT) connectors; USB port: USB Type-C (Audio, MIDI)

Power Supply: Ni-MH battery (AA, HR6) x 4 or Alkaline battery (AA, LR6) x 4; USB bus power

Current Draw: 500 mA (USB bus power)

Battery life (continuous use): Ni-MH approx. 6 hours (1,900 mAh batteries)

Accessories: Quick Start, "Using the Unit Safely" leaflet, Alkaline battery (AA, LR6) x 4

Options (sold separately): K-25m Keyboard Unit, DK-01 Boutique Dock

Size: 300 (W) x 128 (D) x 49 (H) mm

Weight (including batteries): 840 g (1 lb 14 oz)
