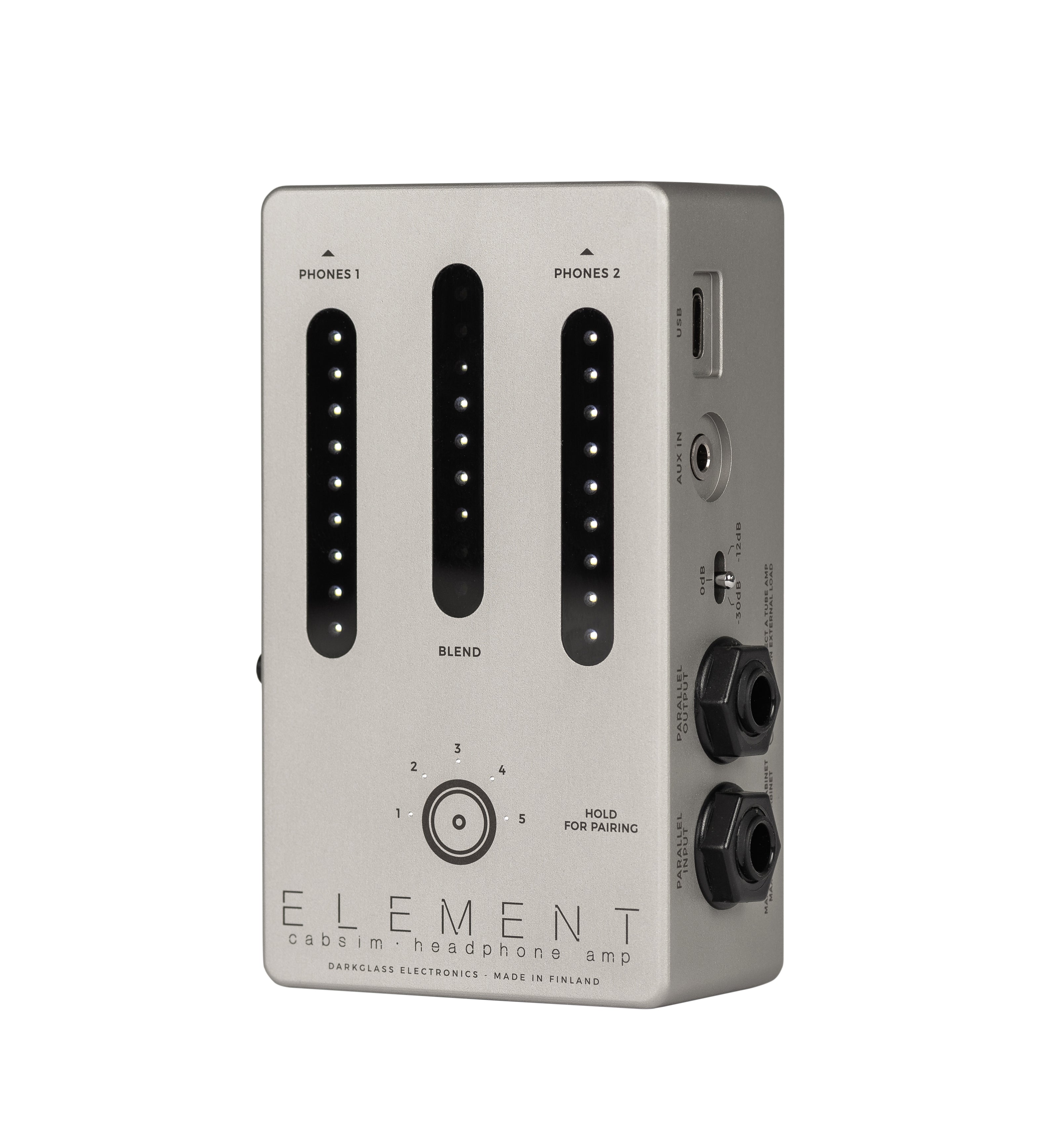

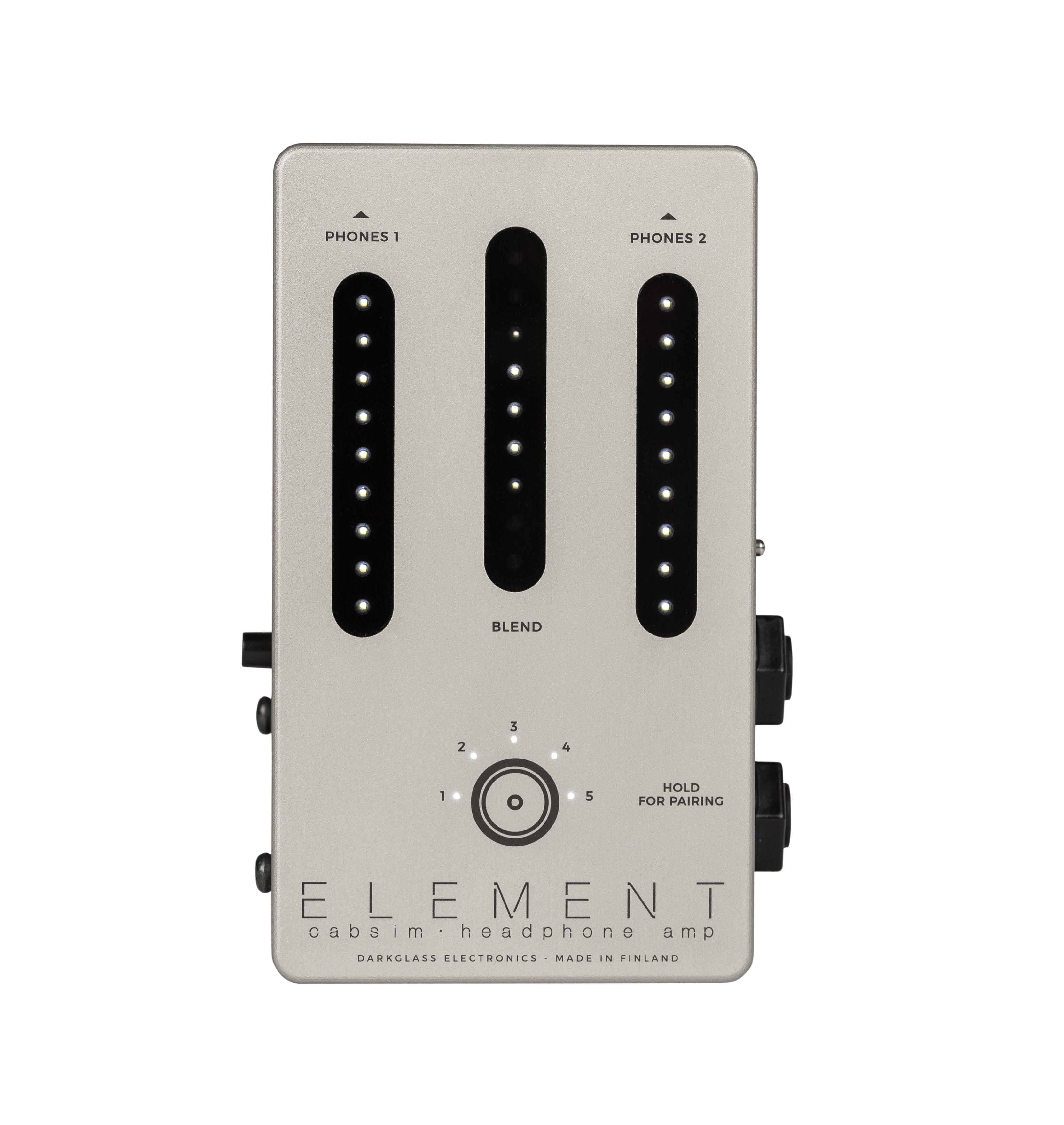

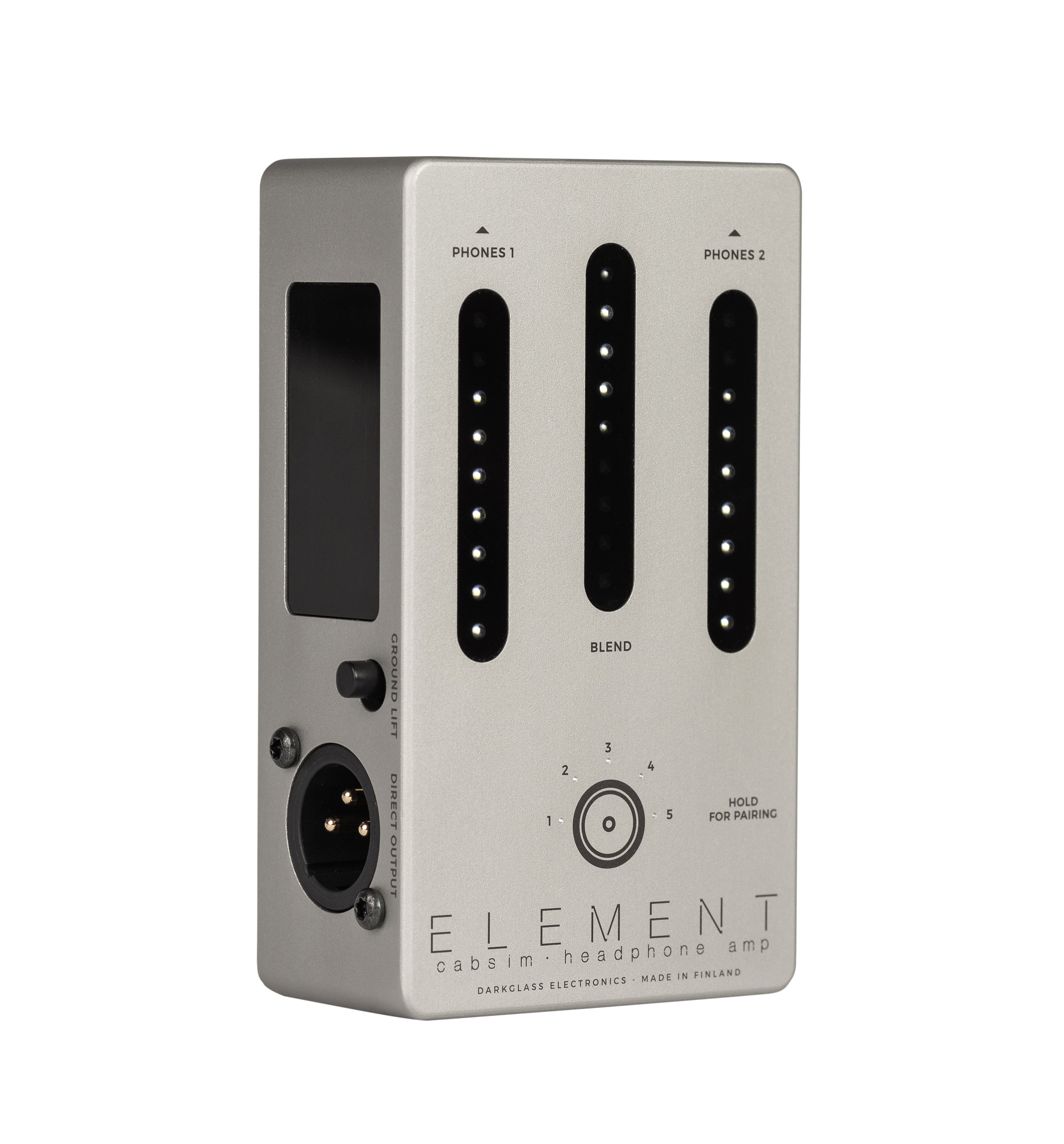

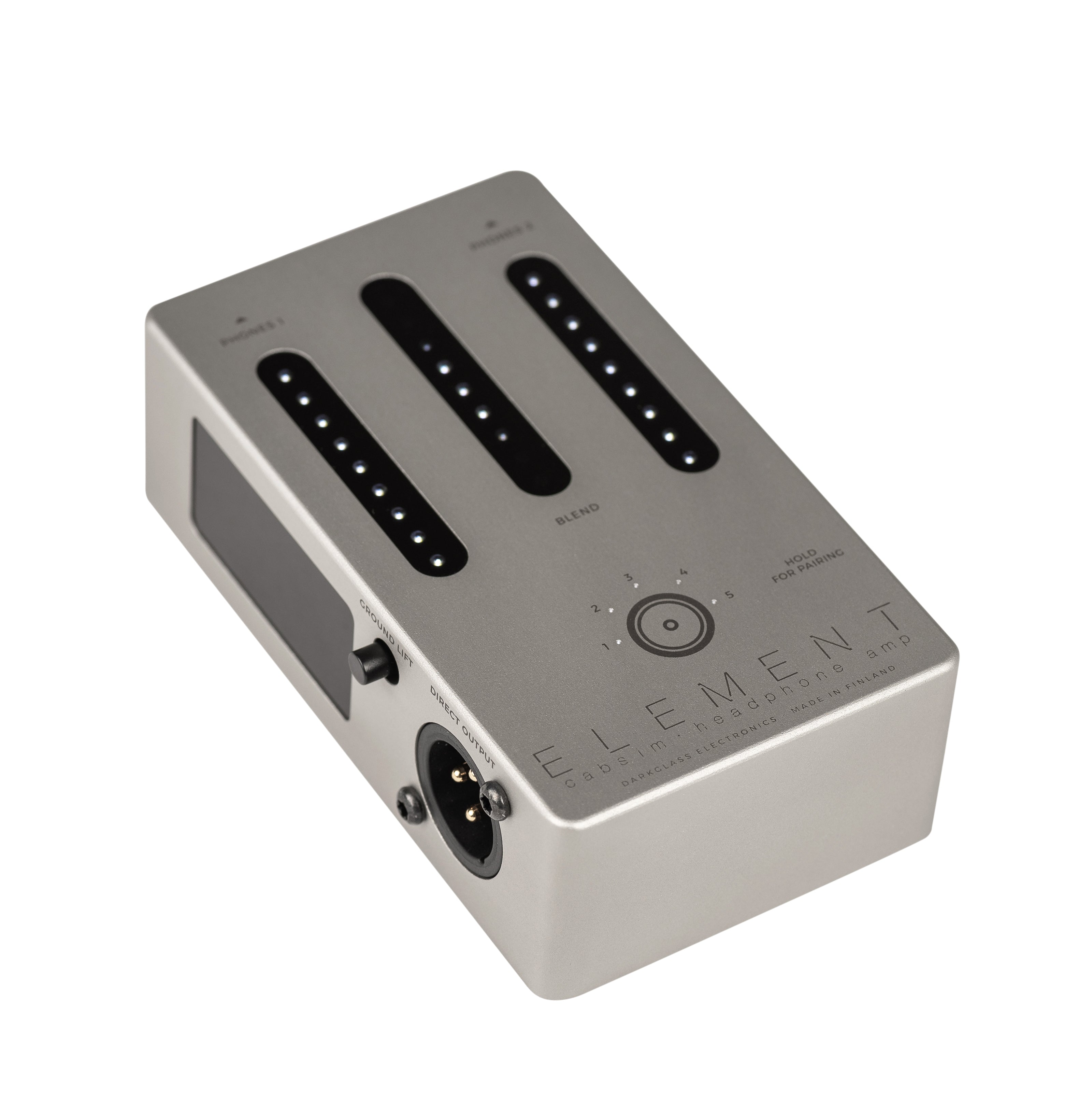

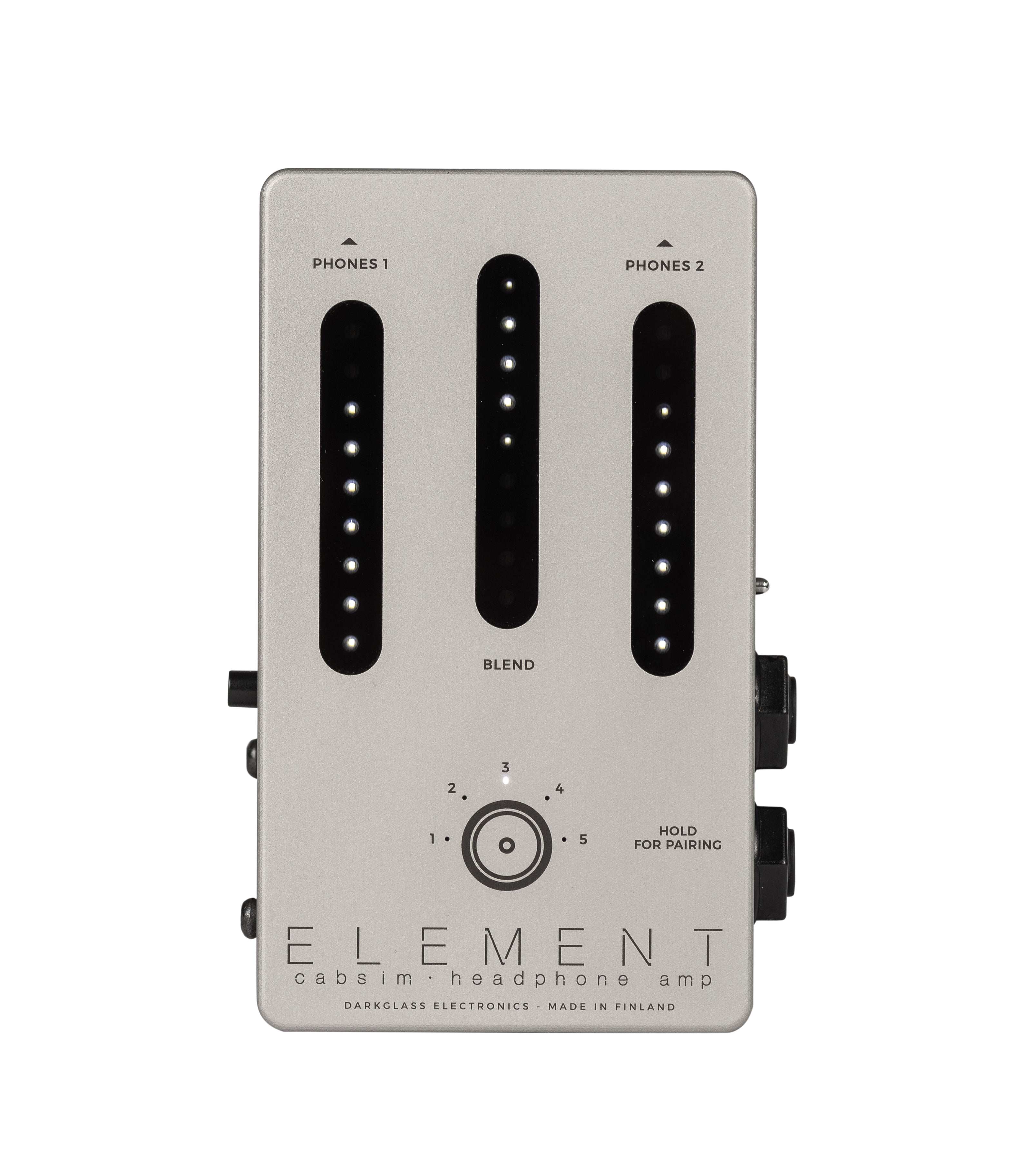

Used Darkglass Element Headphone Amp Cab Simulator Bass Guitar Effects Pedal

Mint, all original packaging, as new

One comprehensive device that, out of the box, offers a bank of 5 cabinet simulations and the ability to change them through the Darkglass Suite, Bluetooth technology to listen to backing tracks while playing, rehearsing, or studying. Two headphone outputs allow interaction among musicians. An XLR output connects the Element to your audio interface or PA system. With a uniquely innovative approach, the Element provides in one device an immensely practical tool to empower modern musicians.

Element with your pedalboard
Connect your instrument to your pedalboard as you normally would and add the Element at the end of the signal chain using the input labelled "INSTRUMENT IN." Choose the impulse response from slots 1-5 or the bypass signal. The signal is passed through to the XLR output and via the blend and volume controls to the headphone outputs.

Element with your amplifier and speaker cabinet
Note: The Element does NOT act as a loadbox! Always make sure your amplifier is connected to a suitable load. The Element is built to work with amplifiers with a maximum output of 900 Watts. For the safest operation it is advised to connect the Element after your speaker cabinet from your cabinet's parallel output connector, using the input labelled "AMP IN." If the amplifier's output is a maximum of 100 Watts, the Element can be connected between the amplifier and the speaker cabinet using "AMP IN" and "SPEAKER OUT."

Features:

• Phones — Two touch sensitive volume control sliders, one for each headphone output.
• Blend — A touch sensitive slider to set the blend between the main input (Instrument/Amp in) and the backing track (Bluetooth/Aux in) for the headphone out mix.
• USB — One USB-C port for transferring impulse responses and firmware updates.
• Aux In — Connect the line/headphone out of your laptop/keyboard/mixer into the 3.5 mm aux input.

Dimensions: Width 64 mm (2.95 in) | Height 111 mm (4.37 in) | Depth 35 mm (1.77 in)

The Element has a current draw of 250mA. Only use a regulated 9V DC adapter with a center-negative plug. NEVER connect an amplifier to AMP IN simultaneously with an instrument to INSTRUMENT IN.
