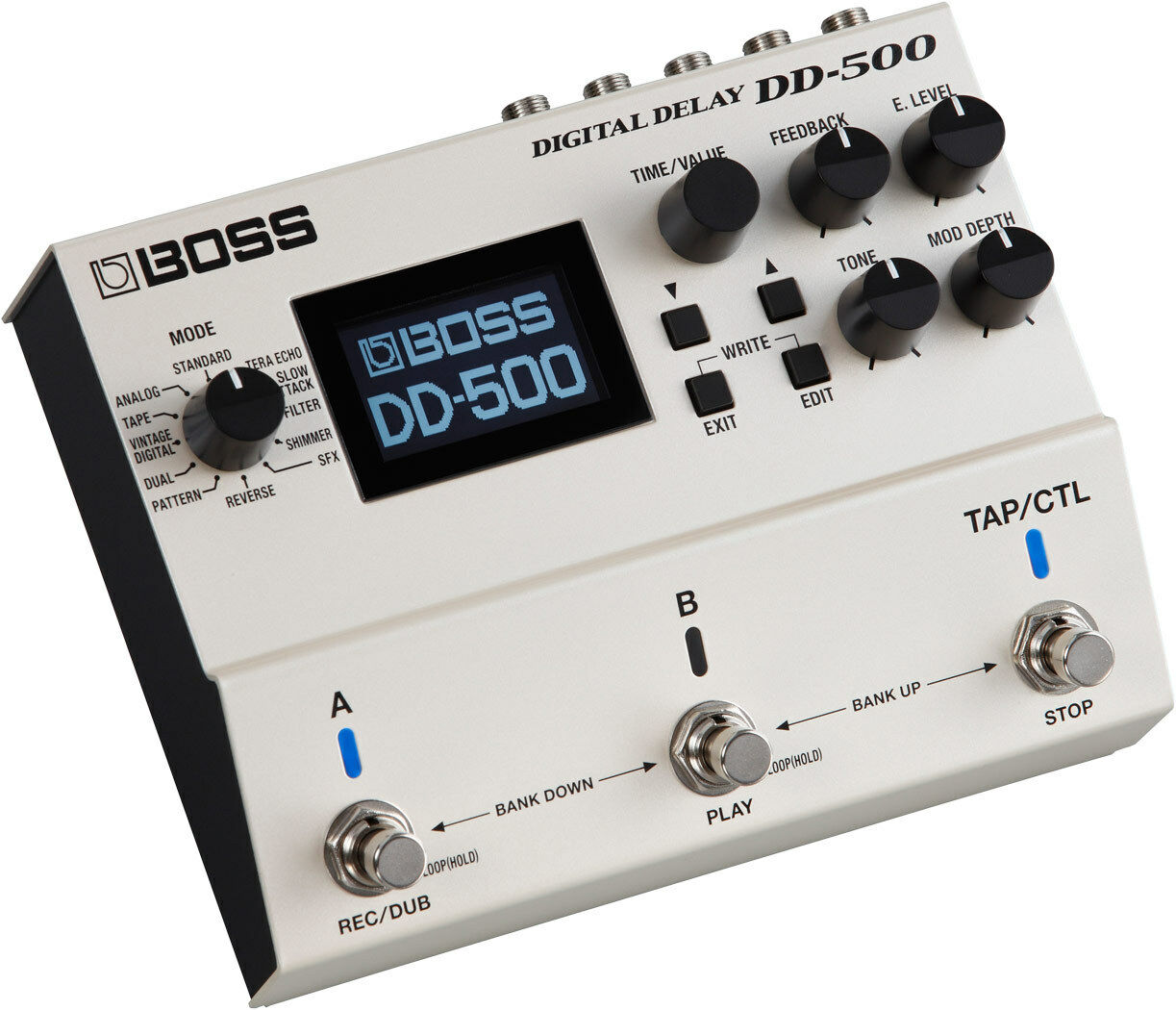

Boss DD-500 Digital Delay pedal - white enclosure, top angled view

Used Boss DD-500 Delay Guitar Effects Pedal

$361.99 USD
Sale price  $361.99 USD Regular price
Skip to product information
Boss DD-500 Digital Delay pedal - white enclosure, top angled view

Used Boss DD-500 Delay Guitar Effects Pedal

$361.99 USD
Sale price  $361.99 USD Regular price

CONDITION: Used

Mint, all original packaging, as new

Masterful Sound, Extraordinary Creative Power

Filled with newly developed BOSS technology, the DD-500 is the most powerful and versatile stompbox delay ever created. This incredible sound-creation toolbox offers 12 distinctive delay modes with exceptional audio quality, plus deep editing controls, a graphic display, patch memories, MIDI, and much more. From basic echo to dead-on emulations of classic delays to incredibly lush spatial textures that take your breath away, the DD-500 will launch your music places you never thought possible.

DD-500 Version 2 Software: New and Improved Control Parameters, Routing Options, and Effects for Increased Performance Flexibility

The feature-packed Version 2 software update brings powerful new performance enhancements and unparalleled flexibility to the DD-500. Even more control has been added, with an improved A/B simultaneous mode for advanced routing as well as new Series and Parallel modes. Five new effect types have been added to the current delay algorithms, plus many updated parameters common to all modes. The update also offers lots of user-requested features, including additional MIDI controls, new modulation types, a feedback loop function for inserting external effects, adjustable input and output levels, selectable EQ position, and more.

Features:

  • Studio-level sound with class-leading 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
  • 12 versatile delay modes from vintage to modern deliver unlimited creative possibilities
  • Unrivaled real-time expression with customizable control settings for onboard and external switches
  • Graphic LCD for easy, intuitive operation while performing and editing
  • Onboard patch memories and hands-on controls
  • Equipped with a built-in Phrase Looper, MIDI, USB, and more
  • Selectable buffered-bypass or true-bypass operation
  • Runs on four AA-size batteries or PSA-series AC adapter
  • Dedicated editor software available

DD-500 Version 2 Software Newly Added Features:

  • Improved A/B Simul mode with more flexible control and input/output options
  • Five newly added effects, including vintage Binson Echorec 2, touch-responsive filter delay, and more
  • Additional detailed tone-editing parameters such as feedback damp and modulation mode
  • More flexible routing options with the new Insert Loop function, selectable EQ insertion position, expanded independent delay connection modes, and more
  • Enhanced effects with extended parameters and sound quality refinements, including stereo pitch shifters and overtone effects for Shimmer mode, effect targets for Slow Attack mode, and more
Specifications

Type: Digital delay stompbox with 12 delay modes

Delay Modes: Standard, Analog, Tape, Vintage Digital, Dual, Pattern, Reverse, Tera Echo, Slow Attack, Filter, Shimmer, SFX

Sampling Frequency: 96 kHz; AD/DA Conversion: 32-bit; Processing: 32-bit floating point

Maximum Delay Time: 10 sec (depends on delay mode)

Phrase Loop: 60 sec (96 kHz/mono, 48 kHz/stereo), 120 sec (48 kHz/mono); delay can be applied

Patches: 198 (99 banks x 2 [A][B]), 297 (99 banks x 3 [A][B][C])

Footswitches: 3 [A][B][TAP/CTL]

Display: Graphic LCD (128 x 64 dots, backlit)

Nominal Input Level: -10 dBu (INPUT A/MONO, B); Input Impedance: 1 M ohm

Nominal Output Level: -10 dBu (OUTPUT A/MONO, B); Output Impedance: 2 k ohms

Bypass: Buffered bypass or True bypass (selectable, with relays)

Connectors: INPUT A/MONO, B (1/4" phone); OUTPUT A/MONO, B (1/4" phone); CTL 1,2/EXP (1/4" TRS phone); USB COMPUTER (USB Type B, USB-MIDI); MIDI IN/OUT; DC IN

Power Supply: Alkaline battery (AA, LR6) x 4 or AC adaptor (PSA series); Current Draw: 200 mA

Expected Battery Life (continuous, alkaline): approx. 7 hours

Dimensions: 6.75" x 5.4" x 2.5" (170mm x 138mm x 62mm)

Weight: 2 lbs 4 oz (1.0 kg, including battery)
