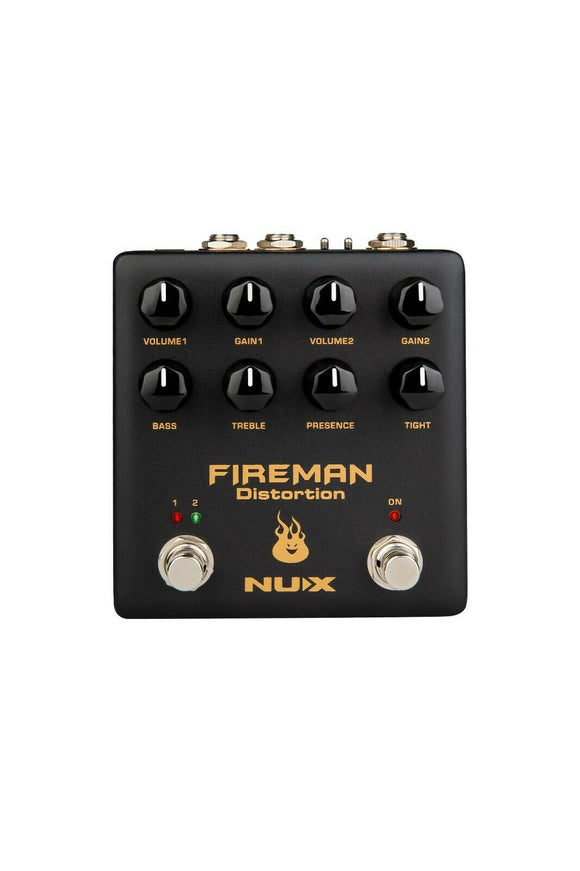

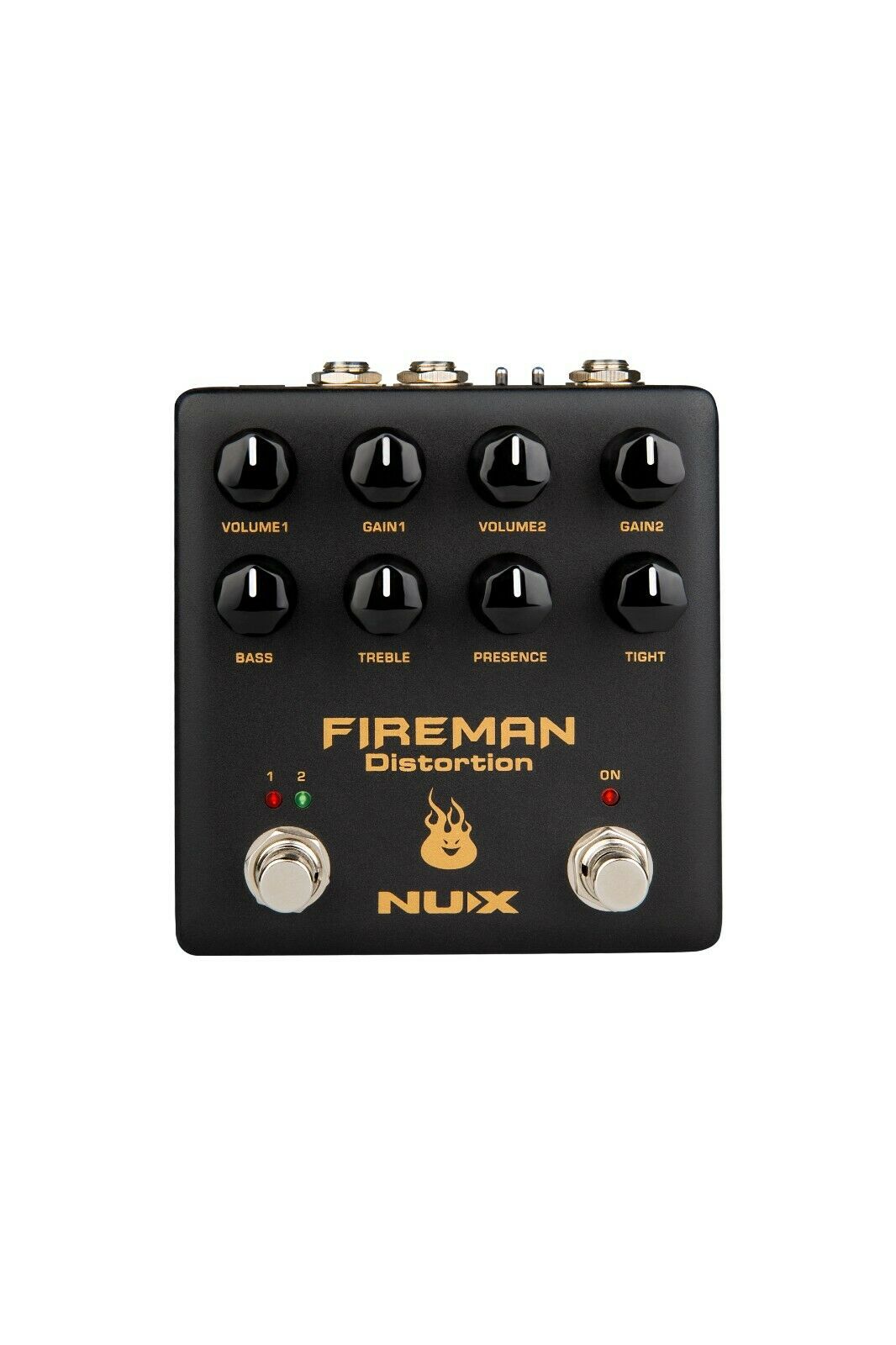

Open Box NUX Fireman NDS-5 Distortion Guitar Effects Pedal

Open Box NUX Fireman NDS-5 Distortion Guitar Effects Pedal

  • $99.00
    Unit price per

Only 2 left!

This item is open box, in mint condition!

FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp-like distortion pedal with Modern Brown Sound. NUX designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch, and a 9V / 18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range.


  • BASS: Adjusts the low-end response of distortion sound.

  • TREBLE: Adjusts the high-end response of distortion sound.

  • PRESENCE: Adjusts the ultra-high-end frequency of distortion sound.

  • TIGHT: Shapes the low frequency content. ( Turn it down to tighten the sound.)

  • VOLUME1: Adjusts the output level while in Channel1.


  • INPUT: Connects with your guitar or the signal from guitar side.

  • OUTPUT: Connects with the amplifier or to the amp side.

  • EXT. SW: Connects with TRS dual foot-switches to replace the 2 foot-switches function on the pedal.

  • BF/TB Toggle Switch: BF means Buffer-bypass, TB means True-bypass.

  • 18V / 9V Toggle Switch: The pedal uses 9V power, you can choose 18V position to double the working voltage inside to get wider dynamic range.

  • DC Jack: Connects with 9V Negative Tip power with 100ma adaptor.


  • Modern Brown Sound in a box.

  • True-bypass / Buffer-bypass toggle switch.

  • 18V / 9V toggle switch to get different dynamic range.

  • 2 independent GAIN, VOLUME knobs for rhythm / solo application.

  • GAIN1: Adjusts the distortion situation of the sound while in Channel1.

  • VOLUME2: Adjusts the output level while in Channel2.

  • GAIN2: Adjusts the distortion range of the sound while in Channel2.

  • 1/2 Foot-switch: Chooses the current Channel for 1 or 2.

  • ON Foot-switch: Engages or disengages the distortion sound.


  • Frequency Response: 20Hz~20kHz-±1dB
  • Input Impedance: 2.2MΩ
  • Output Impedance: 1MΩ
  • Power Supply: 9V DC,Negative Tip(ACD-006A)
  • Dimensions: 105(L)×115(W)×58(H)mm
  • Weight: 460g
