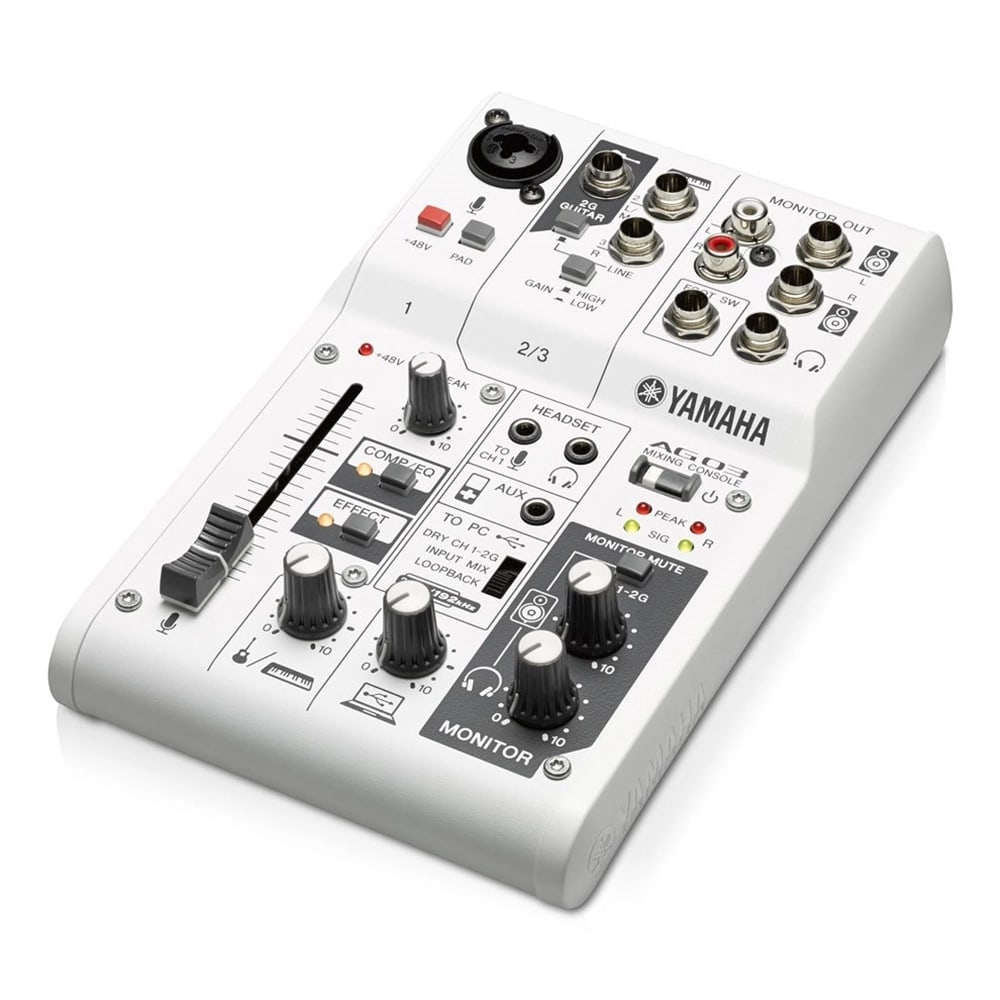

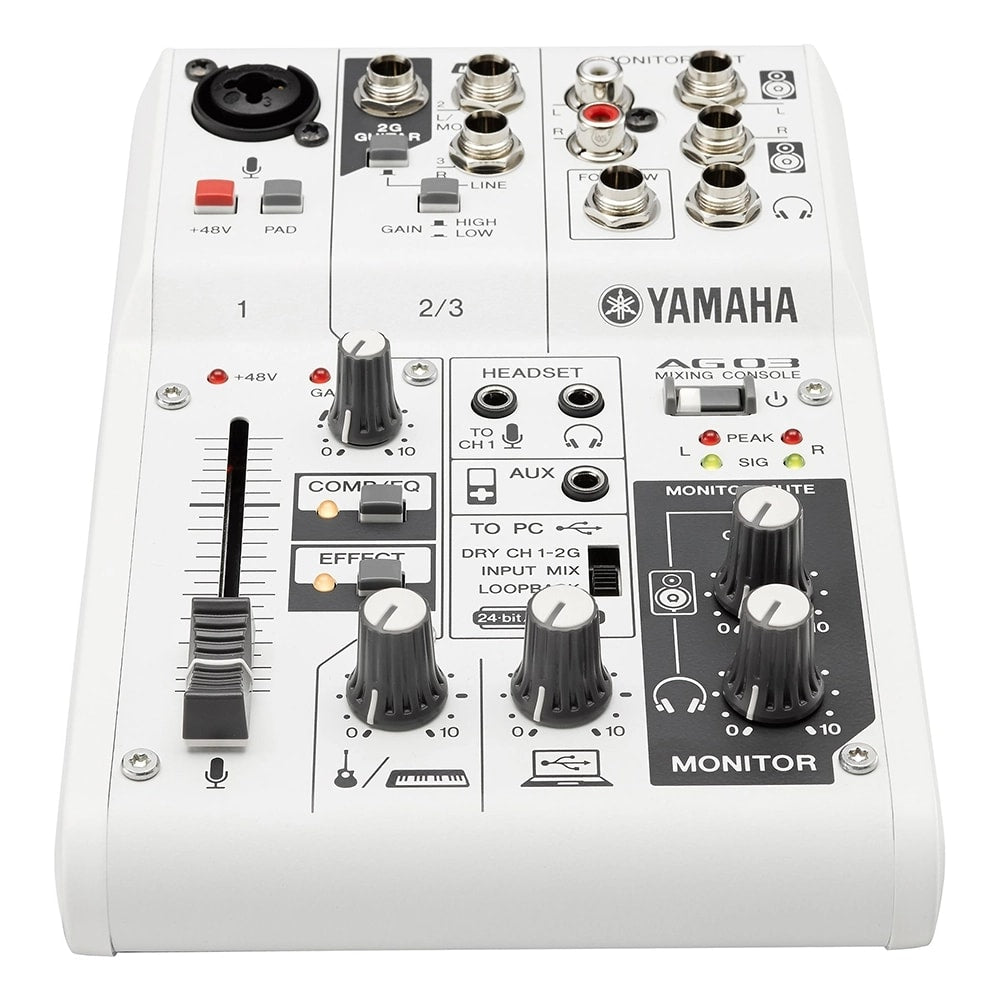

New Yamaha AG03 Multipurpose 3-Channel Mixer with USB Audio Interface

Transform your PC, Mac or even your iPad into a virtual radio station and spread your message to the world. With a surprisingly easy setup process, the AG lets you produce online content with high-resolution sound, either for real-time broadcast over digital streaming platforms such as YouTube Live, or for producing on-demand podcasts and videos. Your AG will elevate your production value considerably with background music, sound effects, and a level of sound quality that can't be matched with a conventional computer / headset configuration.

LOOPBACK function for internet live streaming
The LOOPBACK function enables live broadcasting of all the microphones, instruments and other audio sources along with background music from your PC / Mac or iPad.

Flexible connectivity
AG comes equipped with an input featuring phantom power as well as a headset input, giving you the option to use a professional condenser mic or a conventional computer headset.

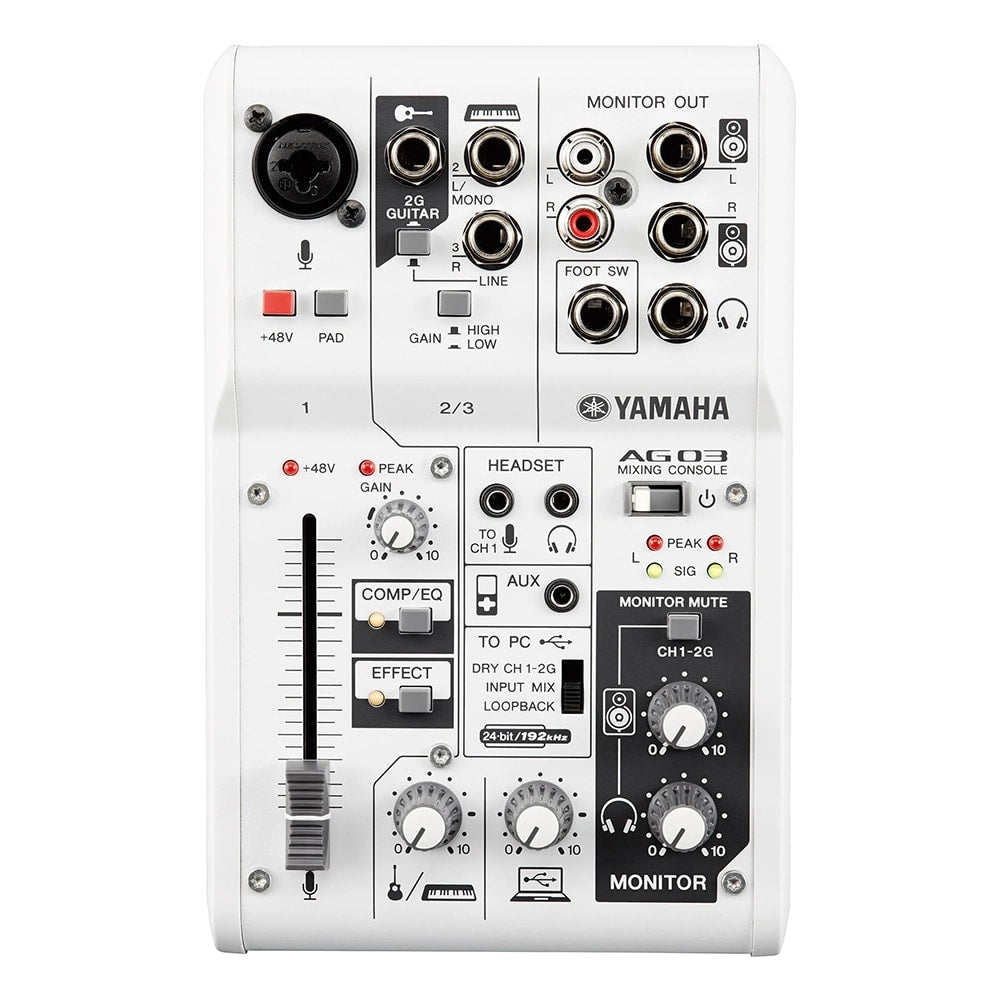

Control
The AG03 features volume knobs and a 60mm fader on the front panel for simple manual control of your voice, background music, and other audio content or sound effects.

1-TOUCH DSP
1-TOUCH COMP / EQ can add clarity and focus to your sound with the simple click of a button. Just like an authentic radio broadcast, you can add reverb with the 1-TOUCH EFFECT or sound effects from an external device at will. The multi-platform AG DSP Controller software app lets you access and edit the compressor, EQ, high-pass filter, reverb, and amp simulator parameters of your 1-TOUCH DSP, with EASY and EXPERT modes.

High resolution 192kHz / 24-bit playback and recording
AG's high-quality design enables 192kHz / 24-bit sound that reproduces even the most subtle nuances of your original recordings. With ASIO-compatible playback software you can bypass the internal kernel mixer and reproduce the original sound faithfully.

Mobile Music
By simply connecting a compatible iPad and a USB mobile battery, the AG becomes an ideal mobile audio interface for musicians and sound designers on the go, transforming your iPad into a mobile studio.

USB bus powered or mobile battery
The compact and durable AG can be operated using USB bus power or a mobile battery, giving you a powerful mobile setup that fits easily into a backpack.

D-PRE studio quality mic preamp
AG features the same premium mic preamps developed by Yamaha for high-end recording consoles, capturing the most detailed nuances of your vocal or instrumental performance.

Durable, compact metal chassis
The tough metal body of the AG is extremely portable and easy to place on a keyboard, on a guitar case, or even on a mic stand using an optional adapter.

Cubase AI Music Production Software
Cubase AI Digital Audio Workstation (DAW) software is included with your AG purchase (download), giving you a streamlined but powerful music production tool right out of the box.

Features

• Multipurpose 3-channel mixer with USB audio interface
• Flexible LOOPBACK feature, perfect for live recording or webcasting
• High resolution (24-bit / 192kHz) 2-track audio recording and playback
• D-PRE studio quality mic preamps with high gain and low noise
• Easy control and pro sound with 1-TOUCH COMP/EQ and EFFECT processing
• +48V phantom power on CH1 input for condenser mics and DI boxes
• Hi-Z input for guitars on CH2
• iPad (2 or later) connectivity via Apple iPad Camera Connection Kit (requires external USB power supply)
• USB bus powered for Mac & PC
• Rugged metal chassis
• Includes Cubase AI (downloadable version)

Specifications

• Type: Analog
• Channels: 3
• Mic Preamps: 1 x XLR/TRS Combo
• Line Inputs: 3 x 1/4"
• Other Inputs: 1 x 1/8" (Headset), 1 x 1/8" (Aux)
• Main Outputs: 2 x 1/4", 1 x stereo RCA
• Headphones: 1 x 1/4", 1 x 1/8" (Headset)
• Phantom Power: Channel 1
• Faders: 1 x 60mm

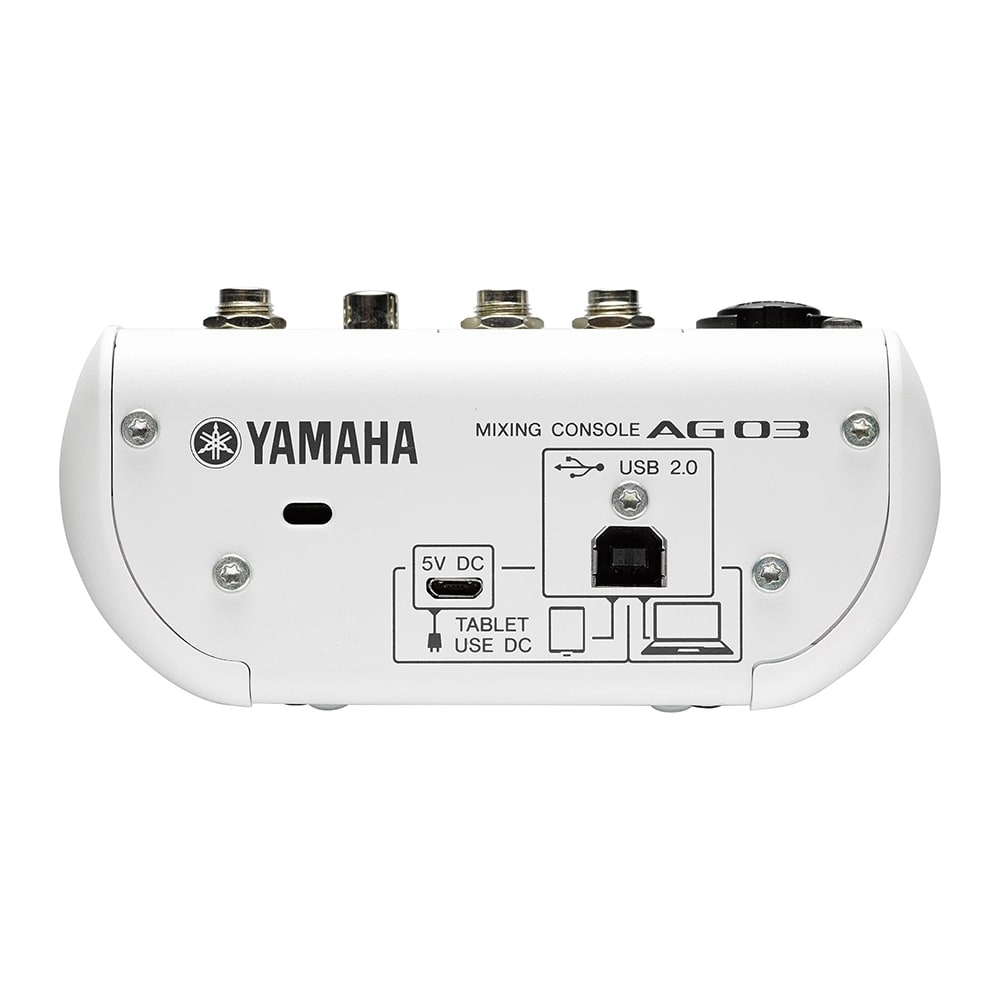

• Computer Connectivity: 1 x USB
• Dimensions: 2.5" H x 5.1" W x 8" D
• Weight: 1.8 lbs
