New Truetone 1 Spot Pro CS 11 Isolated Guitar Pedal Power Supply CS11

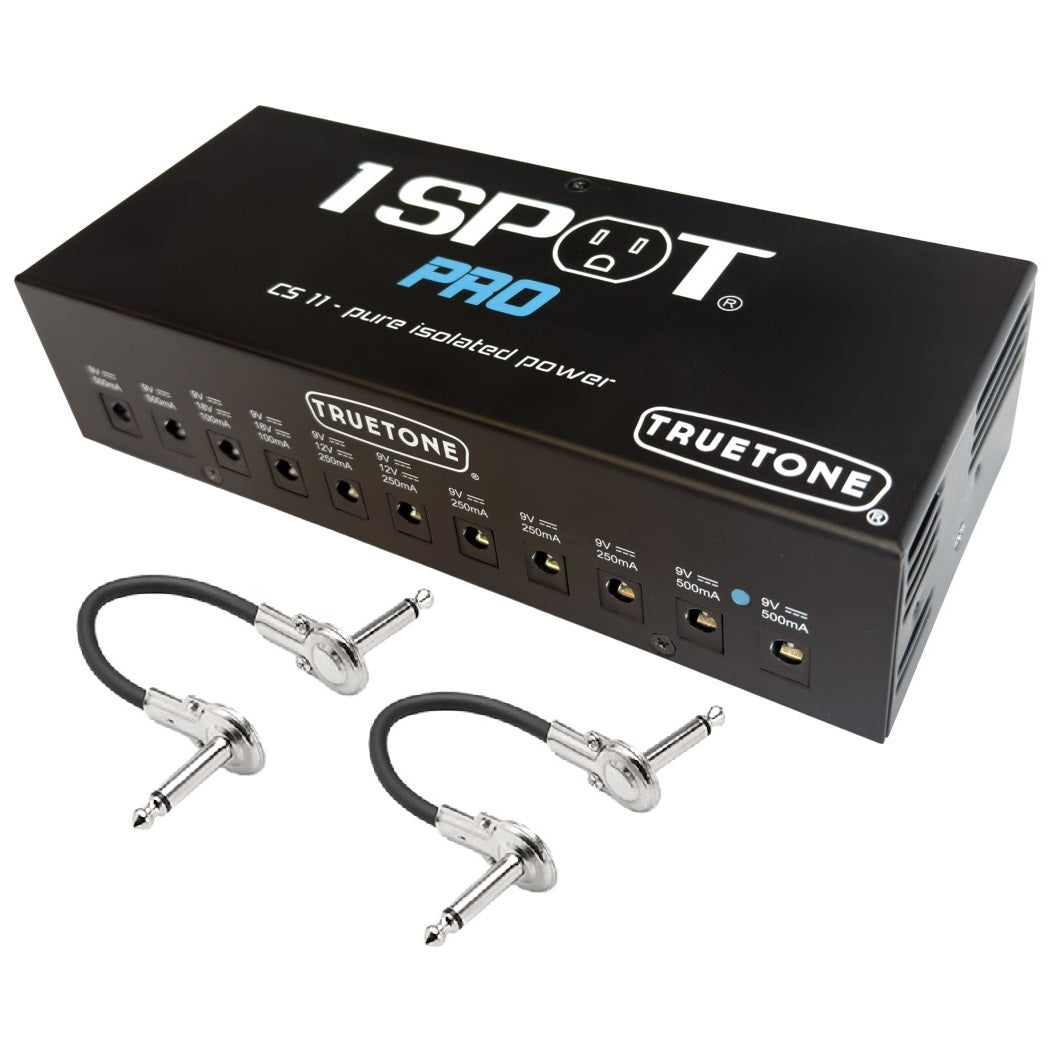

Includes two Hosa metal patch cables (IRG-100.5)

New Truetone 1 Spot Pro CS11 Isolated Guitar Pedal Power Supply

With your purchase you will also receive a generous assortment of power cables and converter plugs.

From Truetone:

-THIS ONE GOES TO 11!
-Quiet, powerful, dependable
-Includes brackets for mounting under Pedaltrain pedalboards

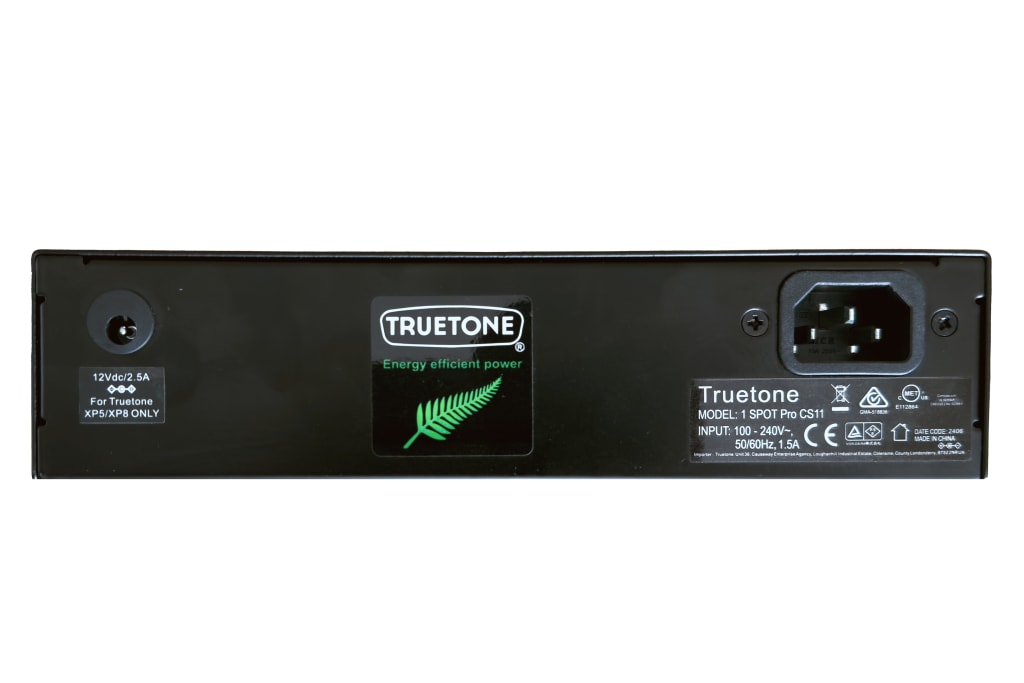

-Extra output on the back for powering Truetone expansion boxes
-Cables and converter plugs included
-Worldwide input voltage
-1 SPOT PRO: The original studio-grade power for your pedals

The 1 Spot Pro CS11 is the same size as the CS12, but with all new outputs and options. It doesn't replace the CS12, but gives users more power and more available 9Vdc outputs. It also has “one more” output on the back, which allows users to connect the CS11 to Truetone's new expansion boxes like the XP5 and XP8. It goes to 11… and so much more.

The 1 SPOT Pro Story
“A lot of people over the years had told us that we should make a power brick. Even some of my own staff urged me to do it, but I didn't want to for two reasons. First, I knew the 1 SPOT could power just about every pedal out there, so I didn't see the need. Second, I didn't want to make just another knock-off of someone else's power brick. If we were going to make one, we were going to do it our way and have features that nobody else could offer. As pedal designs changed and it became more common for digital pedals to require isolation and for others to need something other than 9Vdc, I finally saw a reason for us to design a power brick.”

“It took 3 years and lots of experimentation, but we were finally able to design a 1 SPOT Pro, using our own proprietary technology to give musicians all the features they need for today's pedalboards. The original 1 SPOT still works great for most musicians, but for those who need more power and versatility, the 1 SPOT Pro fills the need perfectly.” - Bob Weil (Founder & President - Truetone)

1 SPOT Technology
1 SPOT Technology… what does that mean and why should I care? Technically, it's switching power supply technology, which is very different than what anyone has ever put inside a power brick. Normally, you would find just a big transformer and a handful of small electronic components inside a power brick… old tech that hasn't changed in decades and has a lot of limitations. We took the same triple filtered switching power supply technology found in our famous 1 SPOT and scaled it up to make the 1 SPOT Pro models. With much more space to work with, we were able to completely eliminate noise, provide total electrical isolation between outputs, create multiple voltages, and still give you the ability to use it anywhere in the world.

A major benefit of using a switching power supply is that it can handle far more current (power being pulled out of it) than any transformer-based power supply. Although we had to put power rating labels on each output to satisfy certification agencies (yes, we actually certified these, unlike many companies), the outputs can generally handle far more than the label shows. For example, you can connect a 300mA pedal to a 200mA output, without causing any problems. With a transformer-based power supply, you can't get away with that. The important thing is to not exceed the total of all the labels.

Multiple Voltages (CS Series only)

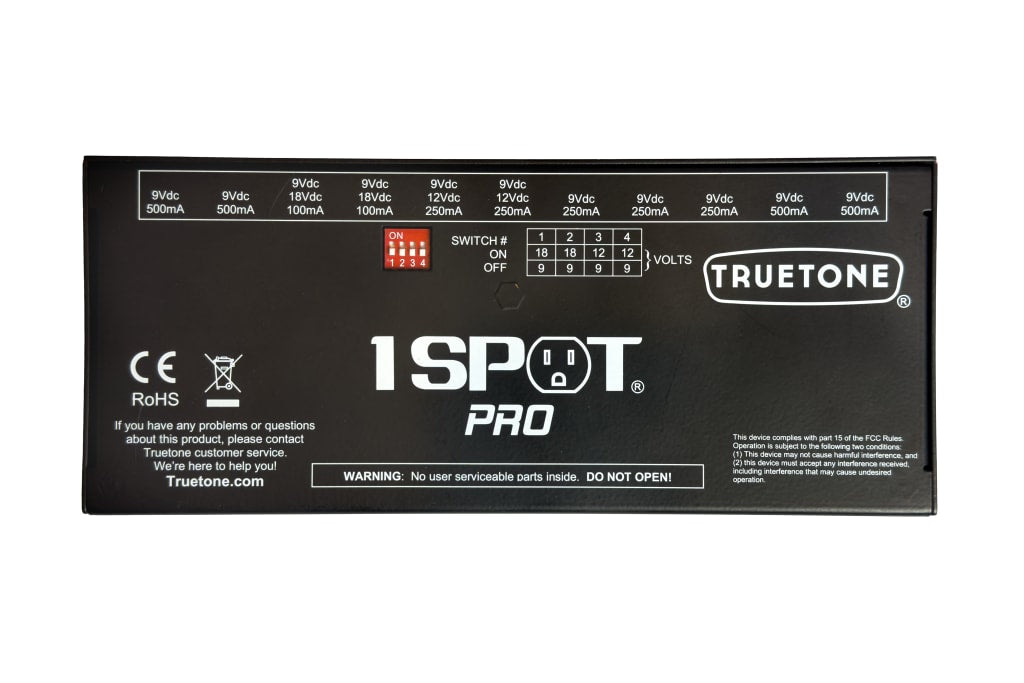

We recognize that not all guitar pedals run off 9V. That's why all 1 SPOT Pro models have outputs that can put out 9Vdc, 12Vdc or 18Vdc. And if you need to change the voltage of an output, Truetone also makes inexpensive converter cables to help you.

Worldwide input voltage
Just like with the original 1 SPOT, (and your laptop power supply and phone charger), the 1 SPOT Pro uses switching power supply technology which allows you to use it anywhere in the world. The 1 SPOT Pro won't leave you stranded at your first international gig!

Rugged Steel Housing
If you're a touring musician, or even if you just play at the local pub regularly, you know how important it is to have road-worthy gear. No worries with the 1 SPOT Pro. The housing is all steel, with cleverly designed vents that should keep out the accidental beer spill, should that ever happen.

Pure Isolation
Each output is galvanically isolated from the other to help give you pure, clean, noise-free operation of your pedals. However, we also provided an additional layer of pure analog regulation, taking advantage of the greater ability of analog circuits to provide the highest possible suppression of in-band audio noise. All of this put together is what we call Pure Isolation.

Dimensions
205 x 86 x 50mm (8.07 x 3.38 x 1.97”); 971 grams (2.14 lbs.) - weight and dimensions of power supply only, not including cables or packaging.

Input Voltage
The 1 SPOT Pro CS11 can be used anywhere in the world without the use of a step-up or step-down transformer. Like our 1 SPOT, it transforms wall voltage from 100-240Vac, and converts it into the stated voltages on the bottom of the unit.

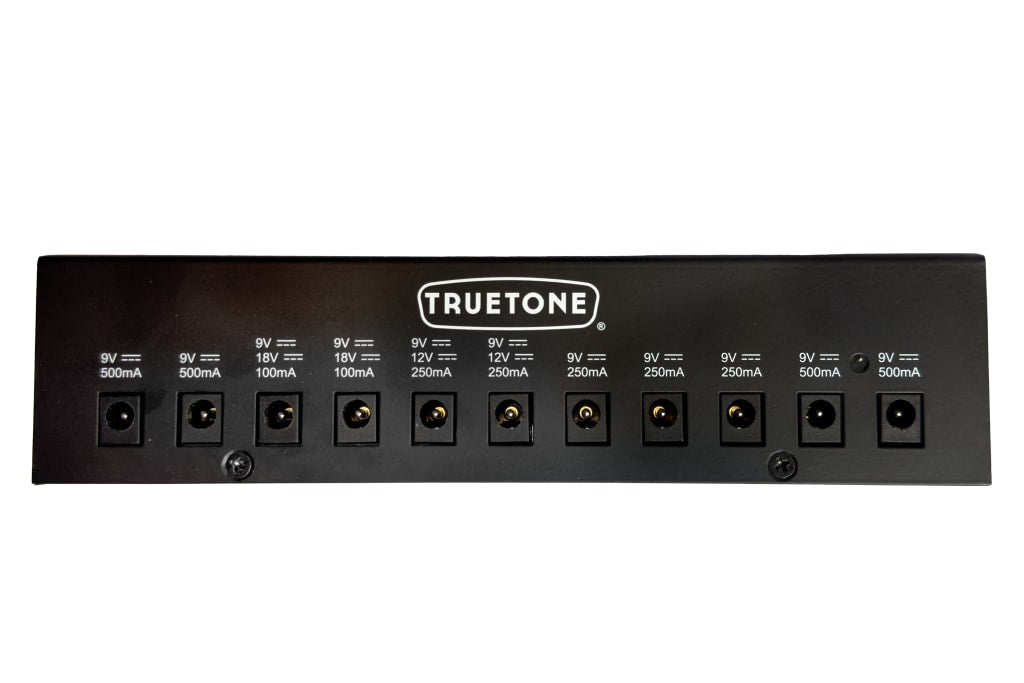

Available Output Voltages
Outputs 1-2, 10-11: 9VDC (500mA)
Outputs 3-4: 9VDC or 18VDC (100mA)
Outputs 5-6: 9VDC or 12VDC (250mA)
Outputs 7-9: 9VDC (250mA)
