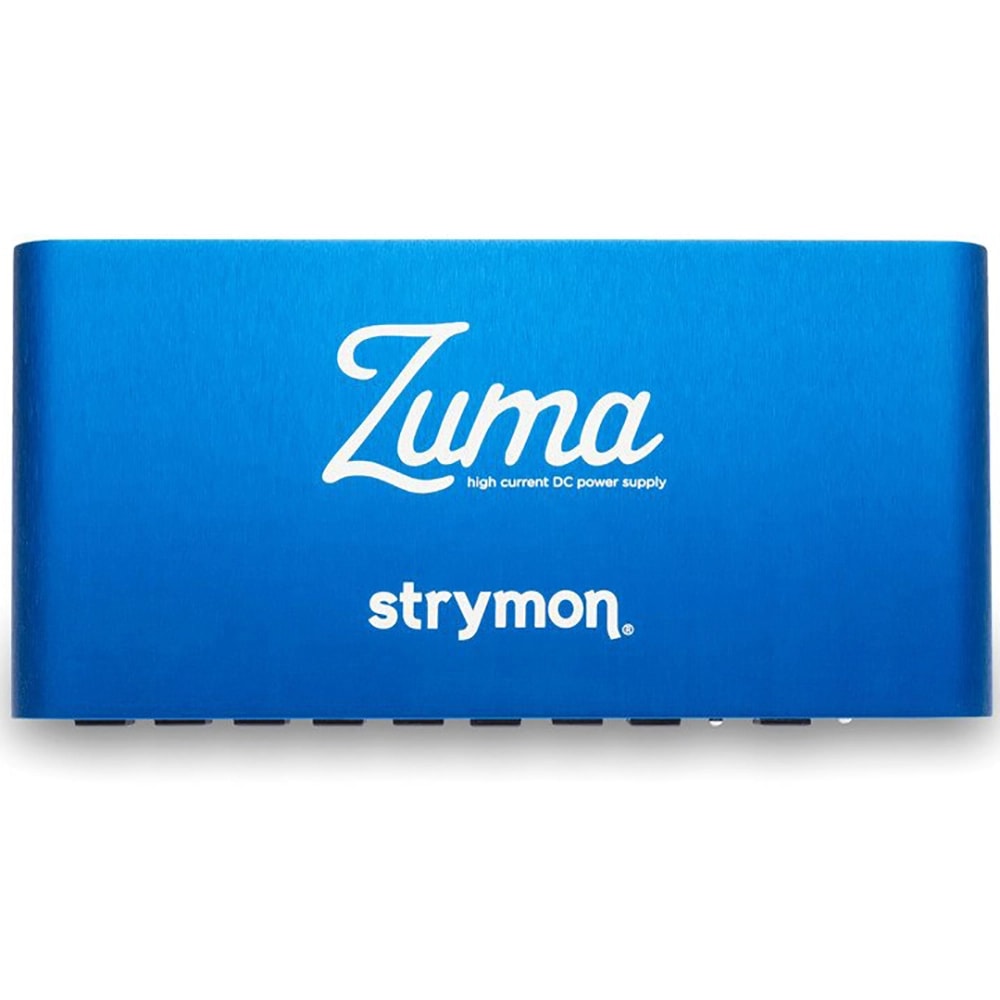

New Strymon Zuma 9-Output Guitar Pedal Power Supply

Includes 9 pedal cables (5.5mm x 2.1mm barrel, center negative) and a detachable IEC power cable.

Never worry about power again. Zuma is the highest horsepower, most technologically advanced effects pedal power supply of its kind. Zuma offers nine high-current, individually isolated, ultra-low-noise outputs — each with its own dedicated regulator and custom transformer. Designed to meet the needs of today's players, each output provides a staggering 500mA of current.

Zuma's dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.

Dual isolation. Zuma's all analog circuitry offers two stages of isolation. Each of the nine output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues. Zuma also provides dual power regulation: wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.

World tour ready. With automatic international power compatibility built-in (when connected with the appropriate IEC cable), Zuma delivers an abundance of clean, rock-steady power to all your pedals, on any stage anywhere you play. Whether you're on 120V, 240V, 100V, or any variation in between, Zuma delivers clean, reliable power even if the venue has dirty power.

Never run out of outputs. Zuma is part of an expandable, modular system. Add more outputs by connecting a Strymon Ojai (sold separately) with the 24V Out jack. Use Zuma by itself, or as part of a power distribution system that grows with your pedalboard.

Hear your pedals, not your power. Many popular guitar pedals were originally designed to work with batteries and were not designed to resist noise from power supplies. Our ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range.

12V and 18V Options. Two channels have selectable 9, 12, or 18V output voltages. Some analog pedals designed for 9V operation may provide higher output and/or more clean headroom at higher voltages, but always check with your pedal's manufacturer before operating above standard voltage.

Energy efficient. Significantly more efficient than linear power supplies, Zuma delivers substantially more current while handling a much wider range of input voltages, in a compact unit with a small carbon and pedalboard footprint.

Breakthrough Technology. With dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering, Strymon has designed a switching power supply that is actually quieter than linear units. Every Zuma unit goes through rigorous Audio Precision testing so your pedals sound the way they were designed to sound.

Ins & Outs:

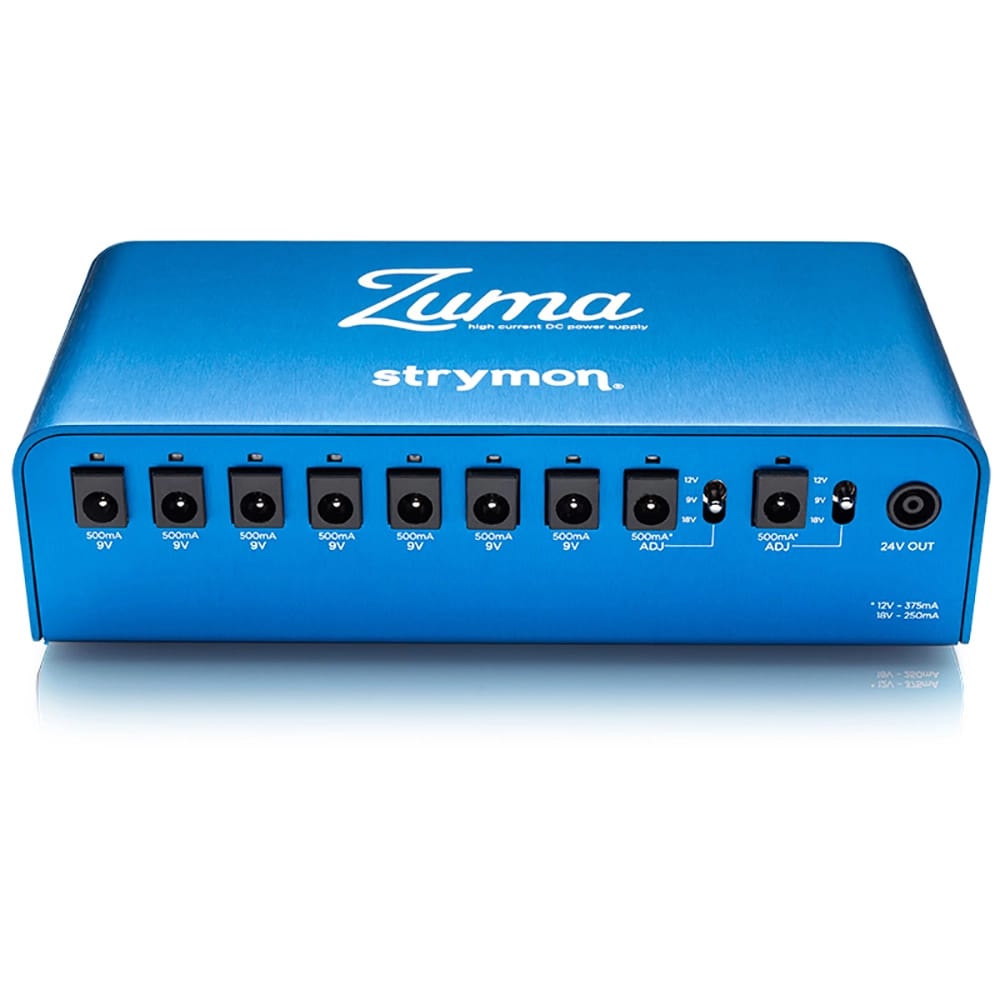

• 9 high-current, fully isolated outputs; all offer a 9V DC option
• 500mA per 9V DC output powers nearly any pedal
• 2 selectable outputs offer 9V, 12V, or 18V DC (12V provides 375mA, 18V provides 250mA)
• 9 pedal cables included (5.5mm x 2.1mm barrel connectors, center negative, right angle to straight)

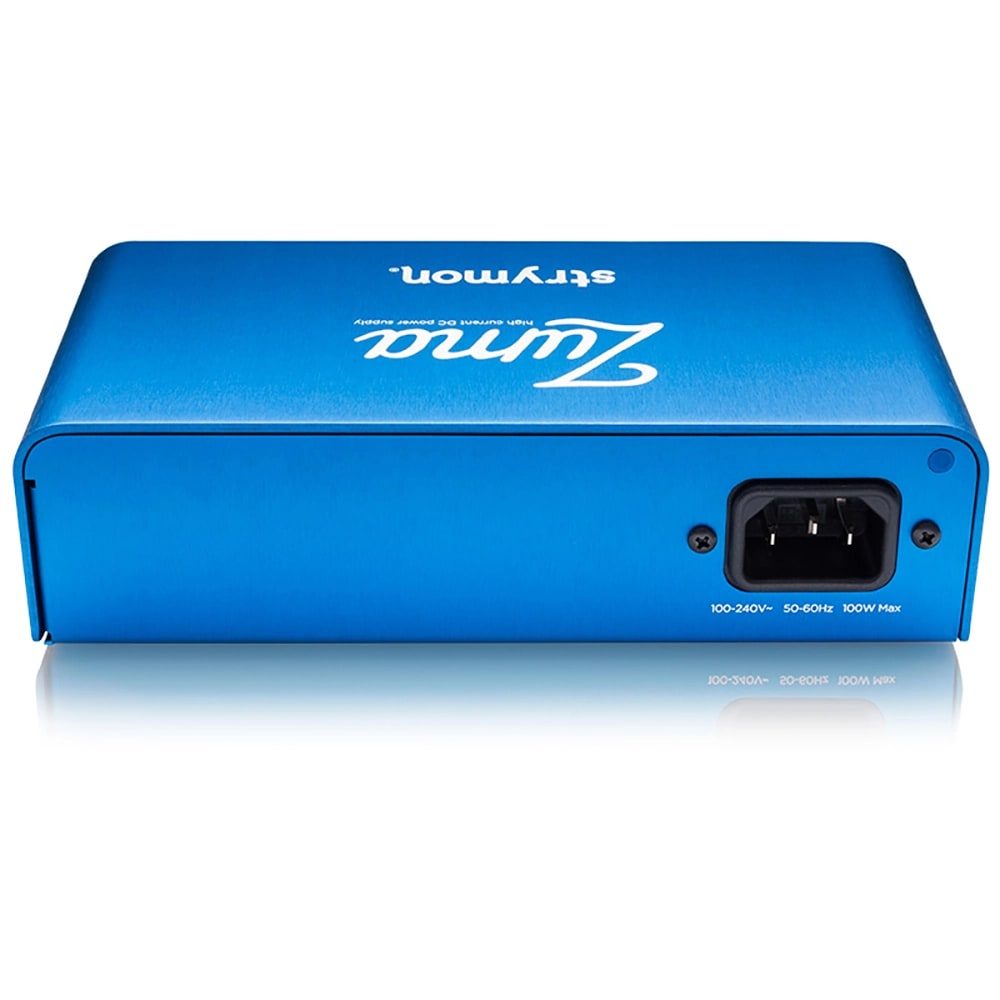

• Detachable IEC power cable included
• 24V OUT jack for additional outputs via Strymon Ojai (sold separately)
• Nine individual custom transformers (one per channel) deliver clean, consistent power
• Worldwide power compatibility for no-hassle international touring
• Lightweight, rugged anodized midnight blue aluminum chassis; fits under most pedalboards
• Designed and built in the USA
