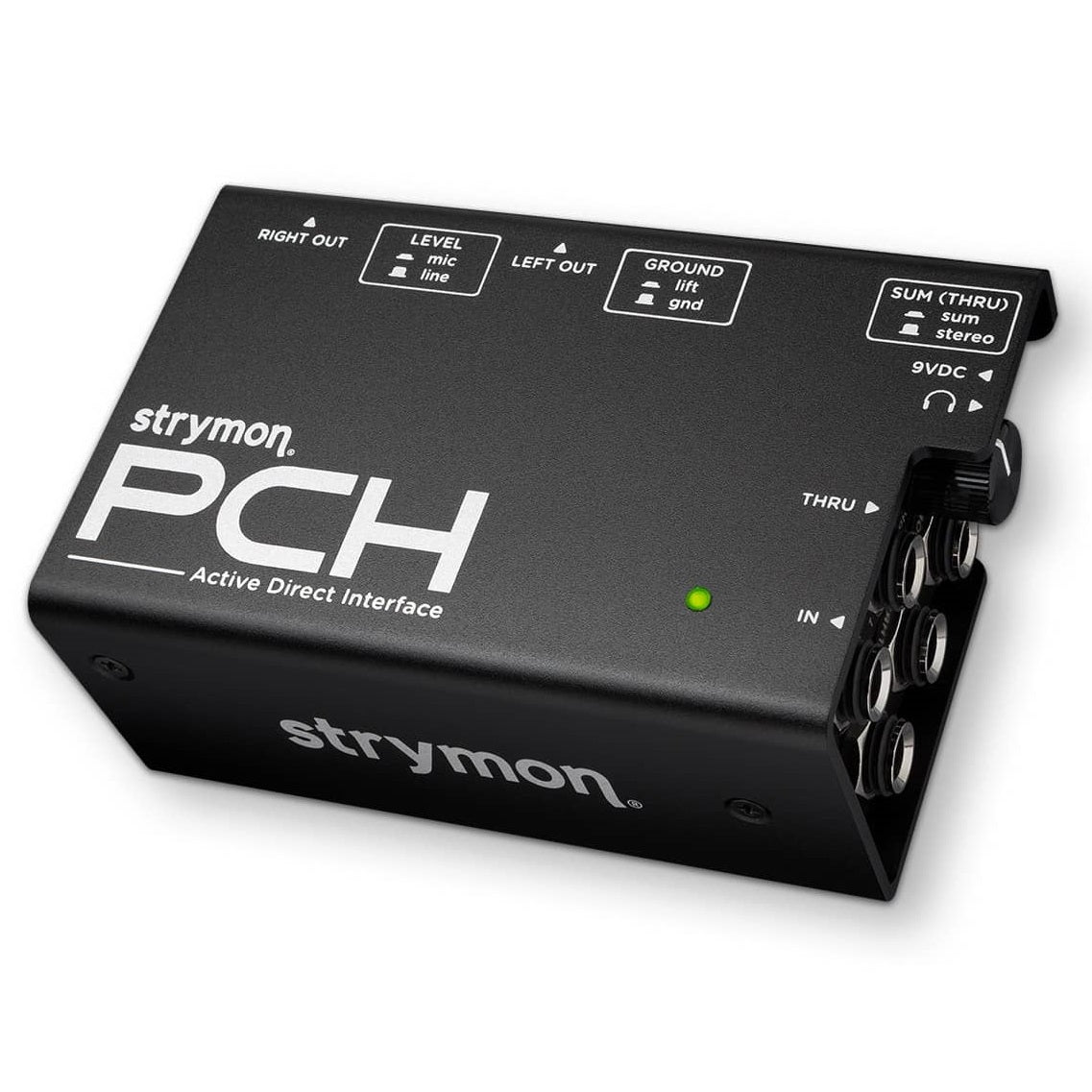

New Strymon PCH Active Stereo Direct Interface with Headphone Amp

Hear Everything. PCH is an advanced stereo active direct interface with a hidden superpower – an onboard console-quality headphone amplifier. Now you can rest easy knowing that the sound of your pedalboard won't change even a little when passing through PCH, and the headphone amp means you won't have to ask anyone how you sound. You'll know.

PCH has a powerful headphone amplifier onboard, making it easy to monitor or practice listening to the sound of your entire rig or pedalboard in full stereo, no matter the pedal order or the components.

Connecting the output of your pedalboard to a DI is a very different thing than simply plugging your bass or guitar straight into one. Pedalboards can generate very loud output signals, enough to swamp the input of ordinary direct boxes. PCH is different, partially because it runs on 9VDC, and it has enough headroom to handle powerful incoming audio while remaining pristine, ensuring you always sound your best.

No matter what instrument or genre of music you play, if you need to connect unbalanced outputs to a PA, recording interface or flat response speaker system, PCH is the ultimate choice for an absolutely transparent stereo direct interface — and it's the only one that you can listen to locally via the headphone amp.

Transparent By Design. PCH was designed from the ground up to be sonically transparent, virtually unclippable and bulletproof — it's the ultimate solution for your pedalboard, keyboard rig or synth setup.

Technology

• Runs on 9VDC — internally converted to 24V to be virtually unclippable
• Onboard headphone amplifier powerful enough to drive high impedance headphones cleanly

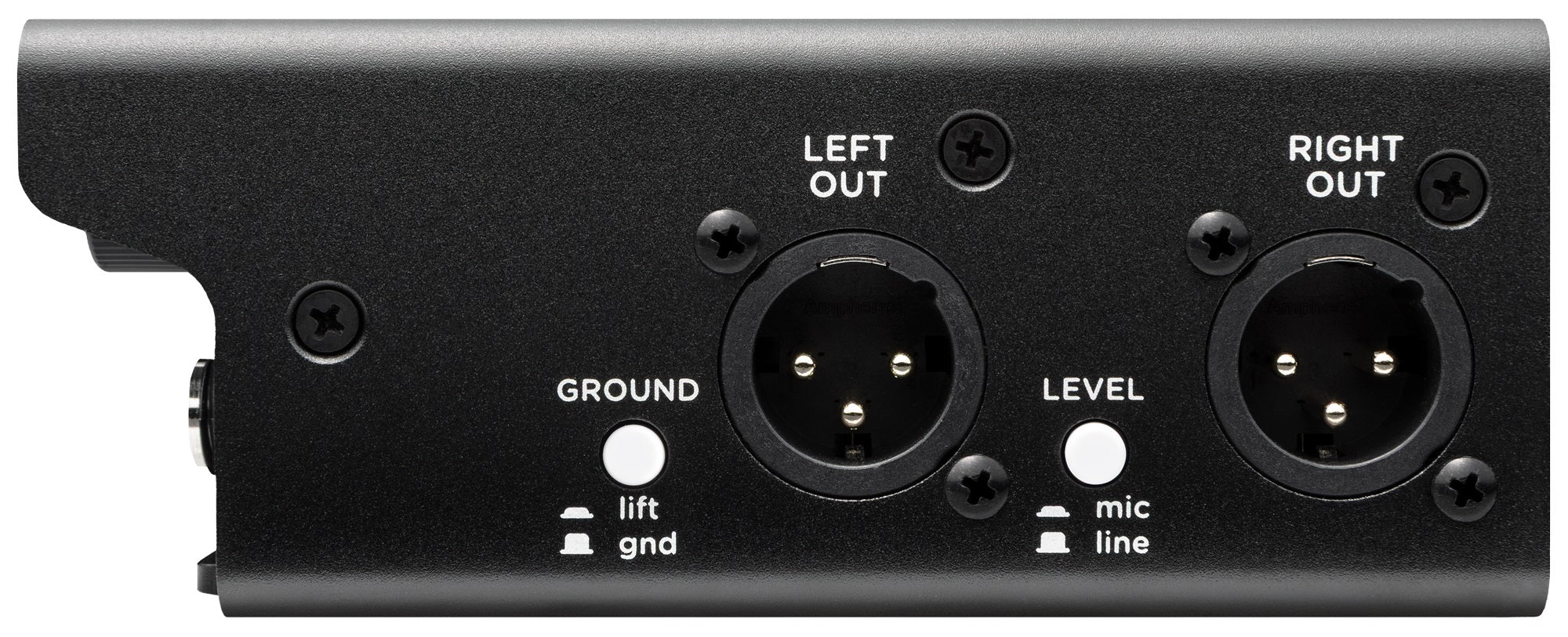

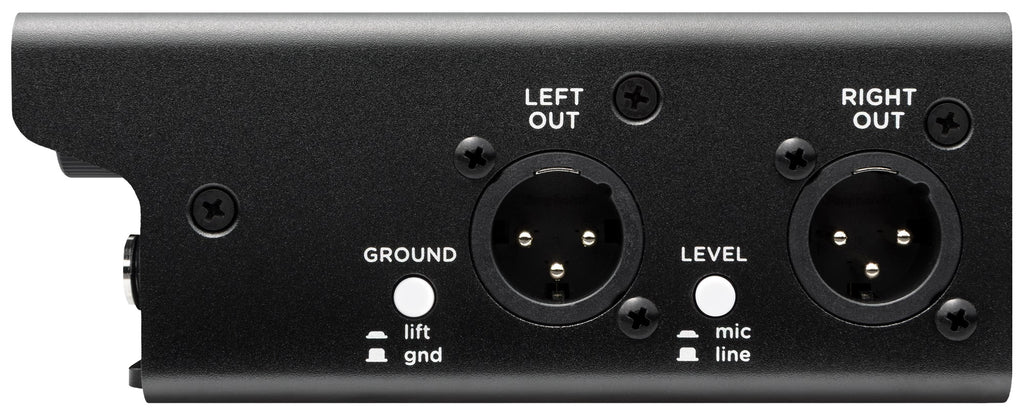

• Switchable Mic/Line level operation for the XLR outputs
• Defeatable ground lift for the XLR outputs

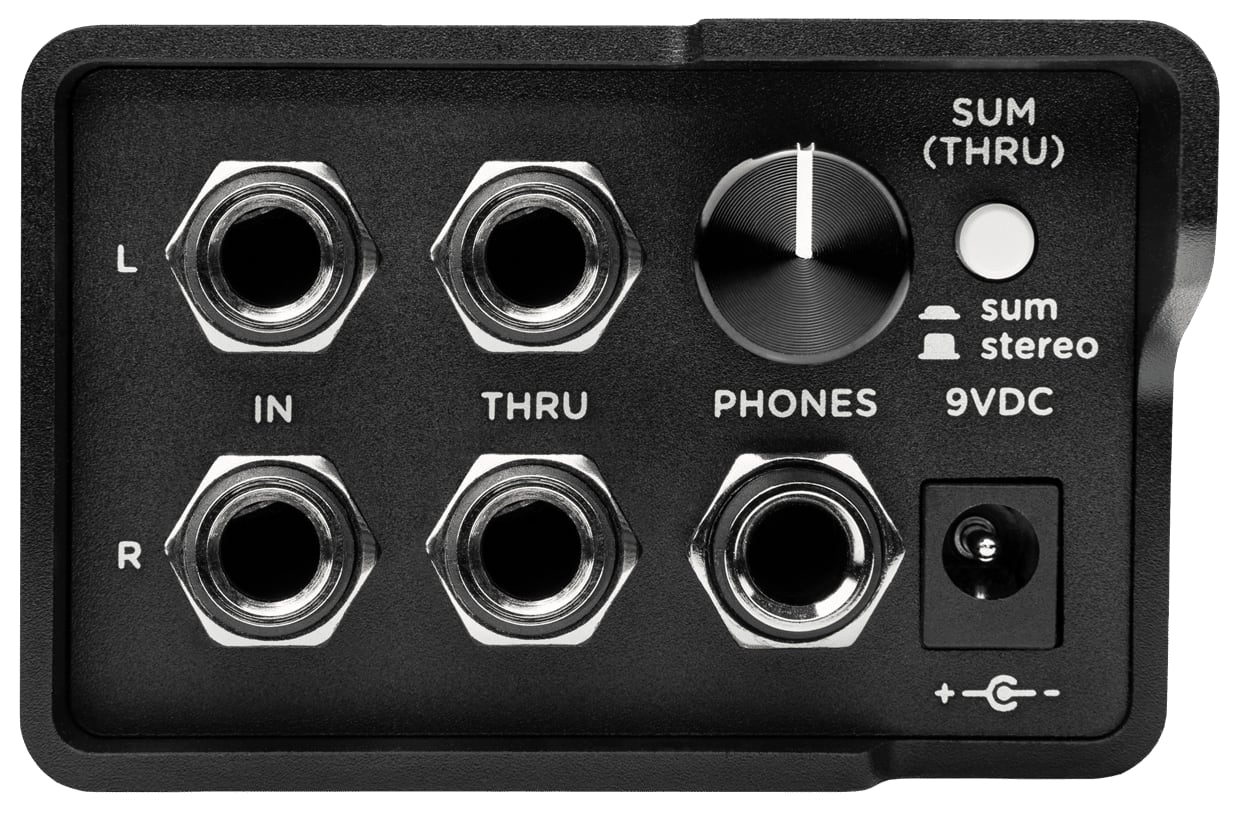

• Defeatable Sum for the Thru outputs
• Powered by a custom single-channel internal Ojai power supply
• Internal supply's custom transformer provides galvanic isolation
• Extremely flat frequency response and extremely low total harmonic distortion

Construction

• Thick 3mm extruded aluminum external shell with 5mm ribs for bulletproof protection
• Shell awning design protects headphone volume pot while allowing easy access to jacks
• High quality long life jacks and switches

Specs

In: Input Impedance 1 MΩ; Max Input Level +20dBu.
Thru: Output Impedance 100 Ω; SNR +135dB (A-Weight); Noise Floor -115dBV; Gain +0dB; Frequency Response +/- 0.25dB, 10Hz – 80kHz+.
HP: Output Impedance 2 Ω; Frequency Response +/- 0.25dB, 10Hz – 80kHz.
XLR Line Setting: Output Impedance 275 Ω; SNR +130dB; Noise Floor -110dBV; Gain +0dB; Max Output +20dBu; Frequency Response +/- 0.25dB, 10Hz – 80kHz+.
XLR Mic Setting: Output Impedance 100 Ω; Gain -20dB; Max Output +0.0dBu; SNR +125dB; Noise Floor -125 dBV; Frequency Response +/- 0.25dB, 10Hz – 80kHz+.
Power Supply: Input 9VDC; Current 500mA.
Dimensions: L 4.88" (124mm), W 2.97" (76mm), H 1.94" (50mm).
