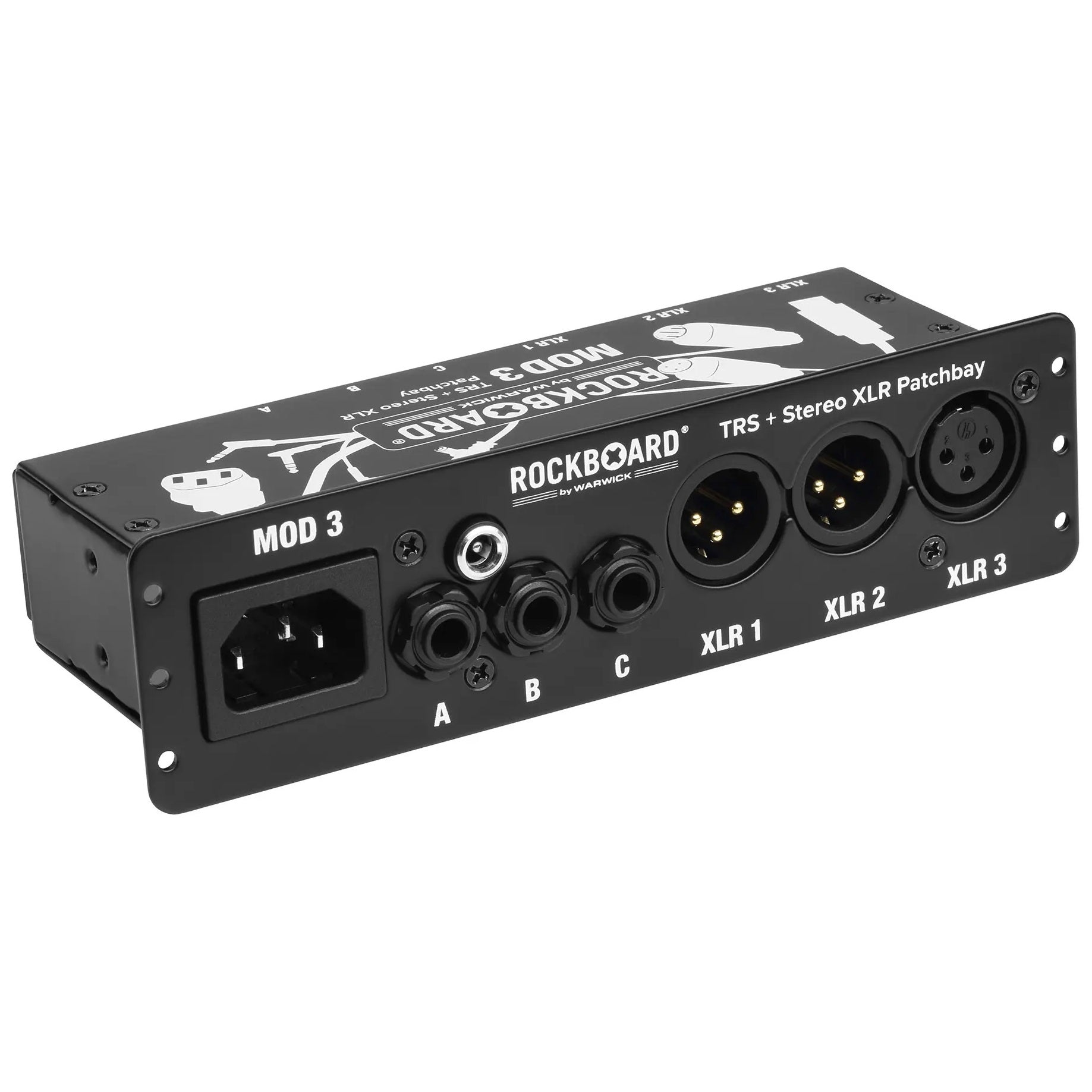

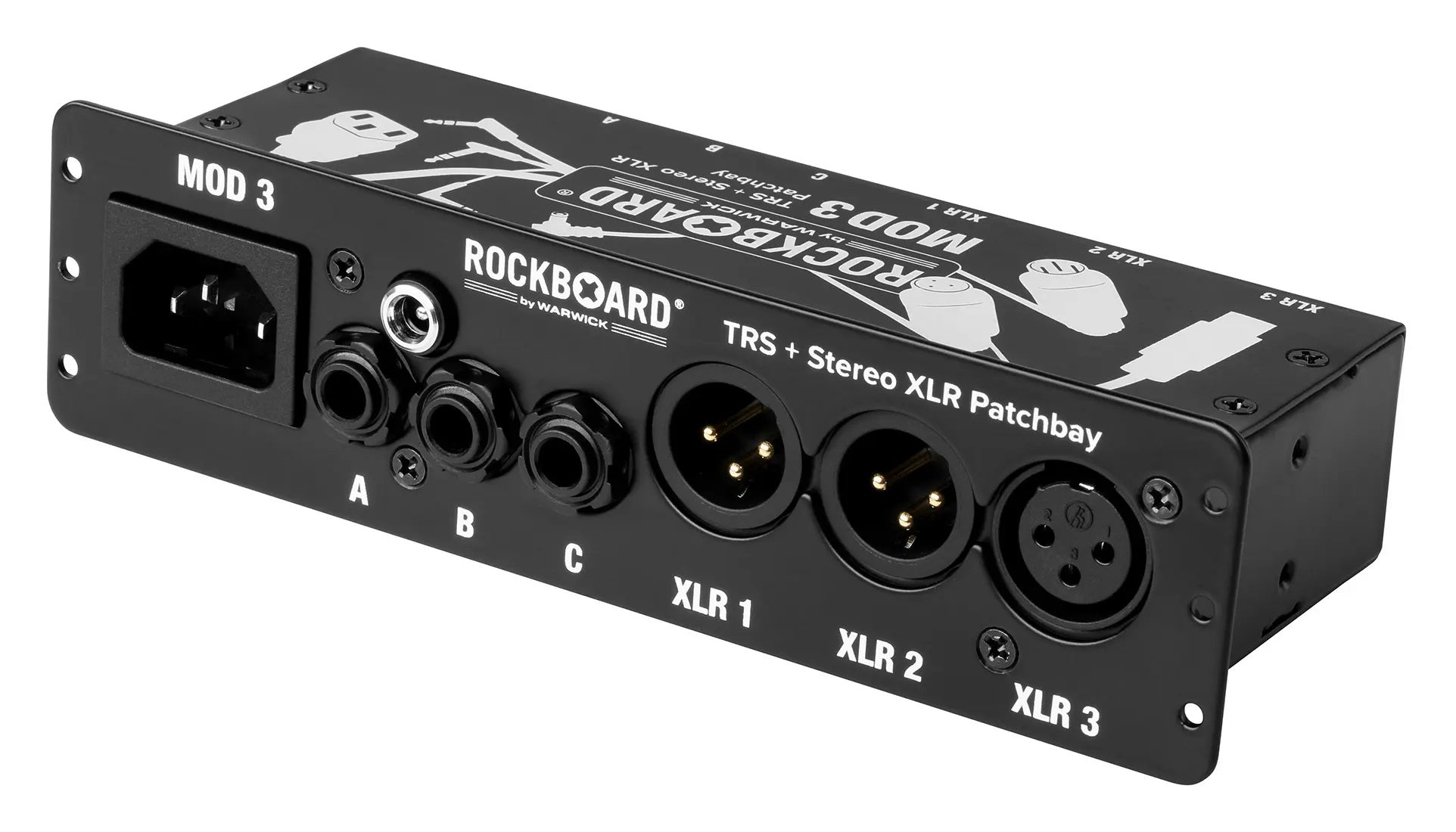

New RockBoard MOD 3 V2 All-in-One TRS, DC, IEC & XLR Patchbay for Pedal Boards

From RockBoard:

Vocal & Acoustic!
The MOD 3 V2 Patchbay is the easiest solution to consolidate ALL connections of a pedalboard in ONE central access point. The setup for any gig is done in seconds!

The MOD 3 V2 is designed primarily for vocalists and acoustic musicians. You can send a stereo signal through the two XLR outputs and connect any microphone to the XLR input. The three TRS-Through connectors allow you to connect effect pedals to the FX loop of your amplifier, for example. The necessary power connection is already integrated.

Compatible with almost all of our pedalboards with one or more MOD slots (not available on the compact DUO series), the All-In-One Patchbay allows you to organize all required cable connections in one efficient module. This way, you can keep all pedals permanently and neatly wired underneath the board and organize all connections to and from your effects setup in one convenient spot.

The removable front panel makes it possible to use this ingenious module with pedalboards from other manufacturers, e.g. using our 'Mounting Rack'.

Details at a glance
all-in-one patchbay for pedalboards
fits MOD slots in RockBoard pedalboards
compatible with a wide variety of other pedalboards
acts as the central access point to your effects setup
establishes clean cable paths to and from the pedal board

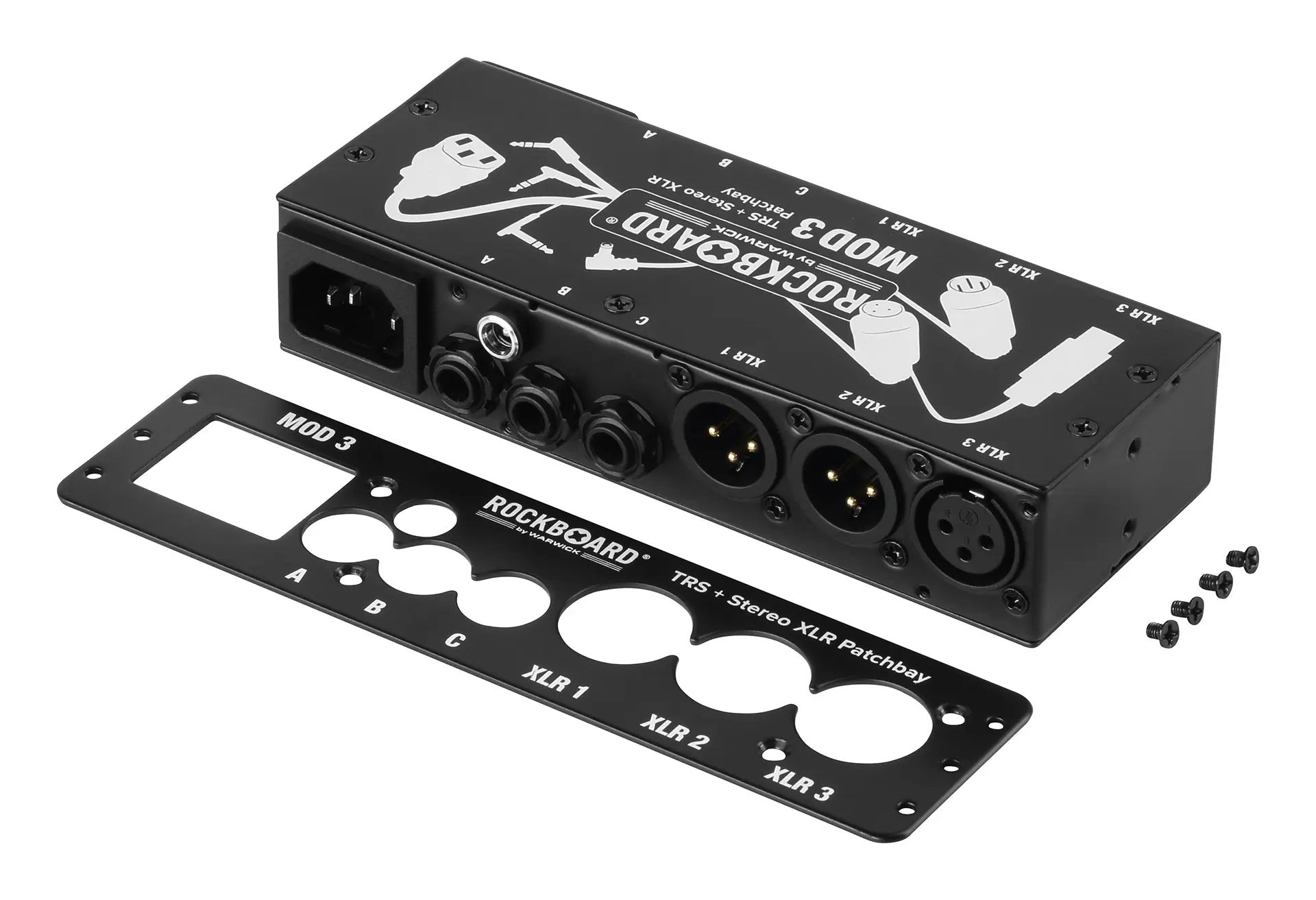

detachable front plate for mounting on top or underneath pedalboards

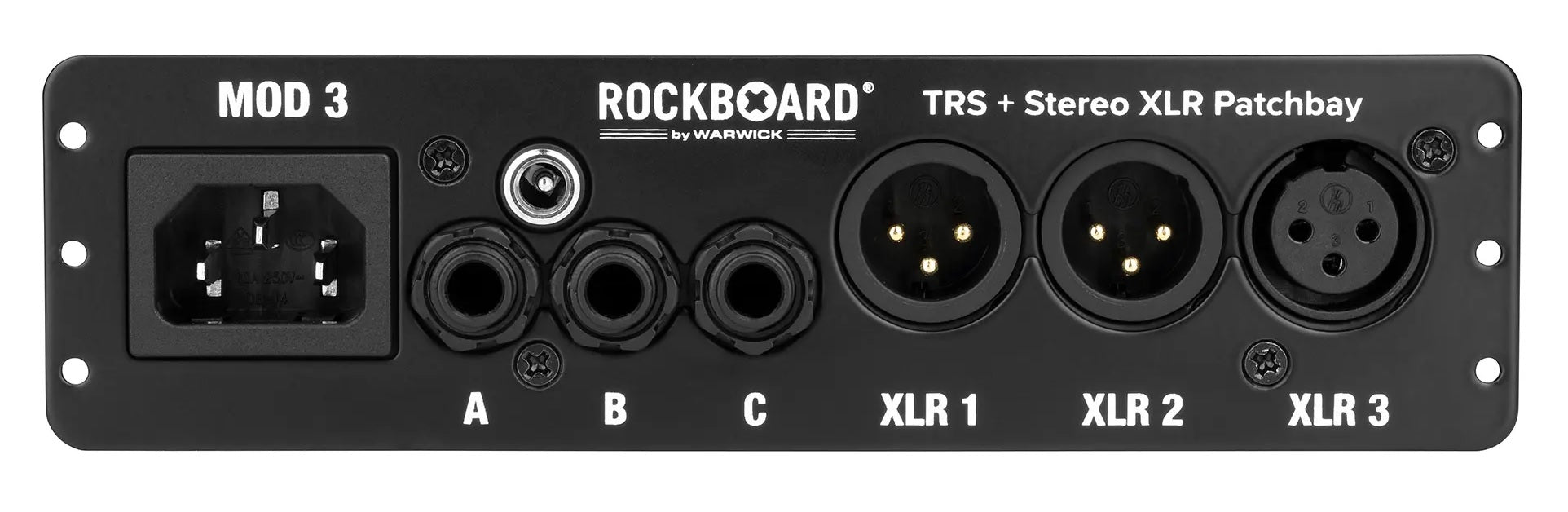

3 x 6,3 mm / ¼" TRS thru
2 x XLR thru (male front / female back)
1 x XLR thru (female front / male back)
1 x DC 2,1 x 5,5 mm barrel thru, rated for a maximum of 3 A at 30 V
1 x AC IEC thru (male front / female back)

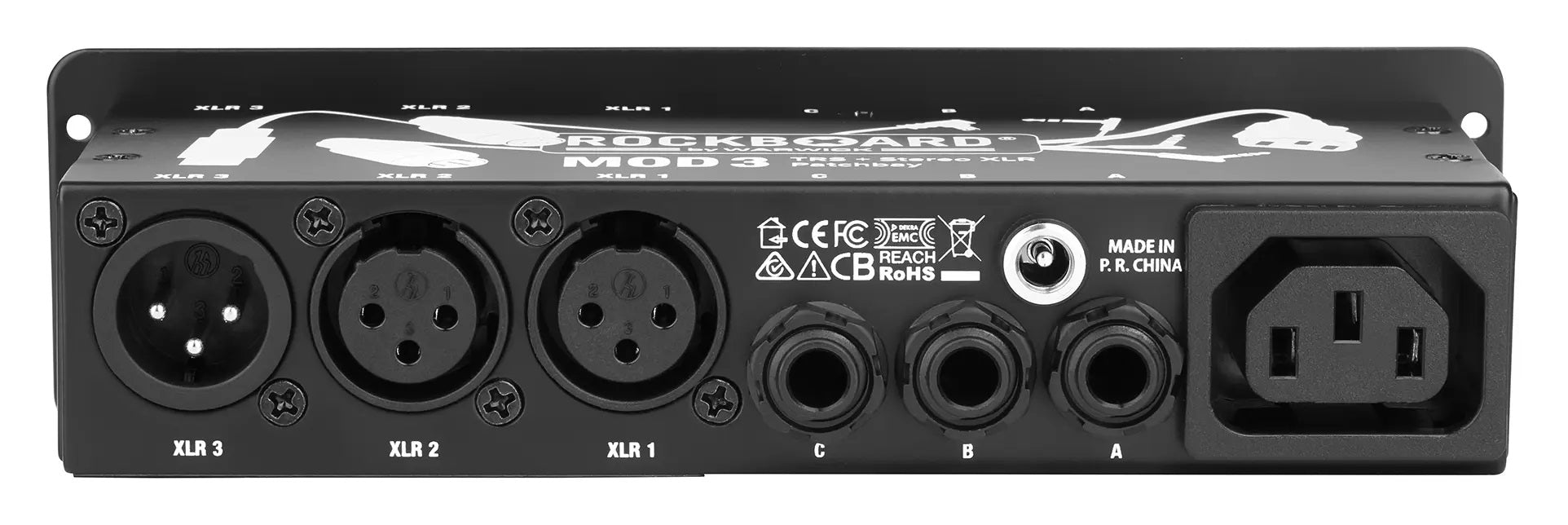

all connections mirrored on the backside
dimensions excl. front plate (W x D x H): 160 x 60 x 33 mm / 6 19/64" x 2 23/64" x 1 19/64"
dimensions of the front plate (W x H): 175 x 48 mm / 6 57/64" x 1 57/64"
weight 450 g / 0.99 lbs
incl. mounting screws, counter nuts, and TX wrench
