New RockBoard MOD 2 V2 All-in-One TRS, MIDI, IEC, DC & USB Patchbay for Pedal Boards

New RockBoard MOD 2 V2 All-in-One TRS, MIDI, IEC, DC & USB Patchbay for Pedal Boards

This item is new!

Orders placed before 12:00 PM Eastern Standard Time will ship same day! Orders placed after 12:00 may ship same day and if not, they will ship next day.

I am an Authorized Dealer, a store receipt will be included with your purchase.

Check my feedback and buy with confidence!

From RockBoard:

MIDI-fied!

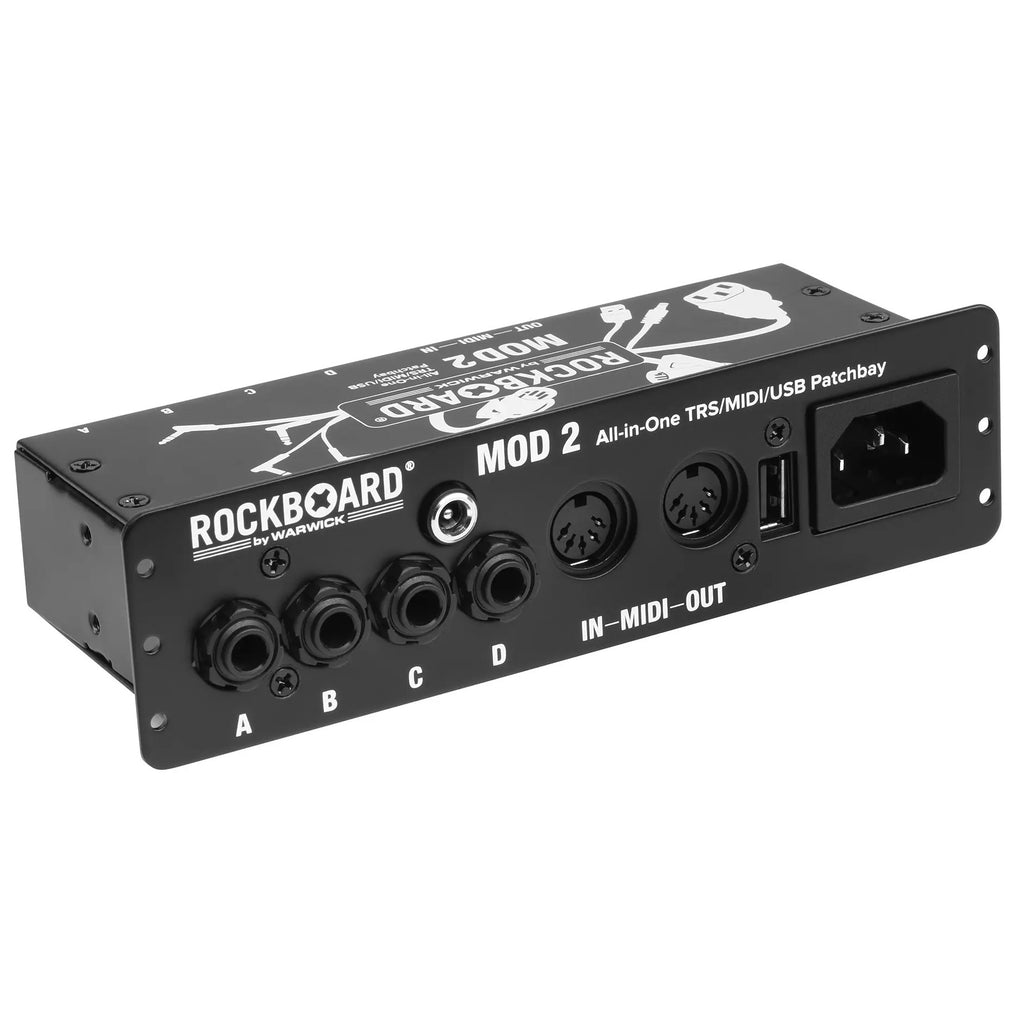

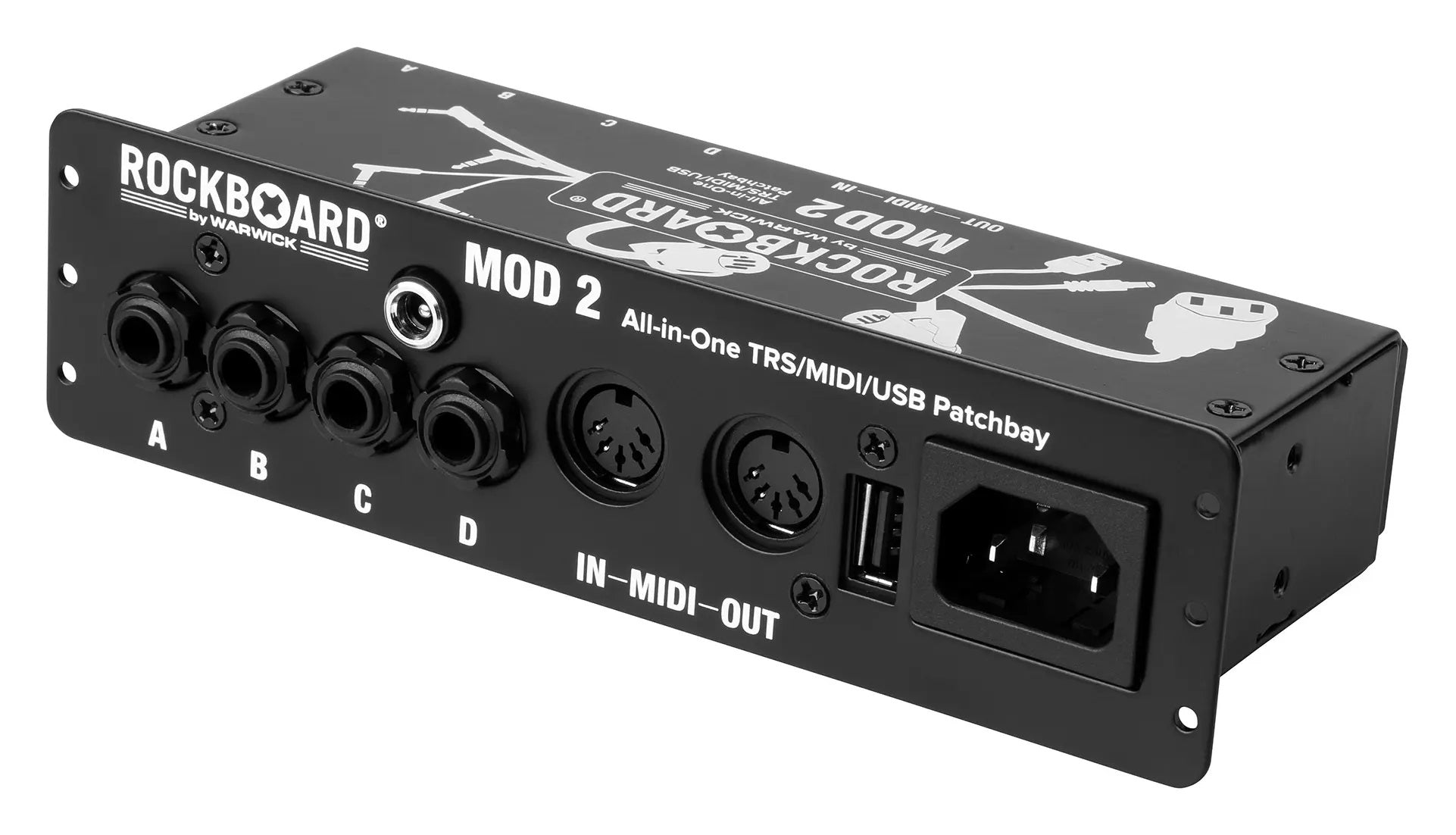

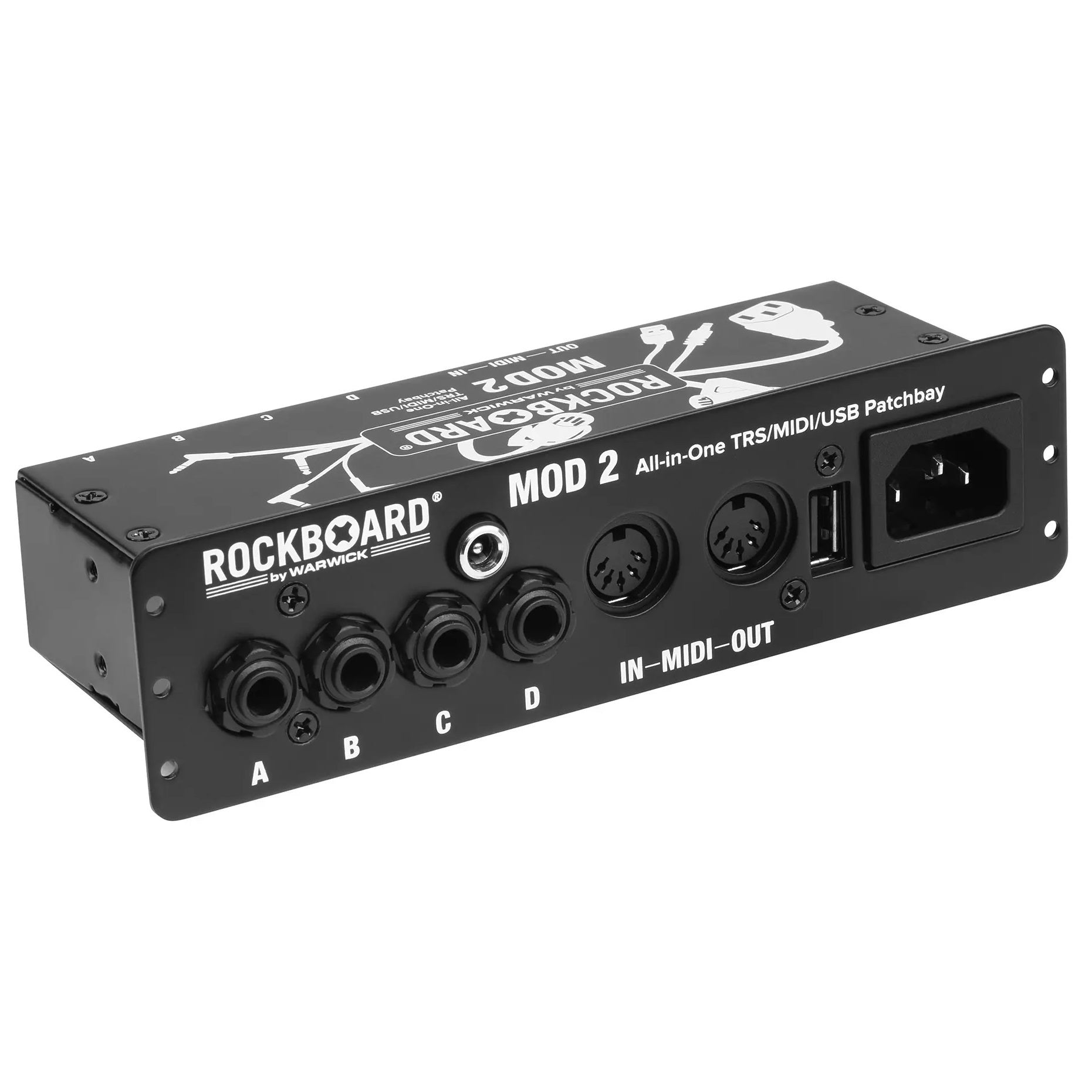

The MOD 2 V2 Patchbay is the easiest solution to consolidate ALL connections of a pedalboard in ONE central access point. The setup for any gig is done in seconds!

With four TRS-Through connections, the MOD 2 V2 can be perfectly integrated into a true stereo setup for keyboard or synthesizer and allows perfect management using MIDI or USB. This is the ideal solution for MIDI-based setups, amplifiers and devices with USB connection between pedalboard and computer or audio interface. Alternatively, the MOD 2 V2 can be used to position some of your pedals in the front end before the amp (distortion, compressor, etc.) and some in the effects loop (such as reverb, delay) (4-cable method).

Compatible with almost all of our pedalboards with one or more MOD slots (not available on the compact DUO series), the All-In-One Patchbay allows you to organize all required cable connections in one efficient module. This way, you can keep all pedals permanently and neatly wired underneath the board and organize all connections to and from your effects setup in one convenient spot.

The removable front panel makes it possible to use this ingenious module with pedalboards from other manufacturers, e.g. using our 'Mounting Rack'.

Details at a glance
all-in-one patchbay for pedalboards
fits MOD slots in RockBoard pedalboards
compatible with a wide variety of other pedalboards
acts as the central access point to your effects setup
establishes clean cable paths to and from the pedal board

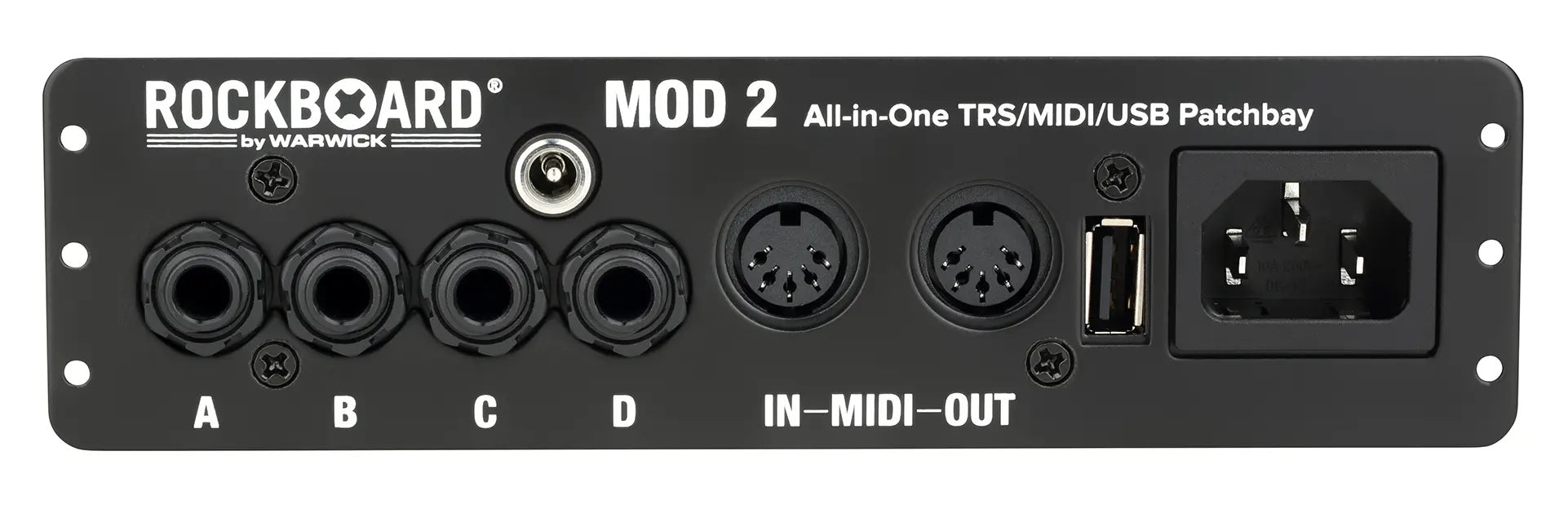

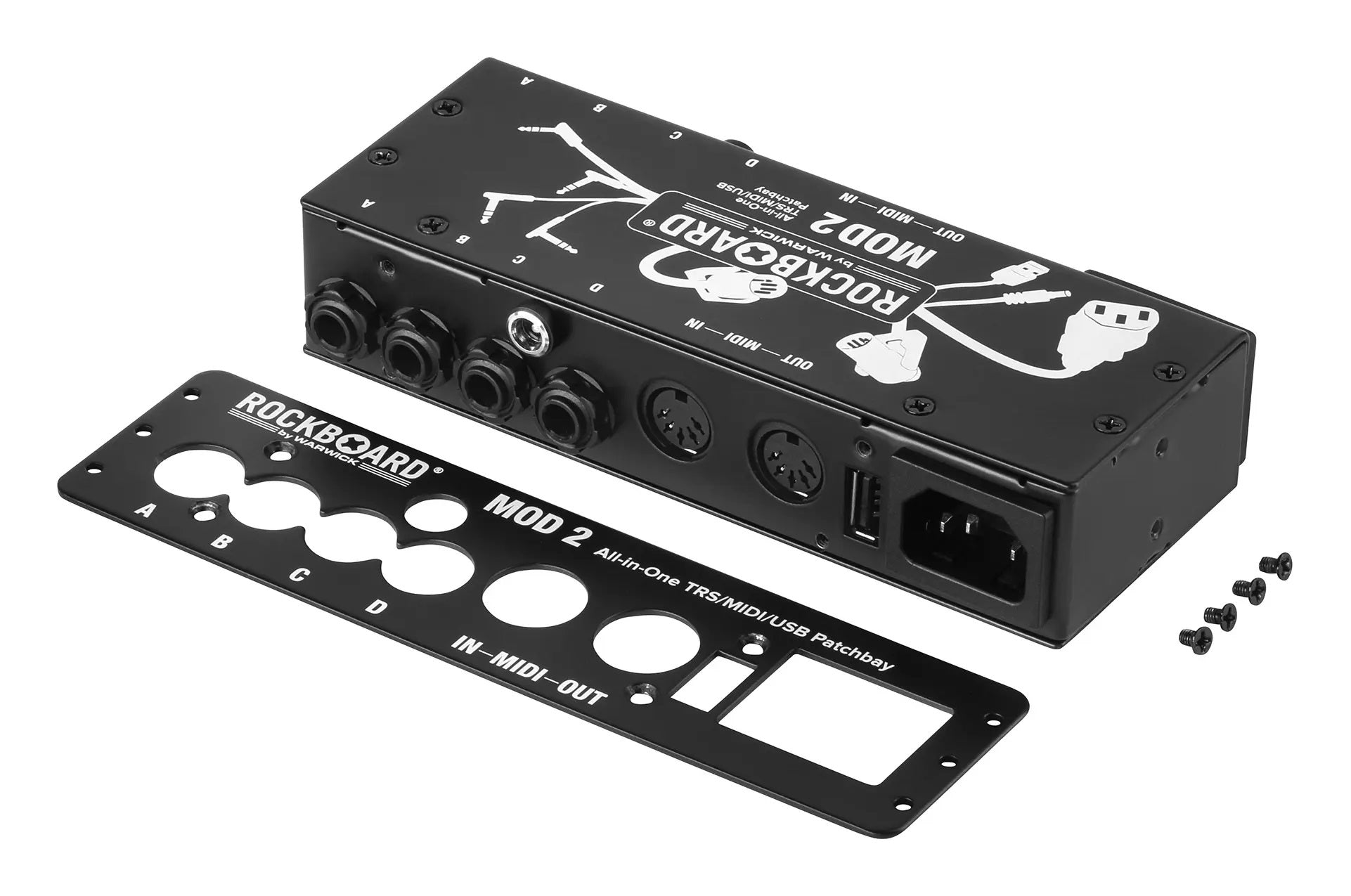

detachable front plate for mounting on top or underneath pedalboards
4 x 6,3 mm / Вј" TRS thru
2 x 5-pin DIN MIDI thru
1 x USB Type A thru
1 x DC 2,1 x 5,5 mm barrel thru, rated for a maximum of 3 A at 30 V
1 x AC IEC thru (male front / female back)

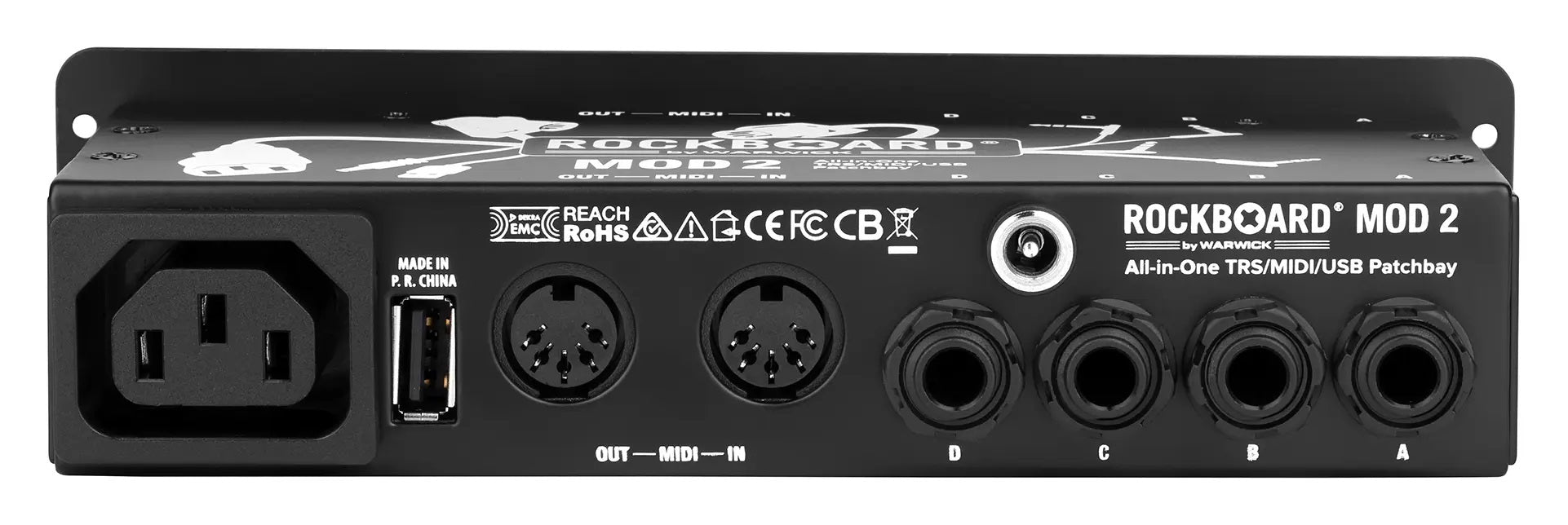

all connections mirrored on the backside
dimensions excl. front plate (W x D x H): 160 x 60 x 33 mm / 6 19/64" x 2 23/64" x 1 19/64"
dimensions of the front plate (W x H): 175 x 48 mm / 6 57/64" x 1 57/64"
weight 420 g / 0.93 lbs
incl. mounting screws, counter nuts, and TX wrench
