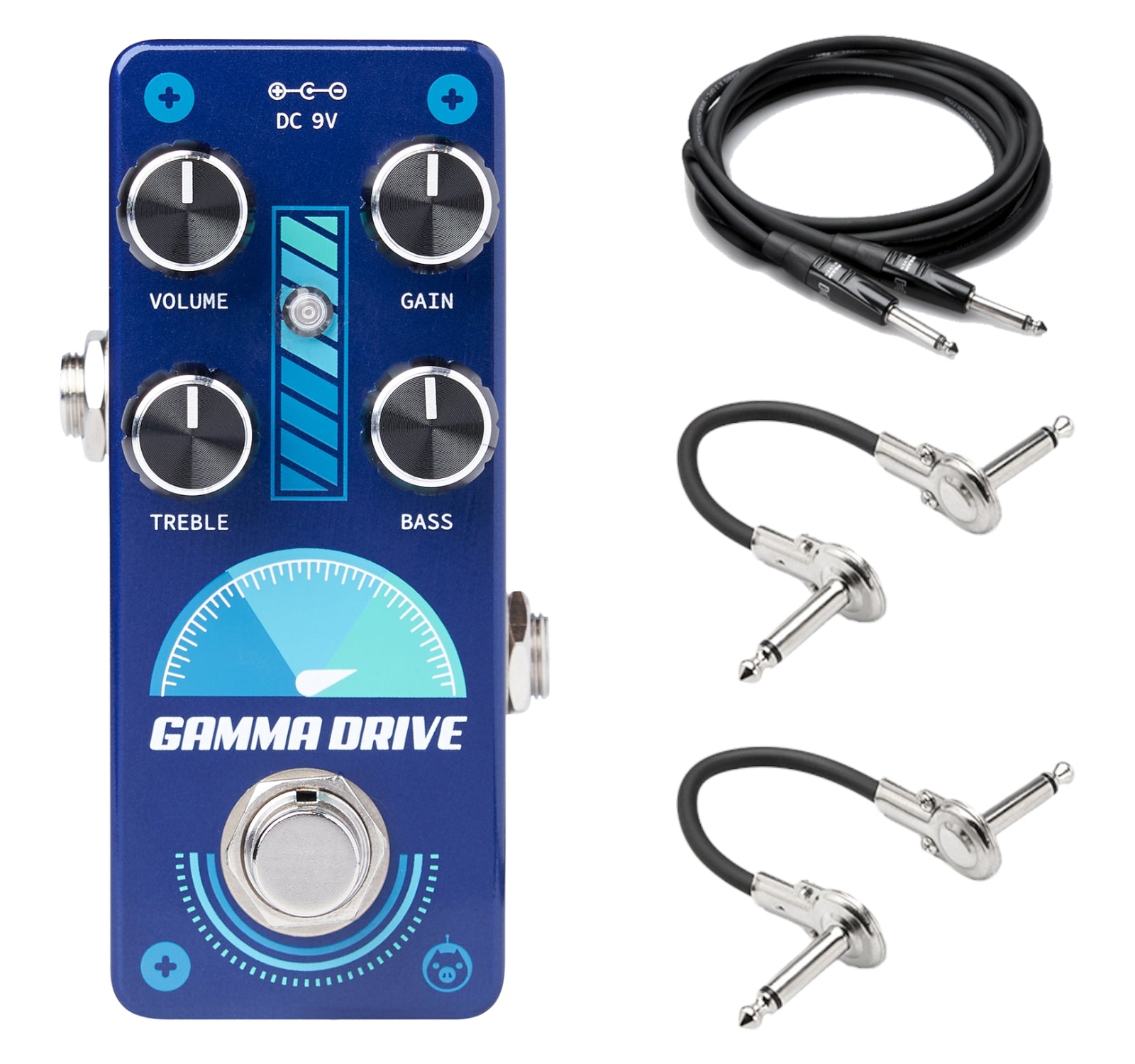

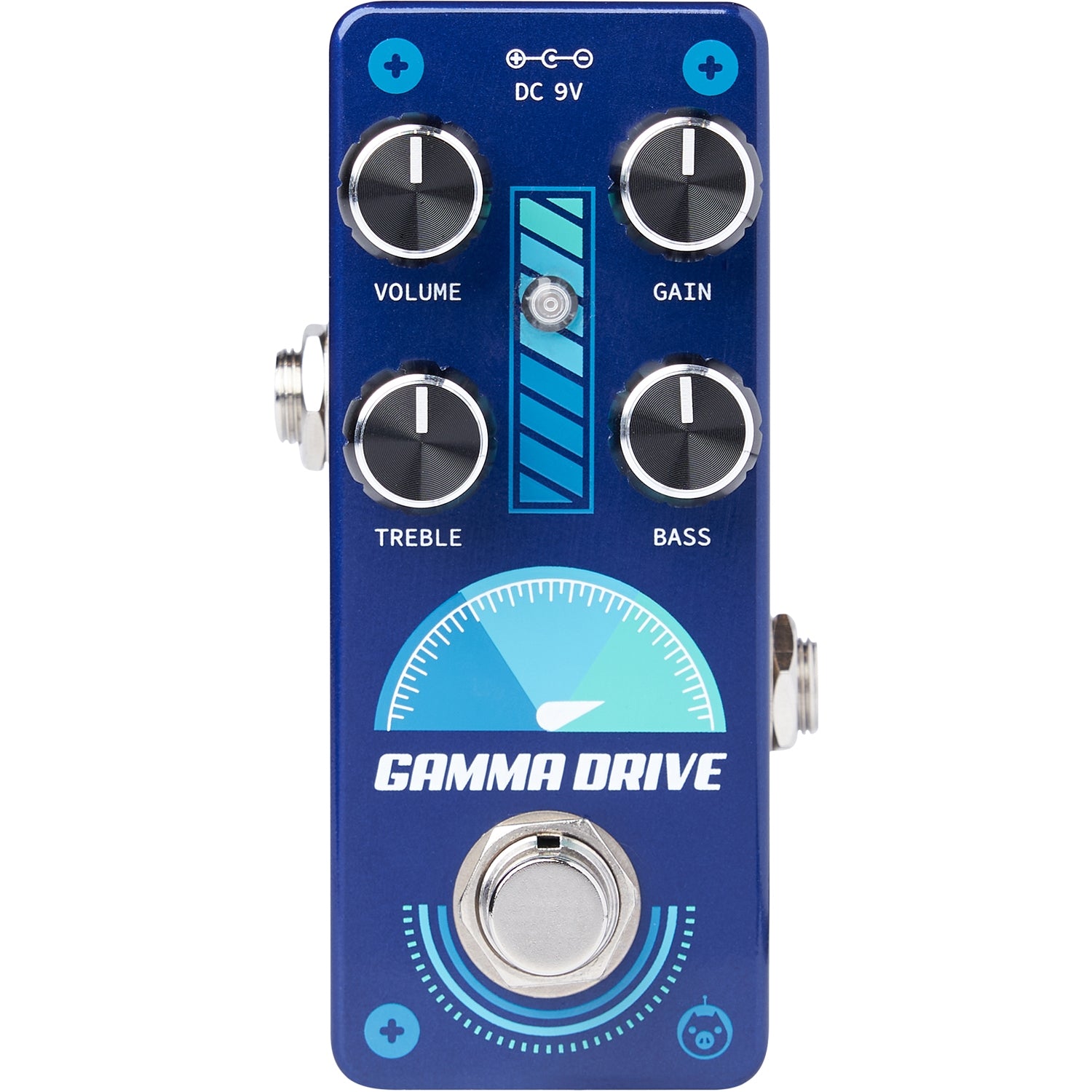

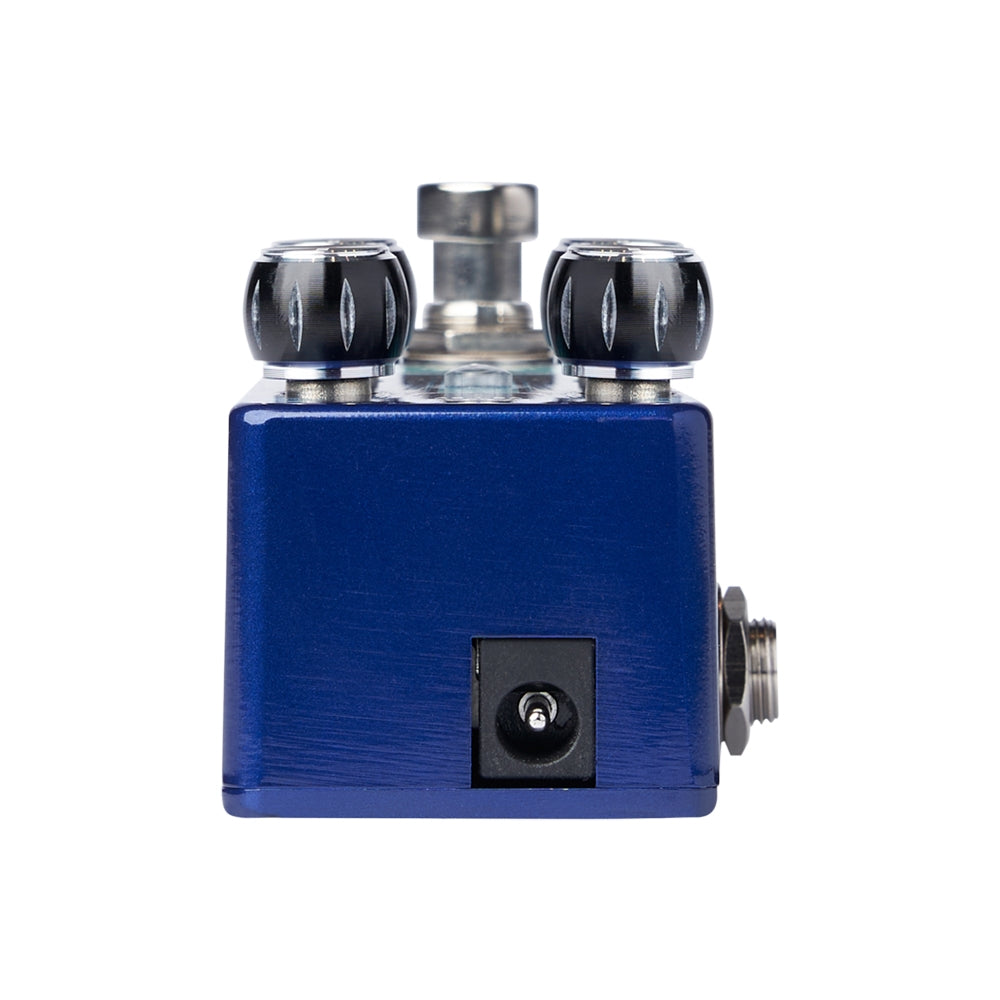

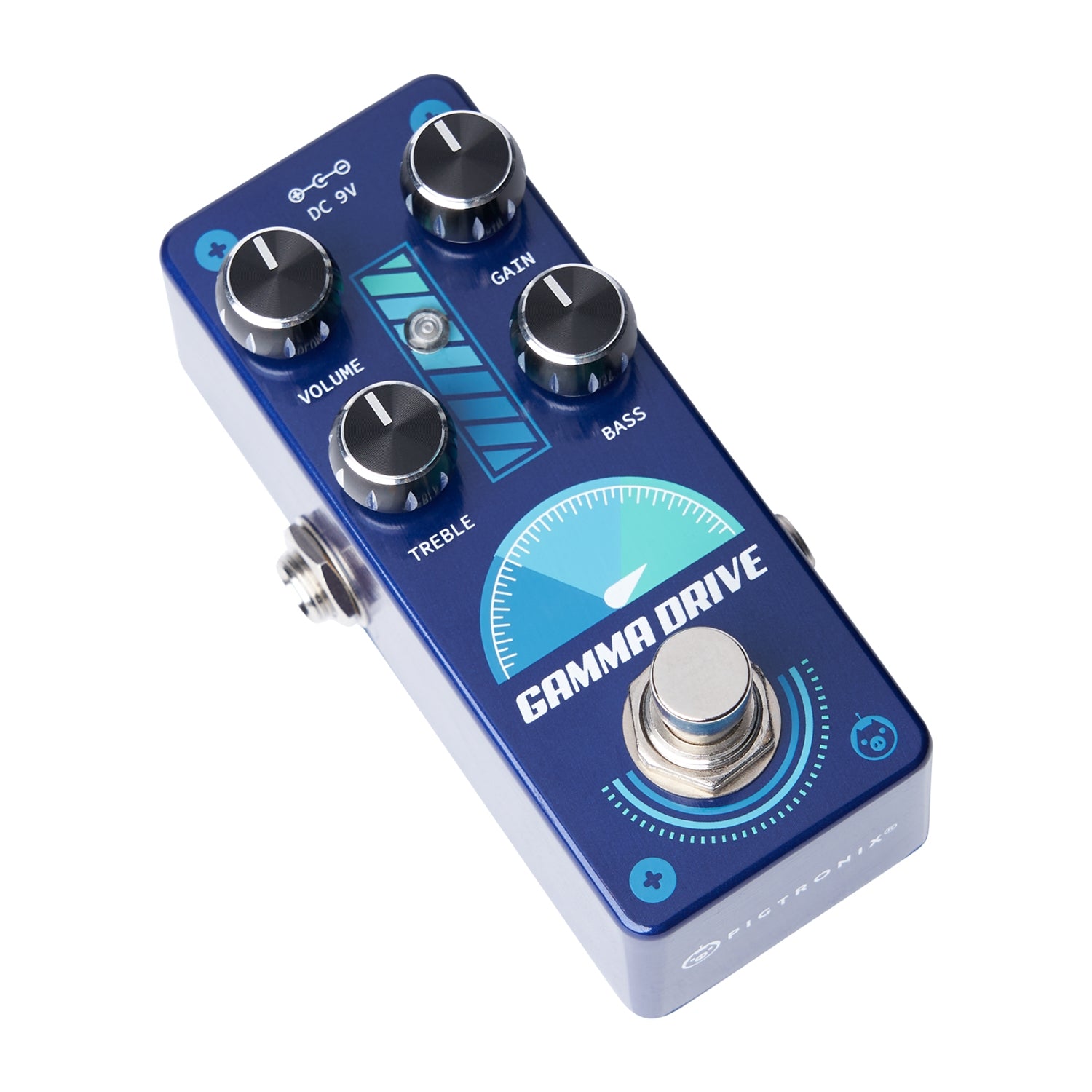

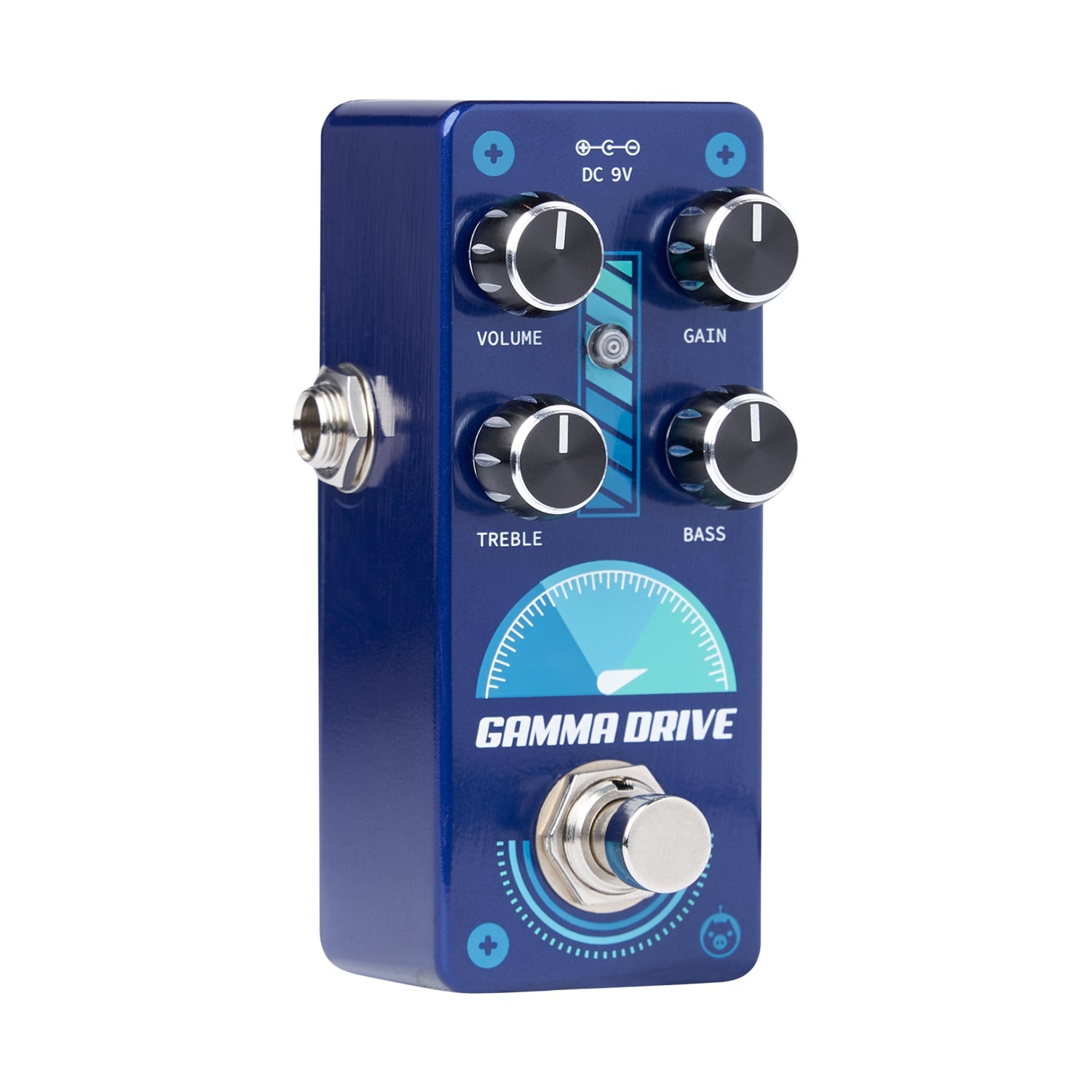

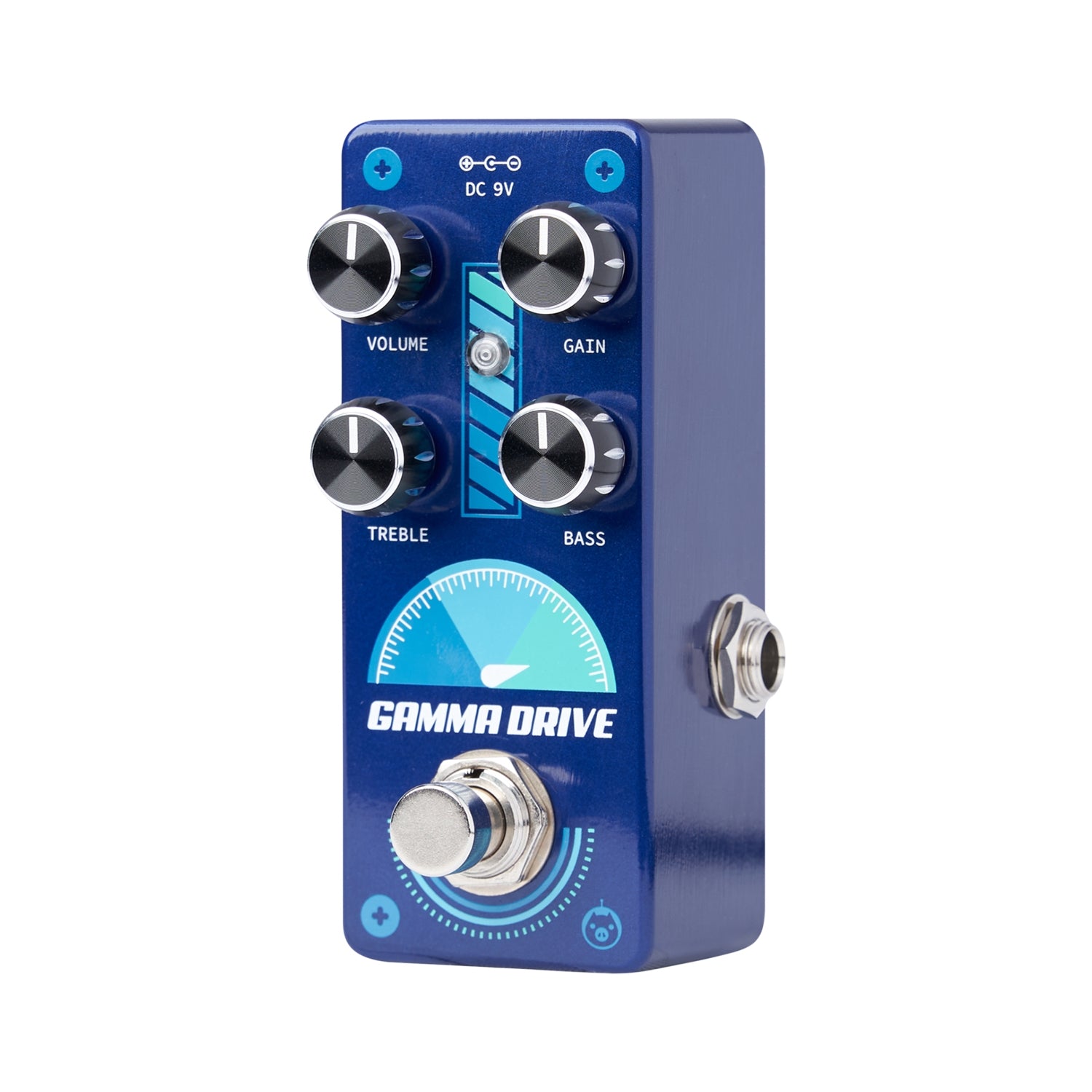

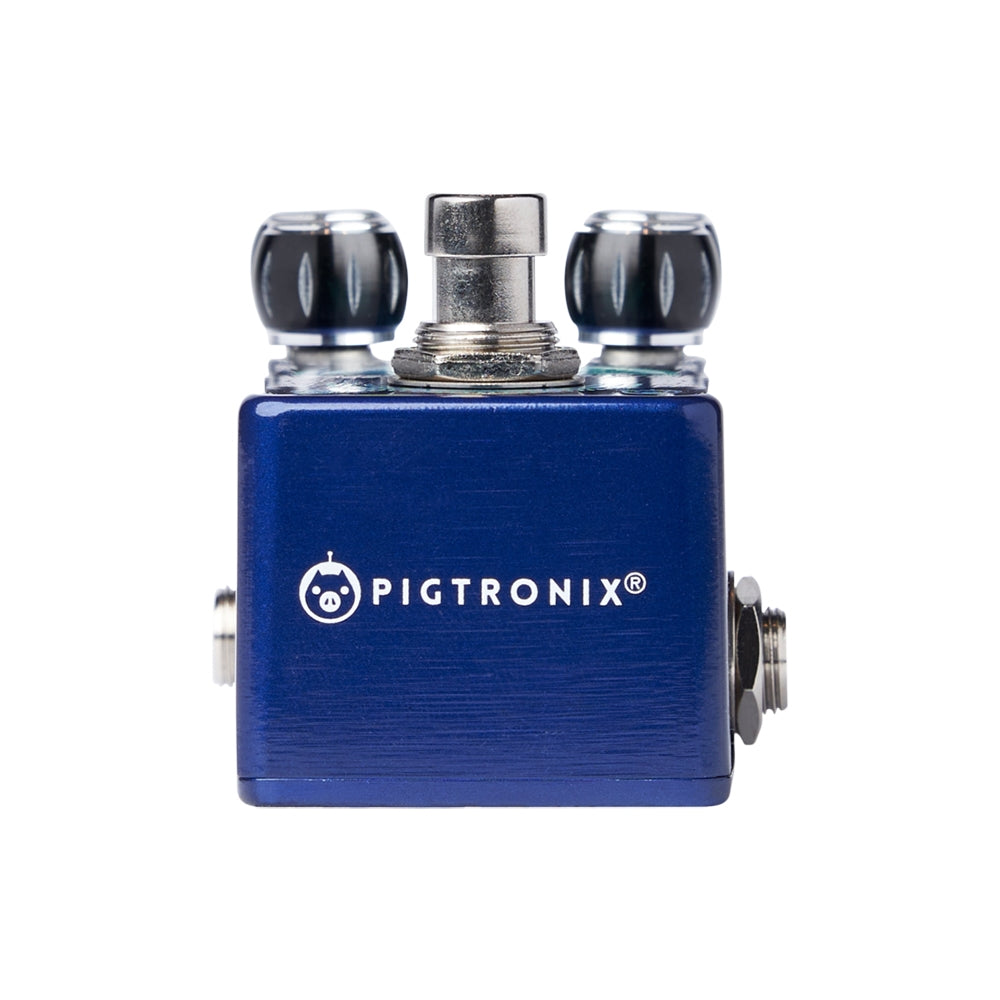

New Pigtronix Gamma Drive Overdrive Guitar Effects Pedal

Includes two Hosa metal patch cables (IRG-100.5) and a Hosa 10-foot Pro guitar cable

Gamma Drive is a germanium-enhanced overdrive with active Treble and Bass EQ controls. Achieving articulate, touch-sensitive performance characteristics via a unique mixture of germanium, LED and silicon diodes arranged to produce asymmetrical clipping, Gamma Drive offers overdrive rich in 2nd order harmonics, which creates sweet, blooming tone. Offering a range of overdrive from sparkling clean boost to a raging distortion, Gamma Drive was designed for versatile playing across a wide variety of musical genres.

Touch-Sensitive Analog Drive
Gamma Drive’s unique mixture of clipping diodes allow for touch-sensitive response, where natural saturation breaks up further as the player digs in. With the addition of a 2-band EQ, players can dial in Gamma Drive with precision, resulting in a lively, amp-responsive tone.

Ripping Through the Universe
Listen—how do you think Marvin has the time to explore the infinite depths of the cosmos and bring back all these wild discoveries? He kicks it into Gamma Drive, c’mahhhn.

Features

Gain: Sets the amount of distortion

Volume: Sets the output level

Treble: Boosts or cuts high frequencies centered at 2kHz

Bass: Boosts or cuts low frequencies centered at 80Hz.

Model Name: Gamma Drive

SKU: GDR

Function: Overdrive with 2-band EQ

Category 1: Overdrive

Category 2: Distortion

Expression: NA

Bypass: True Bypass

ELECTRONICS

Voltage: 9VDC

Current Draw: 100mA

Input Impedance: 10M

Output Impedance: 150ohms

BODY

Length (in): 1.5

Width (in): 3.75

Height (in): 1.75

Weight (lbs): 0.5
