New NUX NRV-3 Damp Reverb Mini Guitar Effects Pedal

From NUX:

Ambience is the rule.

Whether you are a classic spring reverb fan, a studio rack aficionado, or an ambient soundscape creator searching for new sonic textures, DAMP reverb provides three different reverb types that make everything musical and beautiful.

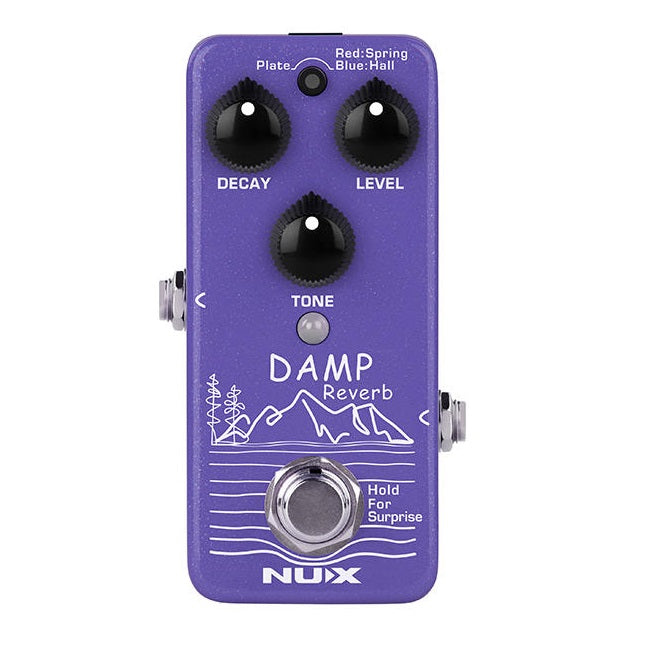

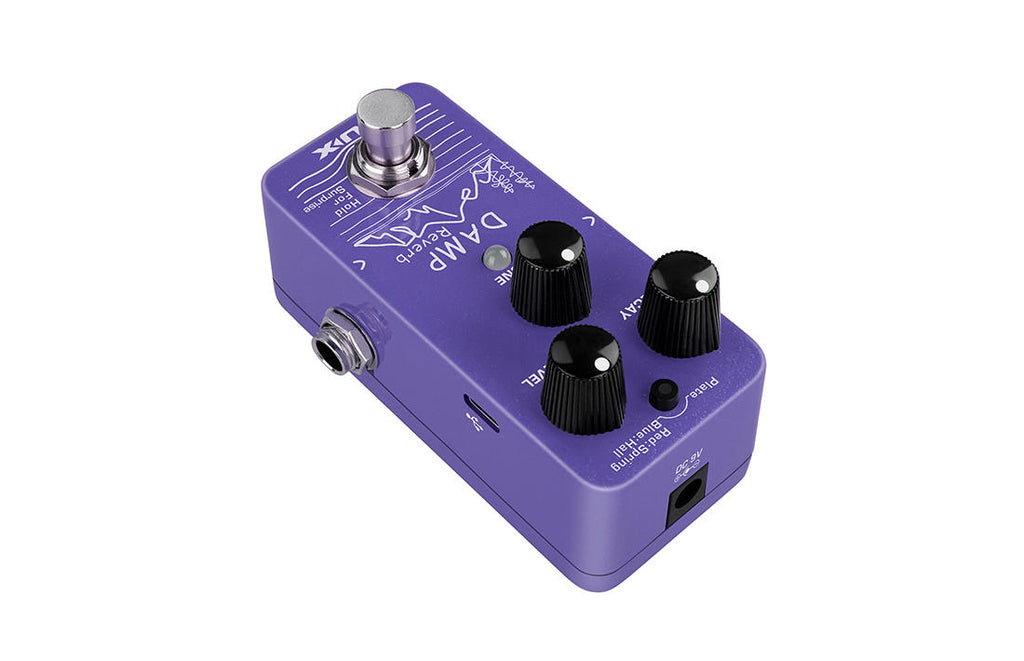

DAMP Reverb (NRV-3) is a mini reverb pedal with 3 different reverb types including Plate, Spring, and Hall. You can switch the types by tapping the tap switch.

Plate reverb was inspired by the EMT 140, which used a metal plate suspended in a steel frame to recreate reverberations similar to those heard in an acoustic space; a renowned studio reverb found on classic recordings.

Spring reverb simulates the spring tank, where a mechanical disturbance propagates in a spring by creating a mechanical oscillation. For a “bouncy” tone, Spring reverb is a solid choice for adding a bottom-heavy dimension. Classic “surf” reverb; great for Rockabilly too!

Hall reverb is based on the legendary Lexicon 224, unleashed in 1978. We simplified the DECAY, LEVEL, and TONE controls. It has a famously lush reverb tail that single-handedly defined the sound of an entire era. Large, encompassing reverb with warm decay.

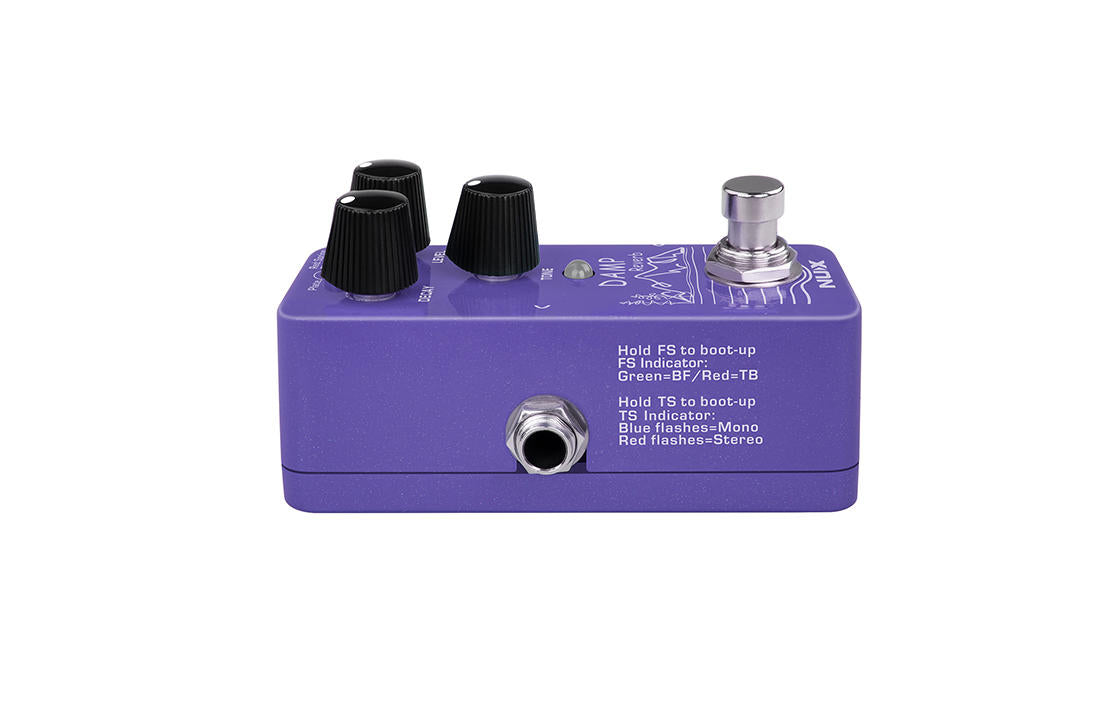

DAMP reverb offers True-bypass and Buffer-bypass (Trails); just hold the footswitch to boot up the pedal (do not connect USB). The footswitch indicator shows the bypass status. (At boot-up, if the FS indicator flashes Green = BF, Red = TB.)

Mini but mighty! It also supports stereo input & output. (Use a 1/4” TRS plug and choose Stereo mode.)

Features

• 3 reverb types in a mini enclosure.
• Plate: Clear ambience. Renowned studio reverb found on classic recordings.
• Spring: Bottom-heavy dimension flashback. Classic surf reverb; great for Rockabilly!
• Hall: Lush & large encompassing reverb with warm decay.
• Hold footswitch for secondary function (Shimmer, Freeze).
• True-bypass or Buffer-bypass (Trails).
• Supports Stereo.
• Low power consumption (less than 100mA).
• Analog dry signal for low noise and zero latency.

Specifications

• Input Impedance: 1MΩ
• Output Impedance: 10kΩ
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit

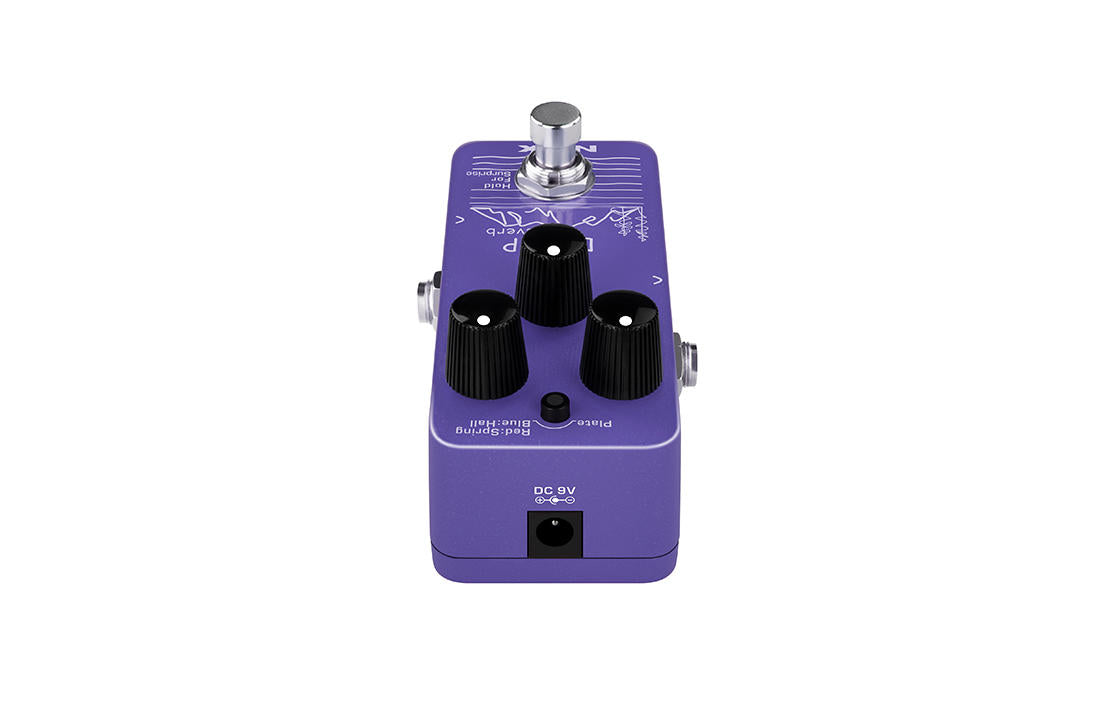

• Power: 9V DC (Negative tip, optional ACD-006A adapter not included)
• Current Draw: less than 100mA
• Dimensions: 94(L) x 51(W) x 53(H) mm
• Weight: 175g
