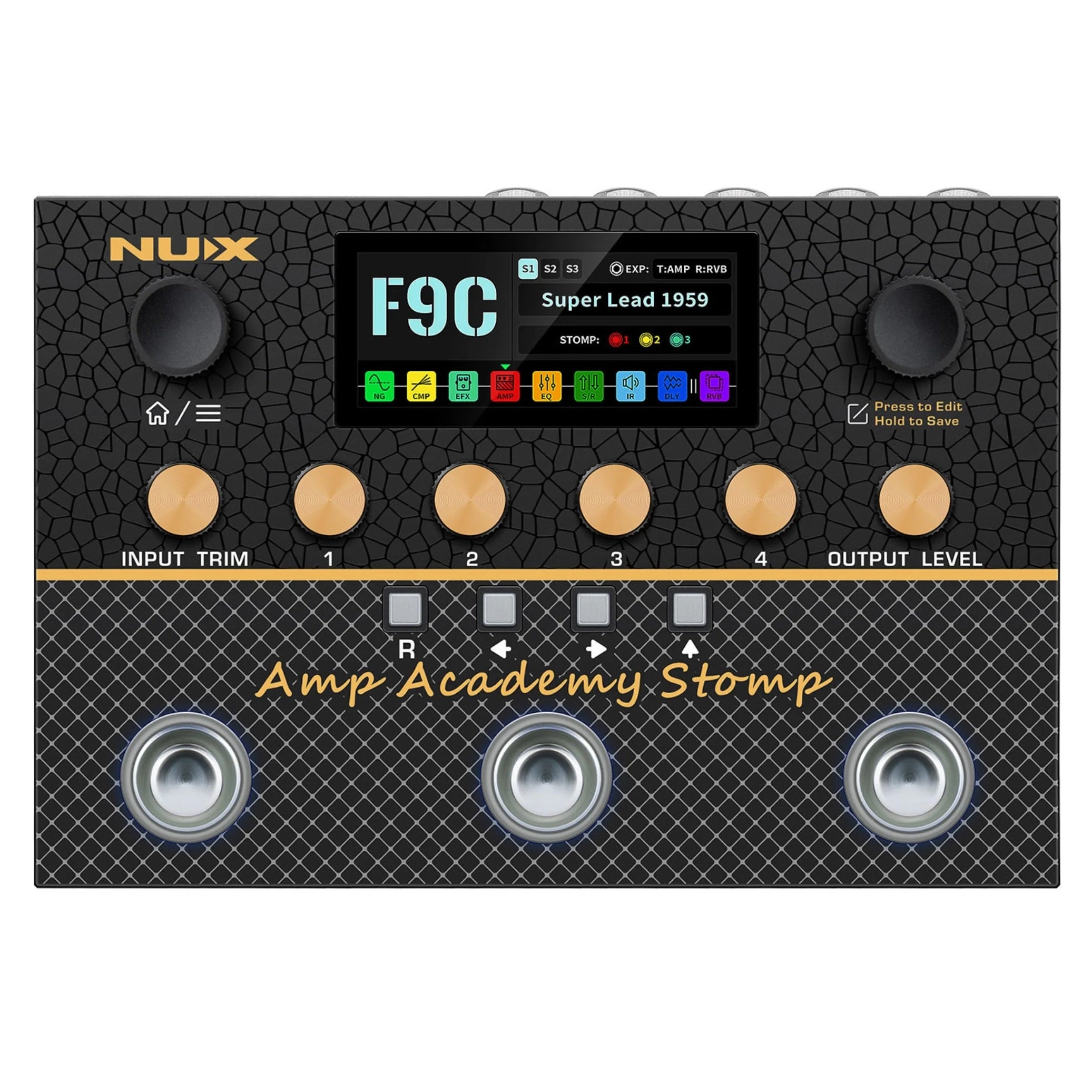

New NUX NMA-3AAP Amp Academy Stomp Multi Effects Amp Modeler Guitar Pedal

From NUX:

Take control of your tone with the Amp Academy Stomp — the ultimate stompbox for guitarists who demand pro studio-level sound and live stage flexibility in a pedalboard-friendly size. Whether you're replacing a full amp rig, streaming from your laptop, or building the ultimate pedalboard, the Amp Academy Stomp gives you full-throttle tone, deep editing and rock-solid build. Step in, plug in, and unleash your sound.

Next-Gen Amp Modeling
NUX's TS/AC 4K channels the soul of tube amplifiers with independent preamp and power amp simulation.

Simplify Profiling with IMAGE
Choose from 3 multi-layer "Deep Image" captures, or upload your own NAM files to further expand your selection of amplifiers.

Stereo CYBER IR Engine
Load dual IRs with independent left/right control, tweak the mic setup — or import your favorite cab impulses for a custom rig.

Customizable Footswitch Layout
Change presets, scenes, or block activations with a single press; expand your control with the included dual-button footswitch.

Full USB-MIDI Support
Easily connect to a DAW or live stream in high quality with 24-bit/48 kHz audio via USB; use MIDI for hands-free patch changes.

Expansive Onboard Effects
Refine your tone with compression, drive, delay, reverb, and EQ blocks, or use the send/return to incorporate external pedals.

Next-Gen TS/AC-4K Dual-DSP Amp Modeling
The Amp Academy Stomp uses next-level amp modeling that simulates every part of a real amp — from the preamp to the power tubes — using two powerful processors acting separately. This separation means both can run independently at full quality with zero compromise or lag. One chip handles amp modeling — simulating tubes, power, and tone stacks. The other chip handles effects (delay, reverb, compression, etc.). The Amp Academy Stomp also uses premium A/D & D/A converters and analog circuits to achieve a clear sound with low noise.

NAM Capture Technology — Modeler & Profiler
With NUX IMAGE Black-Box technology, you can load NAM captures of your favorite amplifiers directly into the device. 3 DEEP-IMAGE multi-layer captures are included, with up to 30 slots for NAM profiles.

Cyber IR Technology
Using advanced impulse response processing, NUX's next-generation Cyber IR Technology faithfully recreates the sound of real amps and speakers — complete with virtual microphone, position, and distance controls. With stereo IR capability and ultra-low latency, the Amp Academy Stomp delivers wide, lifelike sound that responds instantly to your playing.

Create Your Ideal Signal Chain
The Amp Academy Stomp gives you nine flexible effect blocks — including noise gate, compressor, modulation, amp, EQ, send/return, cab IR, delay, and reverb — that can be arranged in a wide variety of combinations. Run delay and reverb in Serial Mode for cavernous echoes or Parallel Mode for cleaner ambient patches.

30-Second Stereo Looper
Capture and loop up to 30 seconds of stereo audio. Record manually or use Auto Record for effortless live looping, and choose Pre or Post placement in your signal chain. With the optional NBT-1 Bluetooth Module and companion iOS/Android app, you can adjust effects and tone remotely, even while the loop plays.

USB-C Audio & MIDI
The Amp Academy Stomp is also a fully featured USB audio interface and MIDI controller. Record in 24-bit/48 kHz clarity directly to your computer or mobile device. Control presets, sync tempo, and automate parameters from your DAW or MIDI controller.

Balanced TRS Outputs
Send clean, noise-free stereo signal straight to front-of-house or monitors — backed by rugged metal construction.

Specifications
Pedal Type: Amp Modeling, Multi-FX
Analog/Digital: Digital
Sampling Rate: 48kHz / 32bit
System Latency: < 2ms
Input/Return Impedance: 1MΩ
AUX IN Impedance: 10kΩ
Output L/R Impedance: 100Ω (Balanced)
SEND Impedance: 1kΩ
Phones Out Impedance: 10Ω
Input to Output L/R Dynamic Range: 111dB

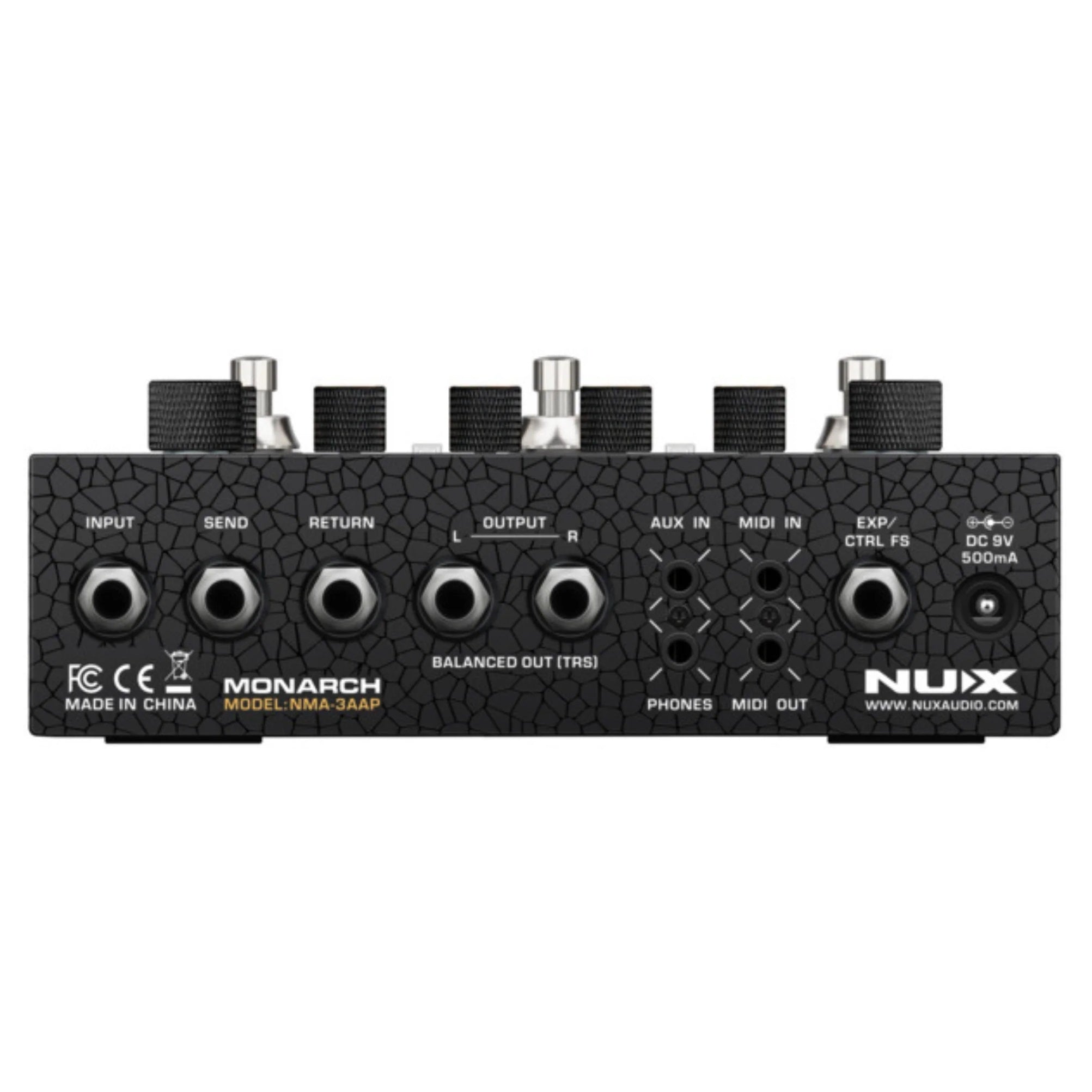

Connections
Instrument Input: 1/4" jack
Send / Return: 1/4" jack
Output L & Output R: 1/4" jack
Aux Input: 1/8" mini jack
Headphone Output: 1/8" mini jack
MIDI In & MIDI Out: 1/8" mini jack
EXP/CTRL Footswitch: 1/4" jack

Dimensions: 7.2 x 1.2 x 2.6 inch
Weight: 2 lb

What's Included
1 x Amp Academy Stomp, 1 x NMP 2-Lite Footswitch, 1 x USB-C Cable, 1 x Patch Cable, 1 x MIDI Conversion Cable, 1 x Power Adapter, 1 x NBT-1 Bluetooth Audio & MIDI Adapter
