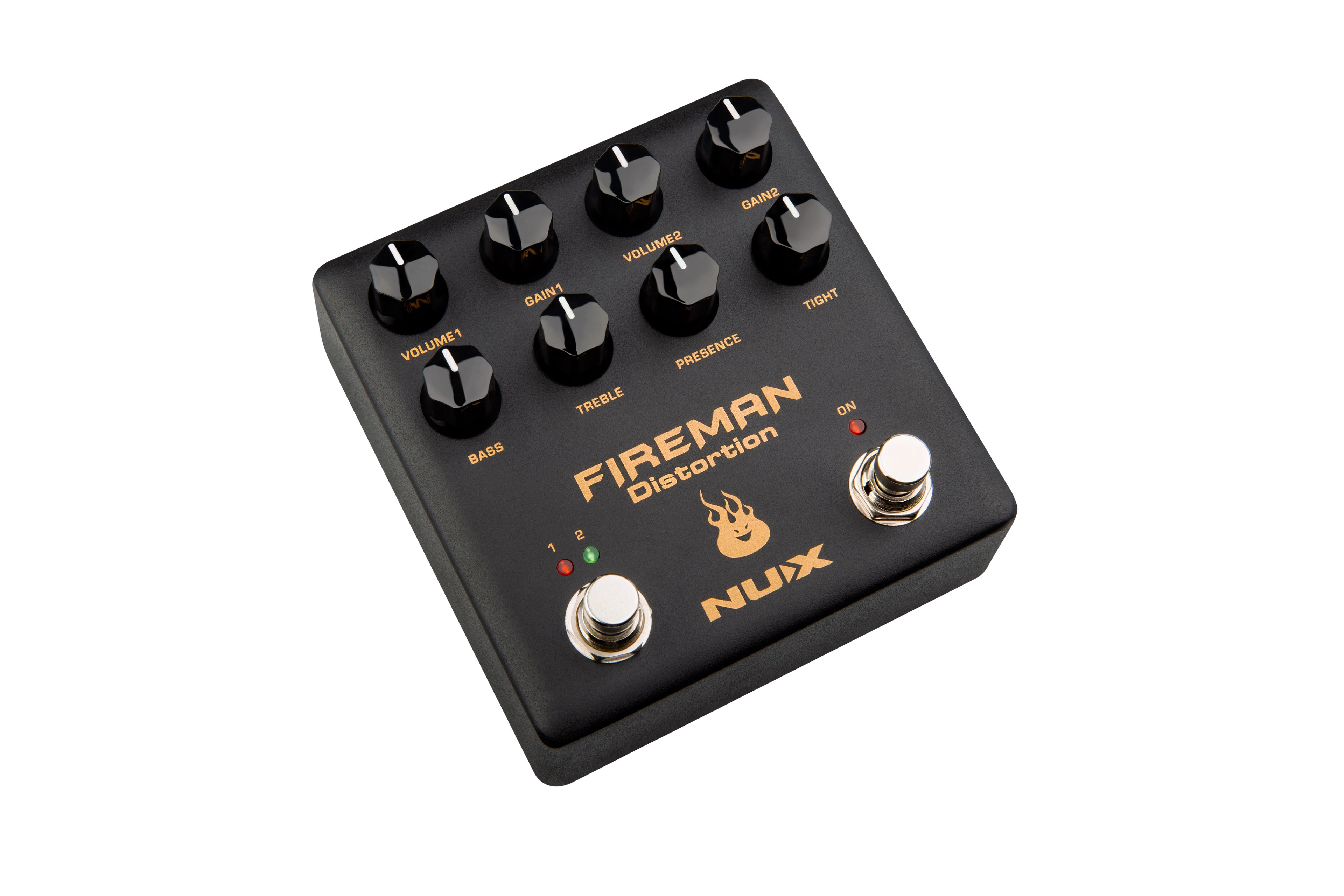

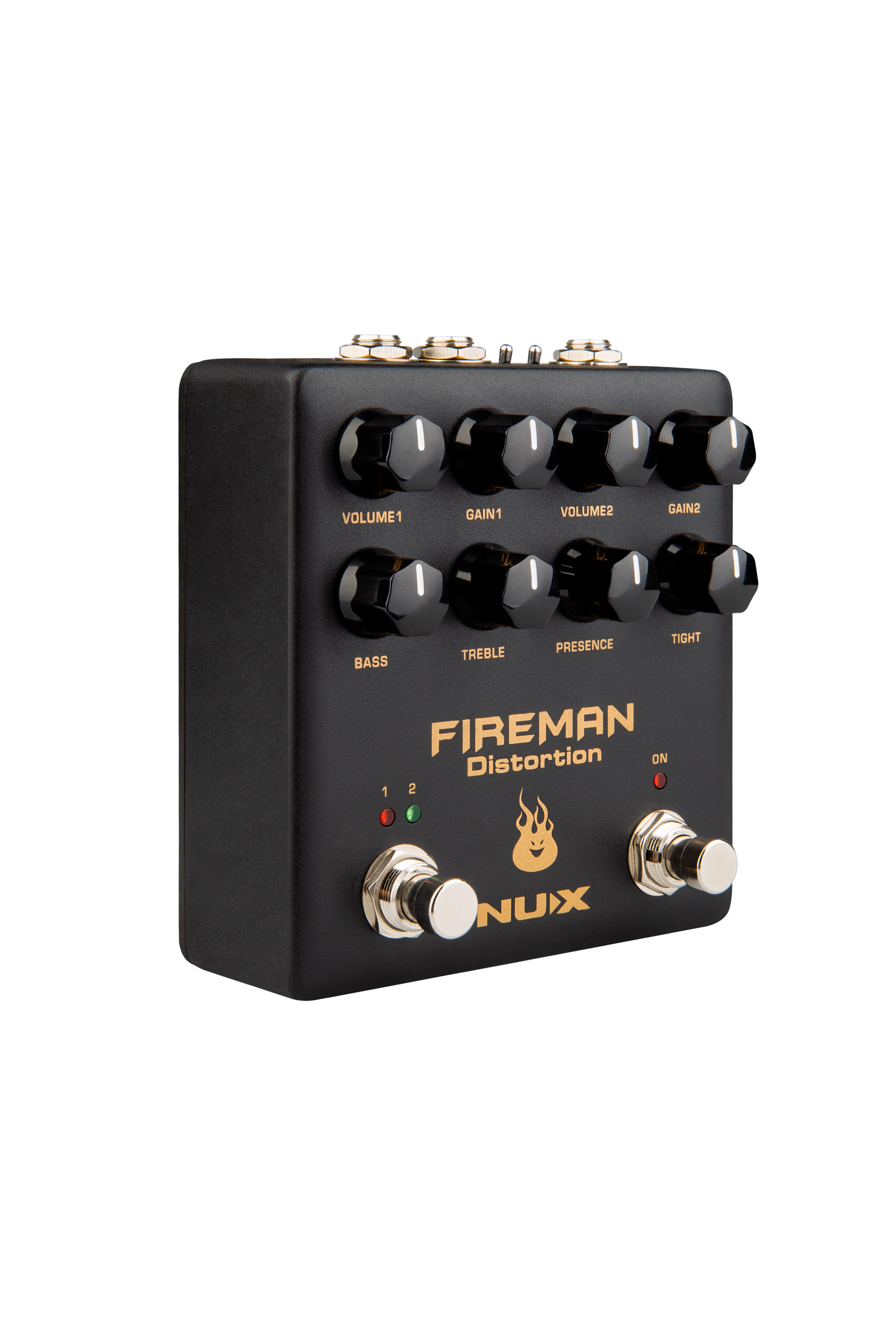

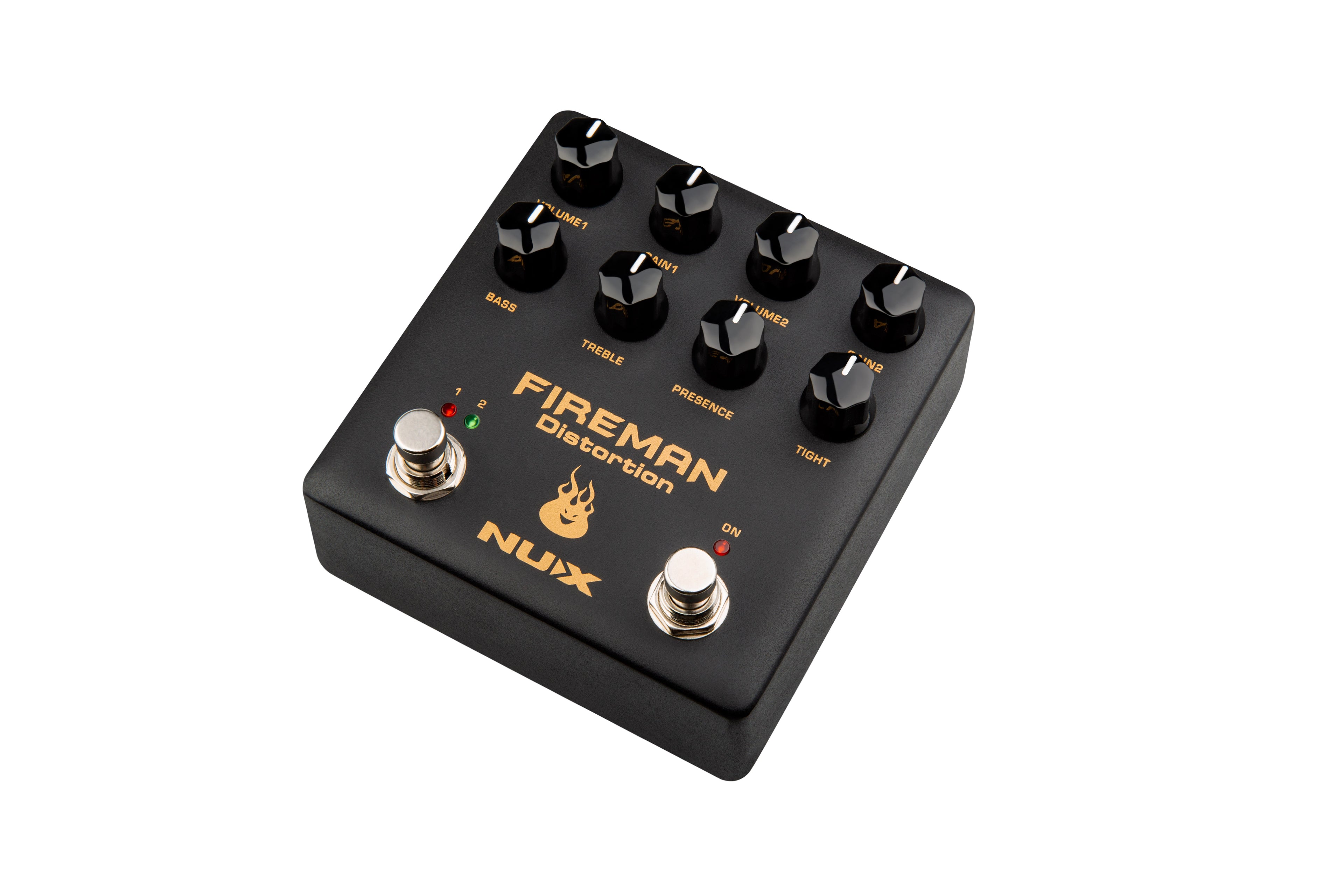

New NUX NDS-5 Fireman Distortion Guitar Effects Pedal

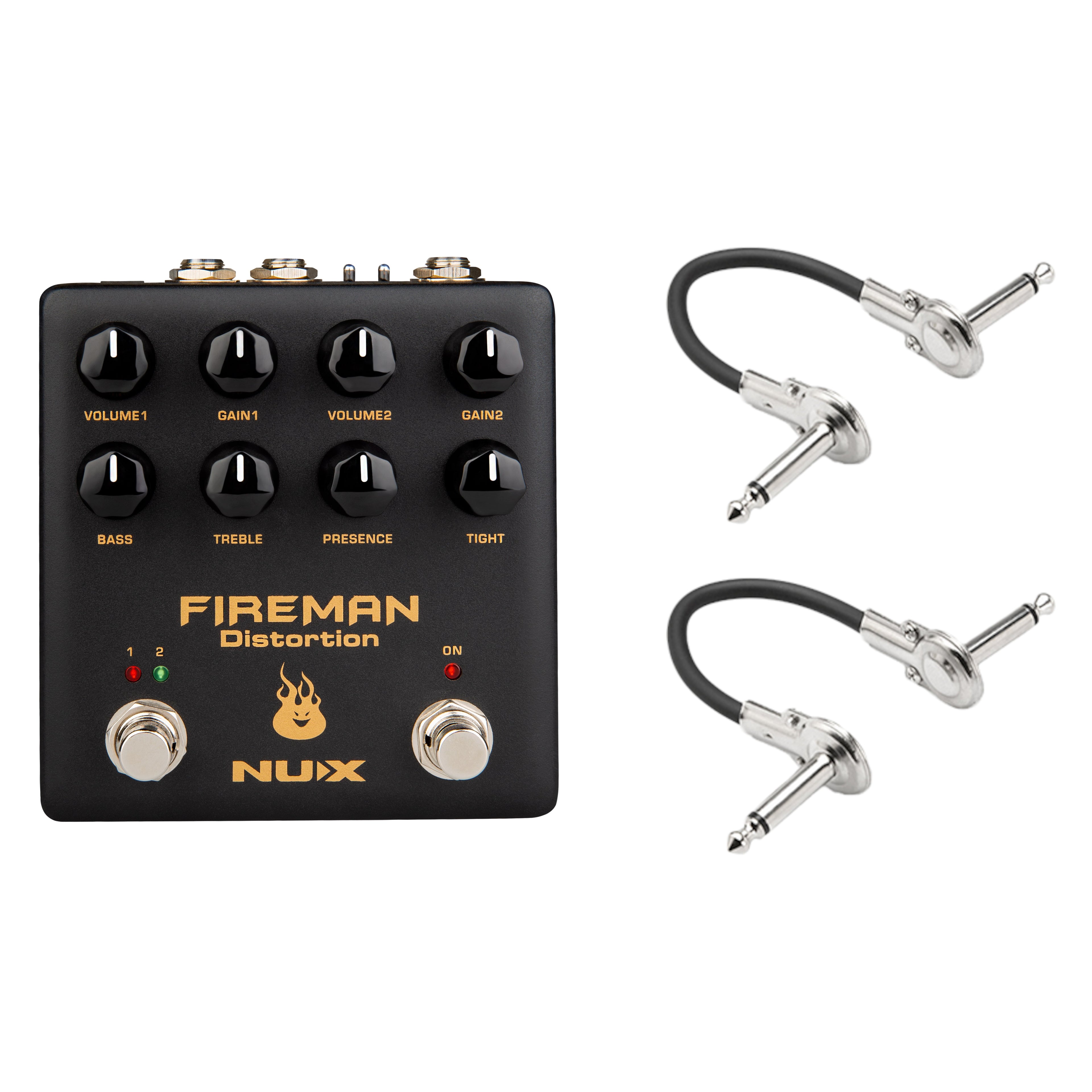

Includes two Hosa metal patch cables (IRG-100.5).

This item is new, in box.

FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp-like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME and GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch, and a 9V / 18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range.

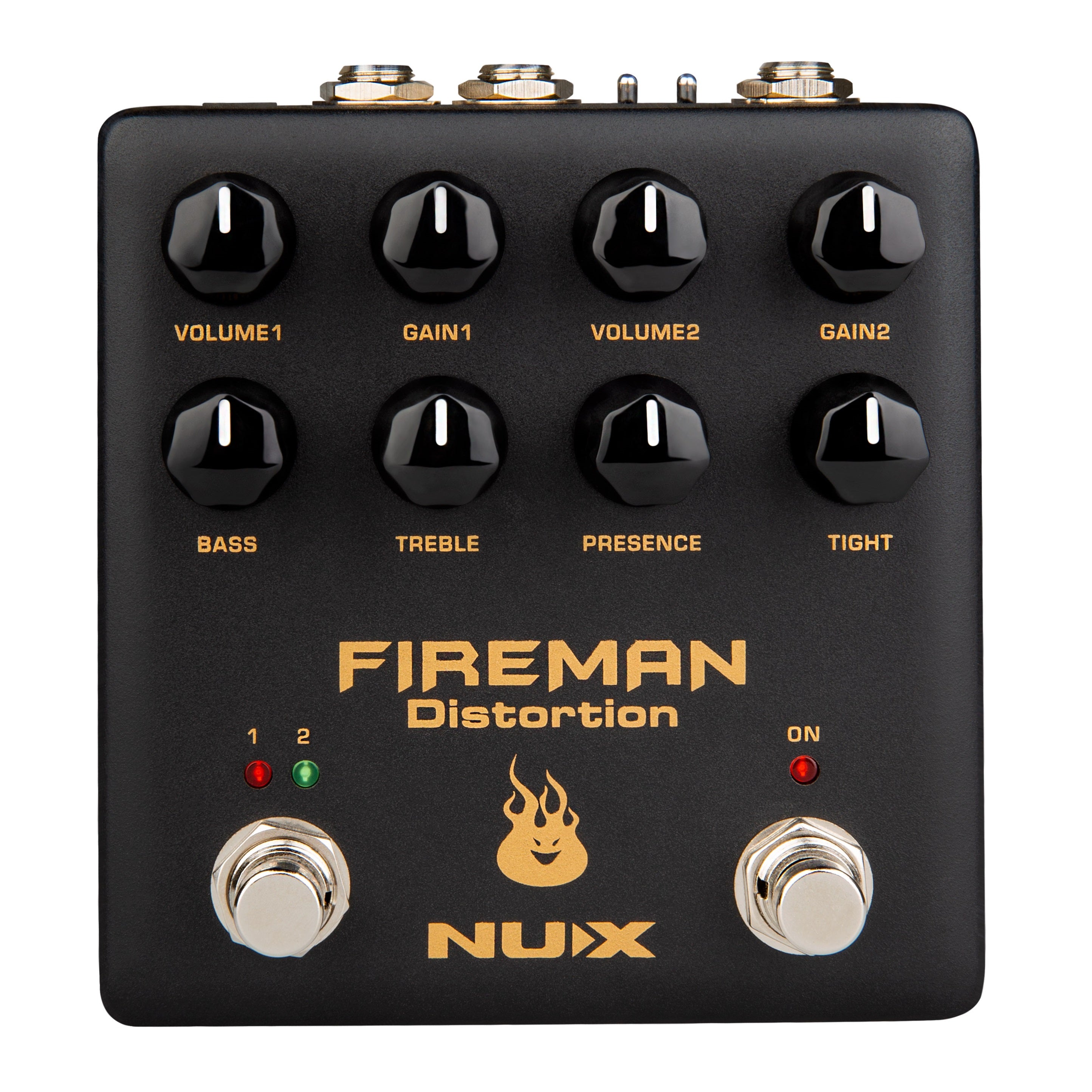

Controls

BASS: Adjusts the low-end response of the distortion sound.
TREBLE: Adjusts the high-end response of the distortion sound.
PRESENCE: Adjusts the ultra-high-end frequency of the distortion sound.
TIGHT: Shapes the low frequency content (turn it down to tighten the sound).
VOLUME1: Adjusts the output level while in Channel 1.
GAIN1: Adjusts the distortion of the sound while in Channel 1.
VOLUME2: Adjusts the output level while in Channel 2.
GAIN2: Adjusts the distortion range of the sound while in Channel 2.
1/2 Foot-switch: Chooses the current Channel, 1 or 2.
ON Foot-switch: Engages or disengages the distortion sound.

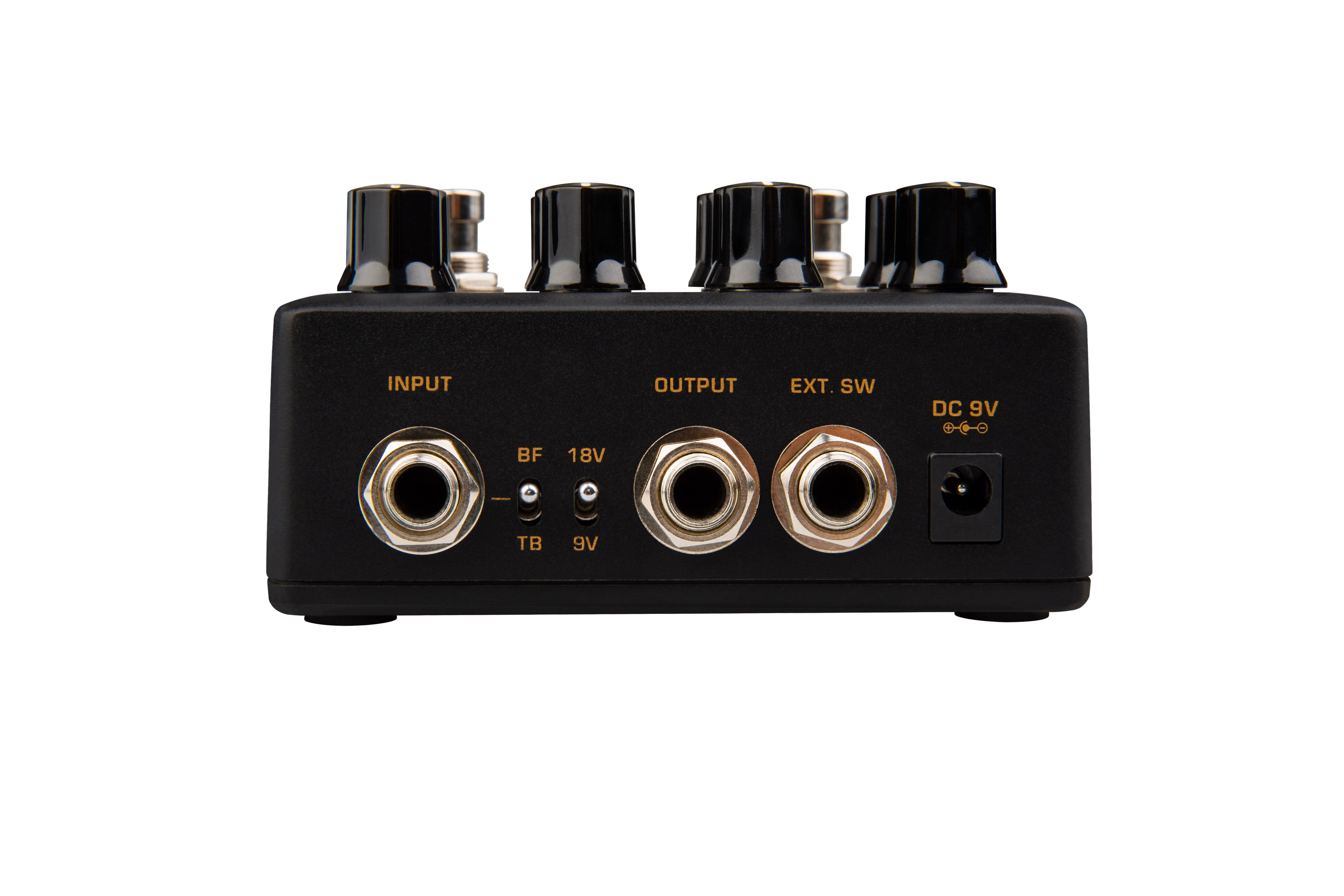

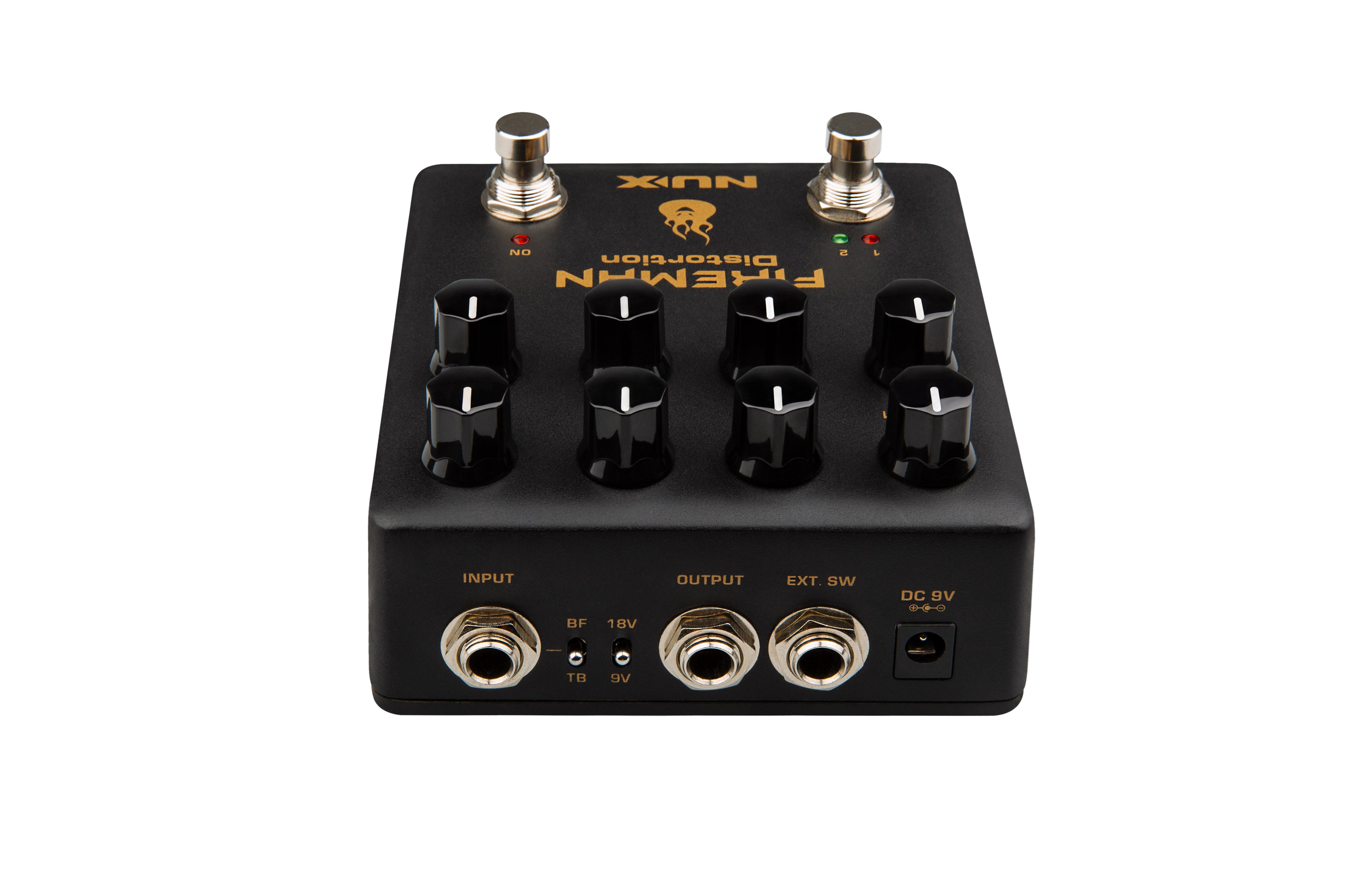

I/O

INPUT: Connects with your guitar or the signal from the guitar side.
OUTPUT: Connects with the amplifier or to the amp side.
EXT. SW: Connects with TRS dual foot-switches to replace the 2 foot-switch functions on the pedal.
BF/TB Toggle Switch: BF means Buffer-bypass, TB means True-bypass.
18V / 9V Toggle Switch: The pedal uses 9V power; choose the 18V position to double the working voltage inside for wider dynamic range.
DC Jack: Connects with 9V Negative Tip power with 100mA adaptor.

Highlights

• Modern Brown Sound in a box.
• True-bypass / Buffer-bypass toggle switch.
• 18V / 9V toggle switch for different dynamic range.
• 2 independent GAIN and VOLUME knobs for rhythm / solo application.

Specifications

• Frequency Response: 20Hz~20kHz ±1dB
• Input Impedance: 2.2MΩ
• Output Impedance: 1MΩ
• Power Supply: 9V DC, Negative Tip (ACD-006A)
• Dimensions: 105(L) × 115(W) × 58(H)mm
• Weight: 460g
