New NUX NDR-5 Atlantic Delay & Reverb Guitar Effects Pedal

This item is new, in box.

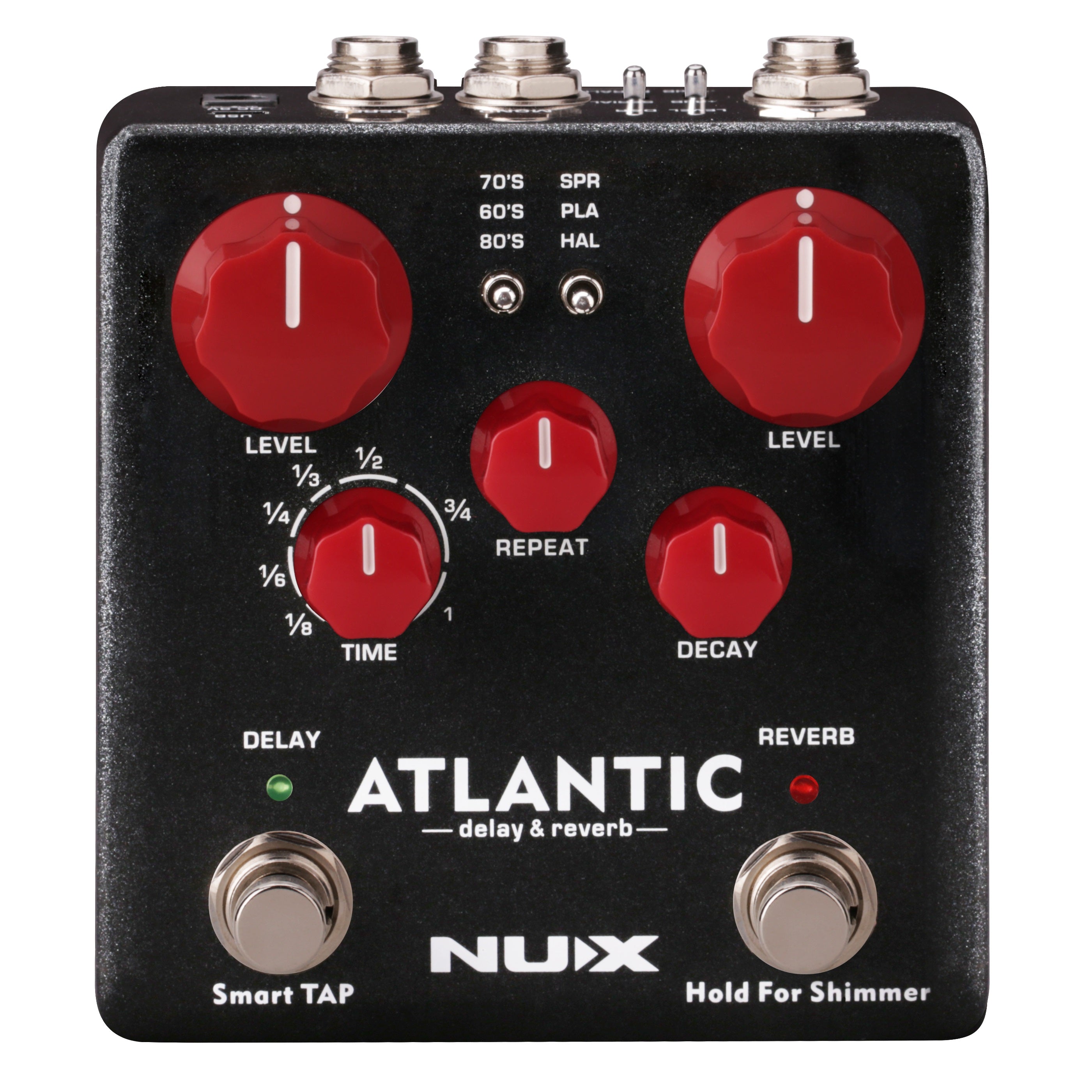

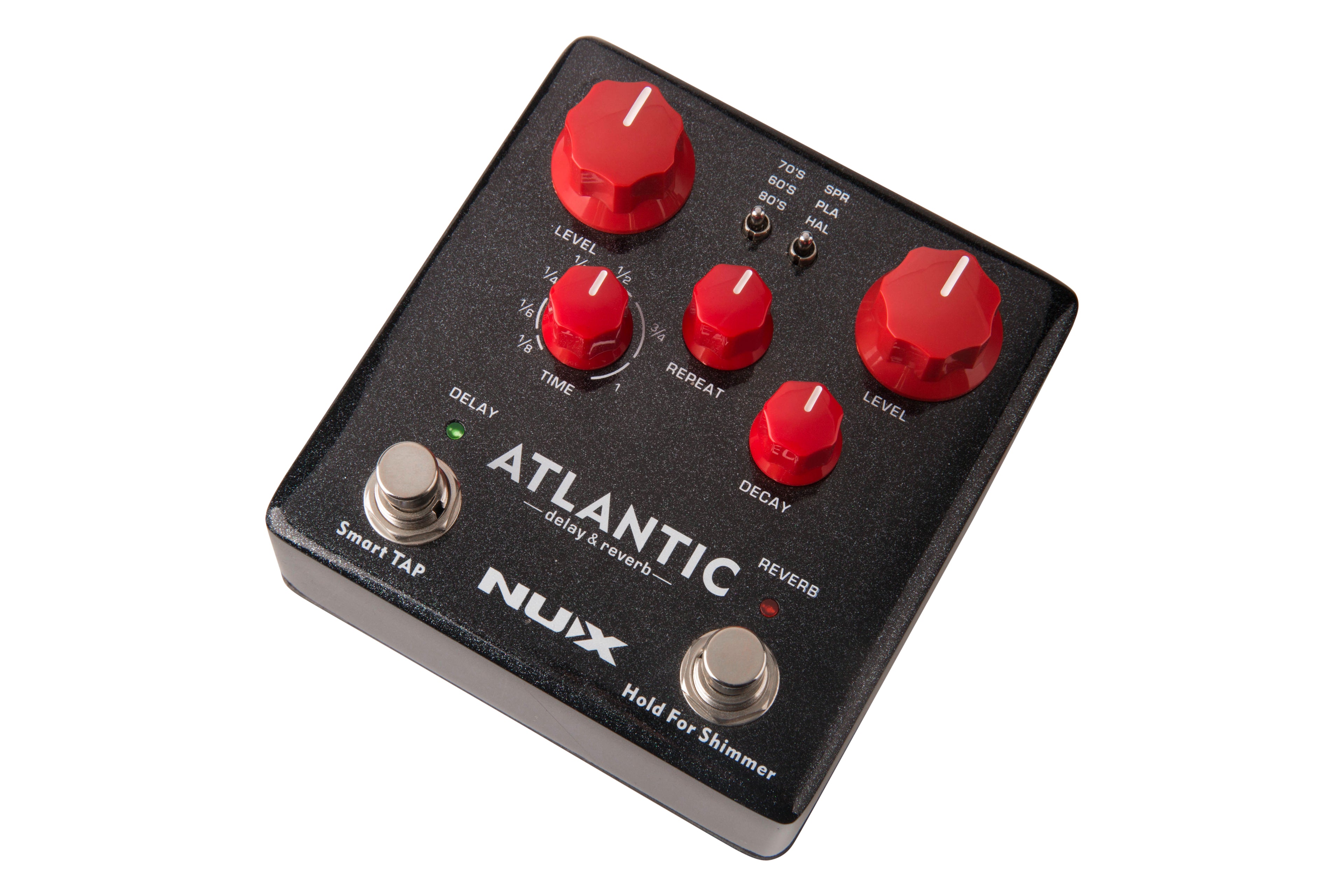

NUX Atlantic Verdugo Series Delay / Reverb Guitar Effects Pedal

Multi Delay and Reverb effect pedal with inside routing and secondary reverb effects. One of the best Delay and Reverb algorithms in a metal box. Special select 3 classic Delays & 3 classic Reverbs, and we added bonus “Shimmer” and “Freeze” effects which let you create a dreamy waterfall shimmer—especially handy for intros, interludes, and endings. And now, because of NUX’s latest Core Image Technology, the new Verdugo Series effect pedals offer pro-level sound enhancement.

NUX Atlantic Delay effects

70’s (40ms - 400ms): Retro-delay meets modern technology, without losing the realistic BBD-effected repeats, so essential for capturing the 70’s retro feel.

60’s (55ms - 550ms): A warm & dusty tape-echo machine effect, packed with an array of analog-only goodies. Saturated colors that turn any sound into vintage. Tweak the Repeat knob to the max and use the Time knob to get an experience just like the real Tape-Echo Machine.

80’s (80ms - 800ms): A digital era invention, crystal clear repeats. Digitally-copied clean repeats carry your signal with absolutely zero color particles. This is the best option if you don’t want to mix your favorite chorus with another colorization effect or your favorite modulation effect.

SMART TAP TEMPO: Instantly synch-up your delays with the tempo you want to accompany. Simply tap the tempo with your foot. TAP TEMPO speed range is 125ms - 1500ms for all delay types.

Before you set the TAP TEMPO, use the Time Knob and choose any desired time signature to change the TAP division. When TAP TEMPO is engaged, your repeats will create a delay pattern according to the selected time signature.

NUX Atlantic Reverb effects

The Atlantic has 3 types of reverb effects and each type has a secondary effect. When any of the reverb effects is ON, hold down the reverb footswitch to activate the secondary effect.

Spring Reverb & Freeze: Creates a polyphonic atmosphere filter that catches the sound reflections from deep down a spring reverb tank. You can adjust the tank size with the level knob and set the reflection distance with the decay knob. When the effect is ON, holding down the reverb switch delivers infinite sustain as long as you hold the footswitch.

Plate Reverb & Shimmer: Straight and clean reflections inside a flat-walled room. You can control the room-size with the Level knob and then tweak the delay bounce point with the Decay knob. If you hold down the Reverb switch, straight reflections will be heated and swirled throughout the inside of the room creating a Shimmer effect.

Hall Reverb & Freeze: The sound of a well-designed hall. Whether the hall size is big or small, the reflections will be emitted by wall furniture. You can adjust the interior hall-size, from a small garage to a huge structure, with the Level knob and increase or decrease the number of objects on the walls with the Decay knob. Less decay means more objects and faster reflection fading.

Inside Routing

The NUX Atlantic Delay & Reverb pedal also has inside routing-control between the effects so you can choose which effect comes first. On Serial Mode, you can create a deep-reflection reverb with wet or dry repeats, or you can split your guitar signal and add both effects in the parallel chain. Each effect will be mixed with separated dry signals.

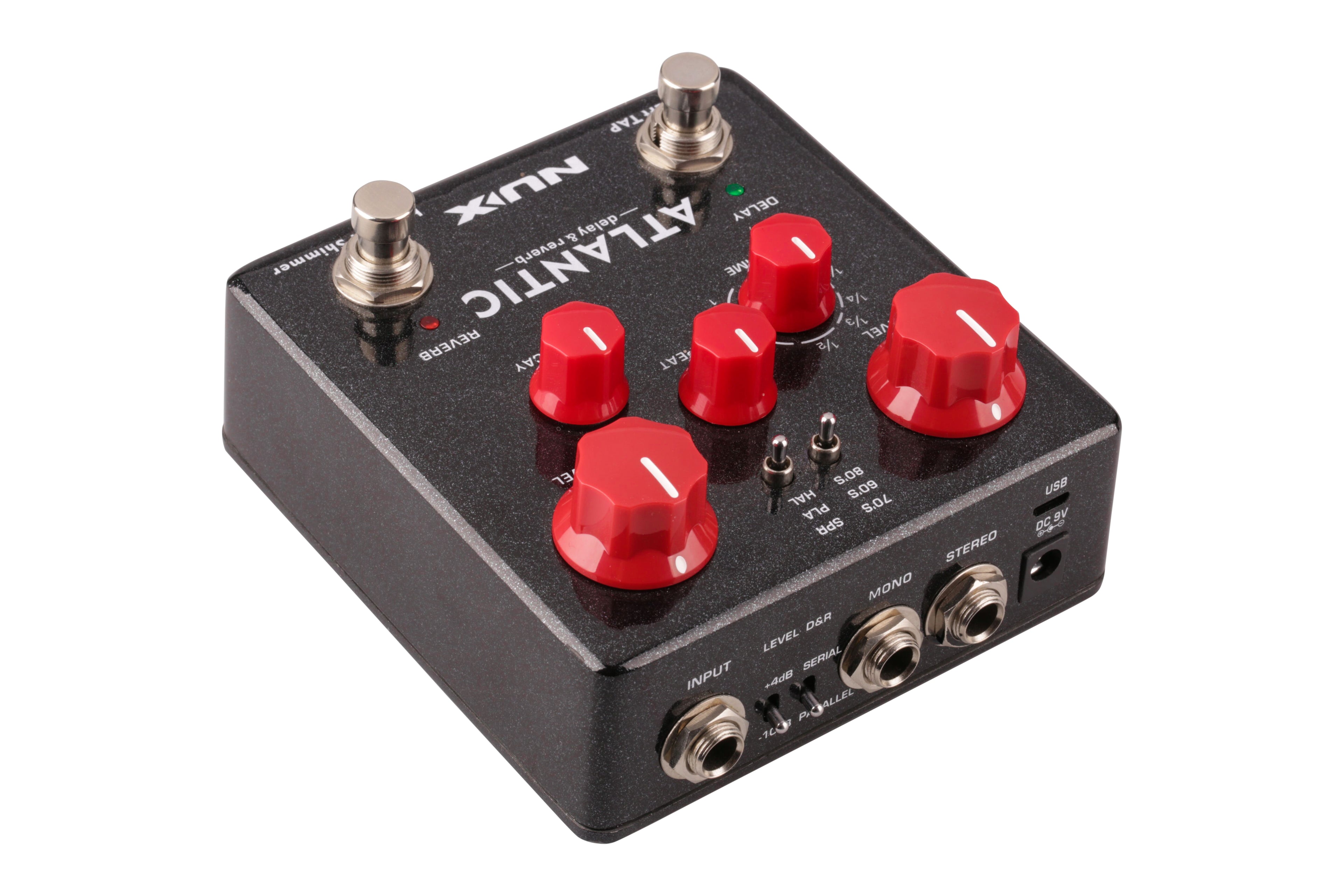

Input/Outputs

It has a 6.35mm stereo input and 2 outputs for the ultimate delay and reverb experience. By plugging a TRS cable into the pedal's input, you can add the Atlantic to any effect chain via Send/Return connection by using a “Y” cable or “Insert” cable. It has an Input Level toggle switch, so you can optimize the input signal with your signal level. It adjusts the input impedance; if the input signal is too loud, switch to +4 dB to increase the headroom.

Features

• 3 typical Delays with Smart Tap Tempo and sub-division
• 3 great Reverbs with secondary function by holding foot-switch
• Versatile routing options
• 3 Delay Effects - 70’s Analog, 60’s Tape and 80’s Digital
• Delay Level, Time and Repeat
• TAP TEMPO w/ Tap Subdivision Options
• 3 Reverb Effects - Spring, Plate and Hall
• Reverb Level and Decay
• Plate Reverb with Shimmering Effect
• TRS Input - Effect Loop Connection via Insert or “Y” cable
• Input Level Switch (-10dB / +4dB)
• Parallel or Serial Output and Inside Routing
• Stereo Output
• USB Port for firmware updates
