New NUX NDO-5 Ace of Tone Dual Overdrive Guitar Effects Pedal

Ace of Tone Dual Overdrive

ACE of TONE is a dual overdrive pedal stacked with Tubeman MKII and Morning Star. Why? Because great guitarists love 2 overdrives to stack their tone.

In the left corner~ Tubeman with FAT mode. Tubeman offers way more clarity and gain than any classic Tubescreamer, and we modified the circuit with a useful secondary function by simply holding the foot switch~ FAT mode. It cranks way more bass response to enhance the low-end yet makes the tone warmer!

In the right corner~ Morning Star with SHINE mode. Morning Star is based on legendary Bluesbreaker circuit: very transparent, low gain drive. It also features a simple FOOT SWITCH HOLD to engage the iconic SHINE mode. In SHINE mode, you can get way more treble sound to make your tone crystal-clear.

Versatile routing and toggle switches. You can adjust the order as MS->TM or TM->MS. On the top side, you can toggle BF/TB switch for Buffer-Bypass or True-Bypass, and 9V/18V switch to 18V for internal double voltage for wider dynamic range.

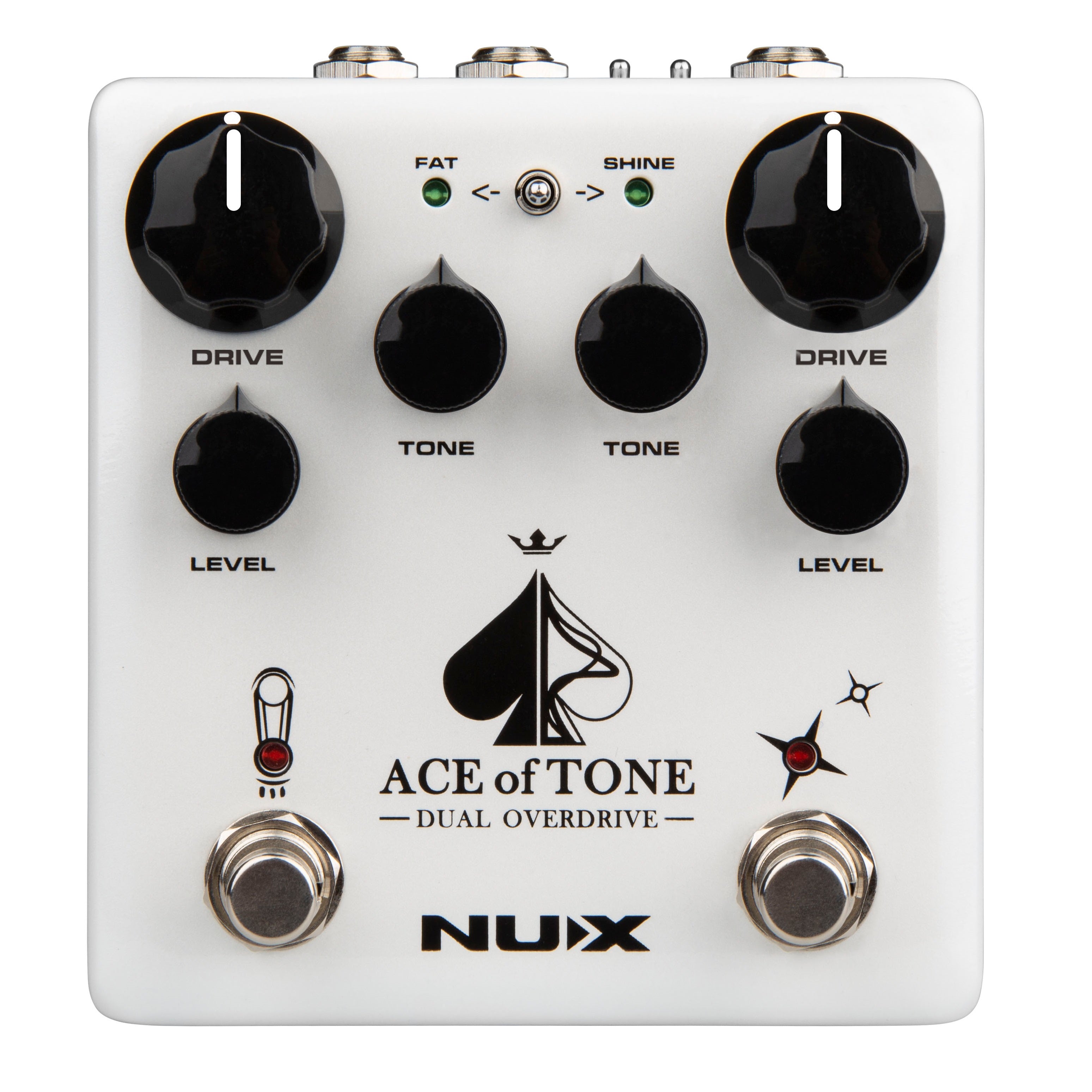

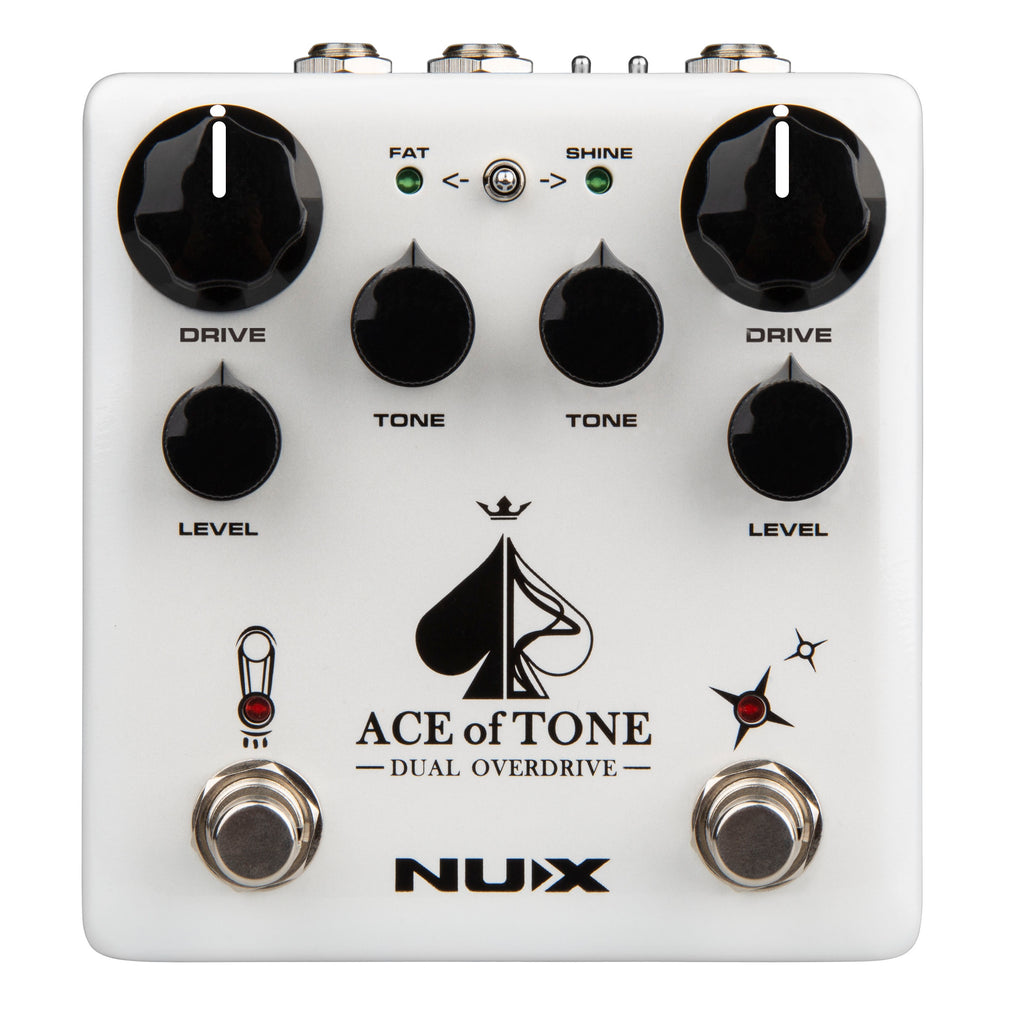

Control Panel

Left side (Tubeman)

DRIVE Knob: Controls the gain of Tubeman circuit.

TONE Knob: Controls the treble frequency of Tubeman circuit.

LEVEL Knob: Controls the volume of Tubeman circuit.

Footswitch: Engage/disengage Tubeman circuit. Hold it for 1 second to turn on/off FAT mode.

FAT Indicator: While FAT mode is engaged, the indicator turns on.

Right side (Morning Star)

DRIVE Knob: Controls the gain of Morning Star circuit.

TONE Knob: Controls the treble frequency of Morning Star circuit.

LEVEL Knob: Controls the volume of Morning Star circuit.

Footswitch: Engage/disengage Morning Star circuit. Hold it for 1 second to turn on/off SHINE mode.

SHINE Indicator: While SHINE mode is engaged, the indicator turns on.

Routing Toggle Switch: Adjust the order from Morning Star to Tubeman or Tubeman to Morning Star. It is very useful to stack the sound.

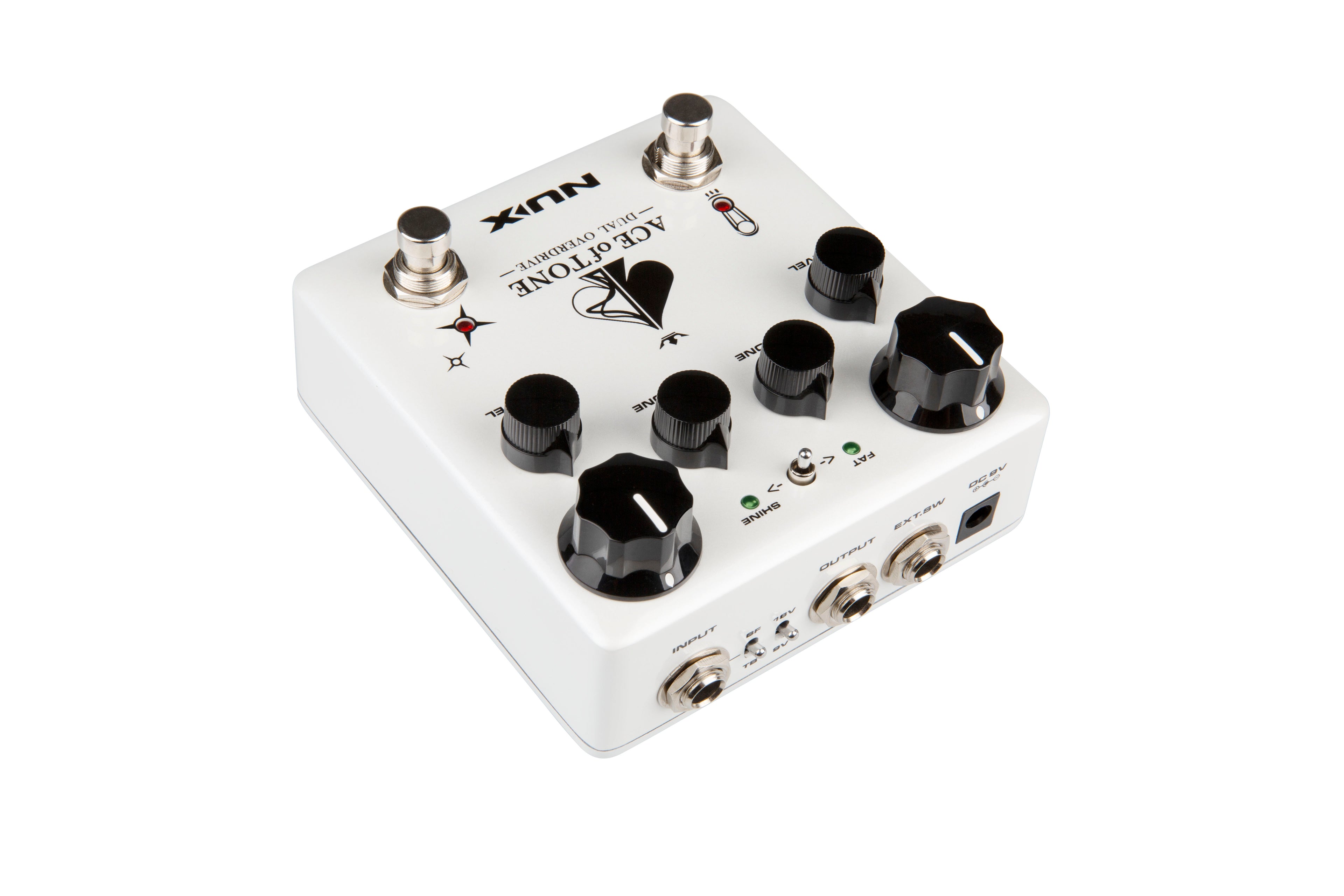

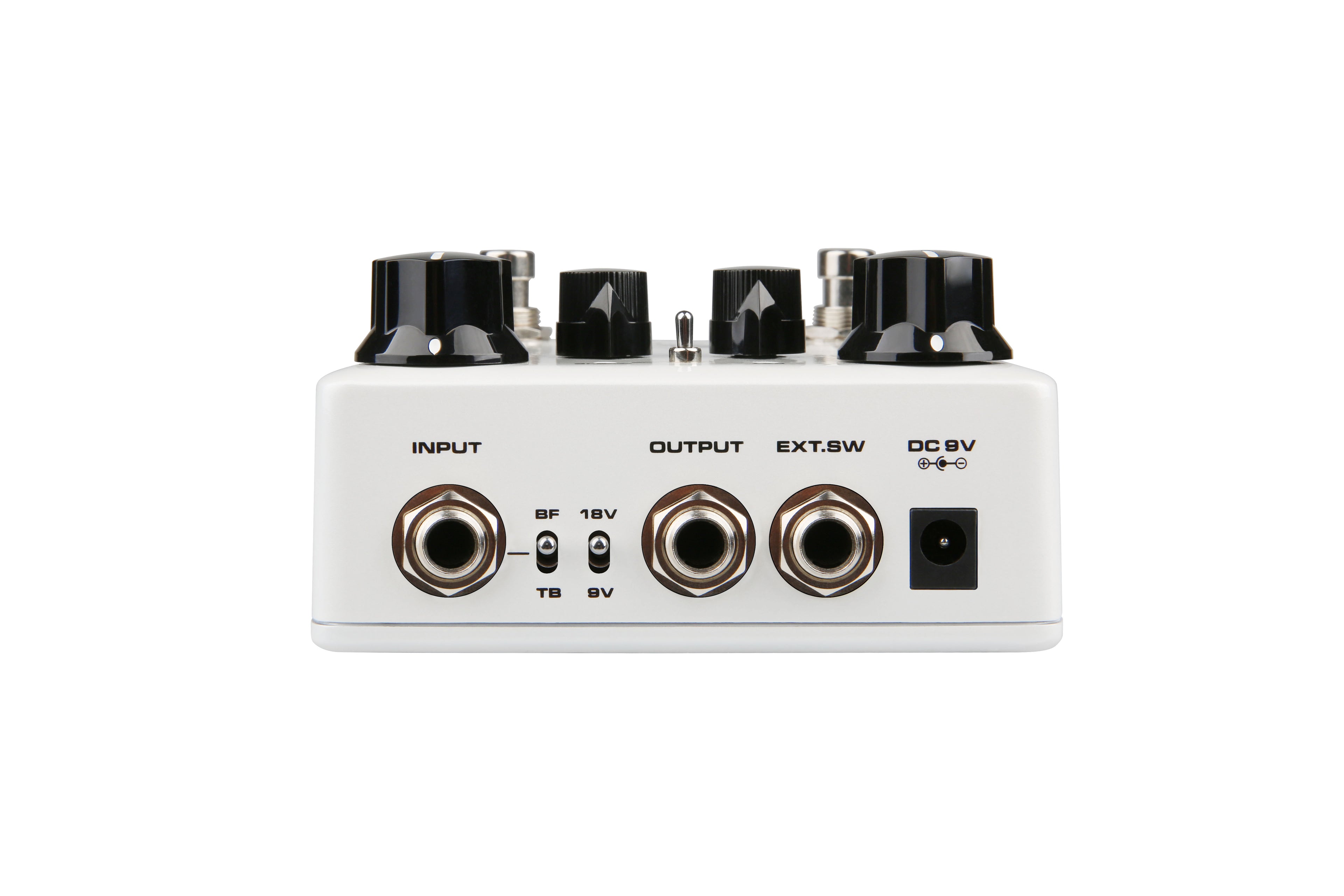

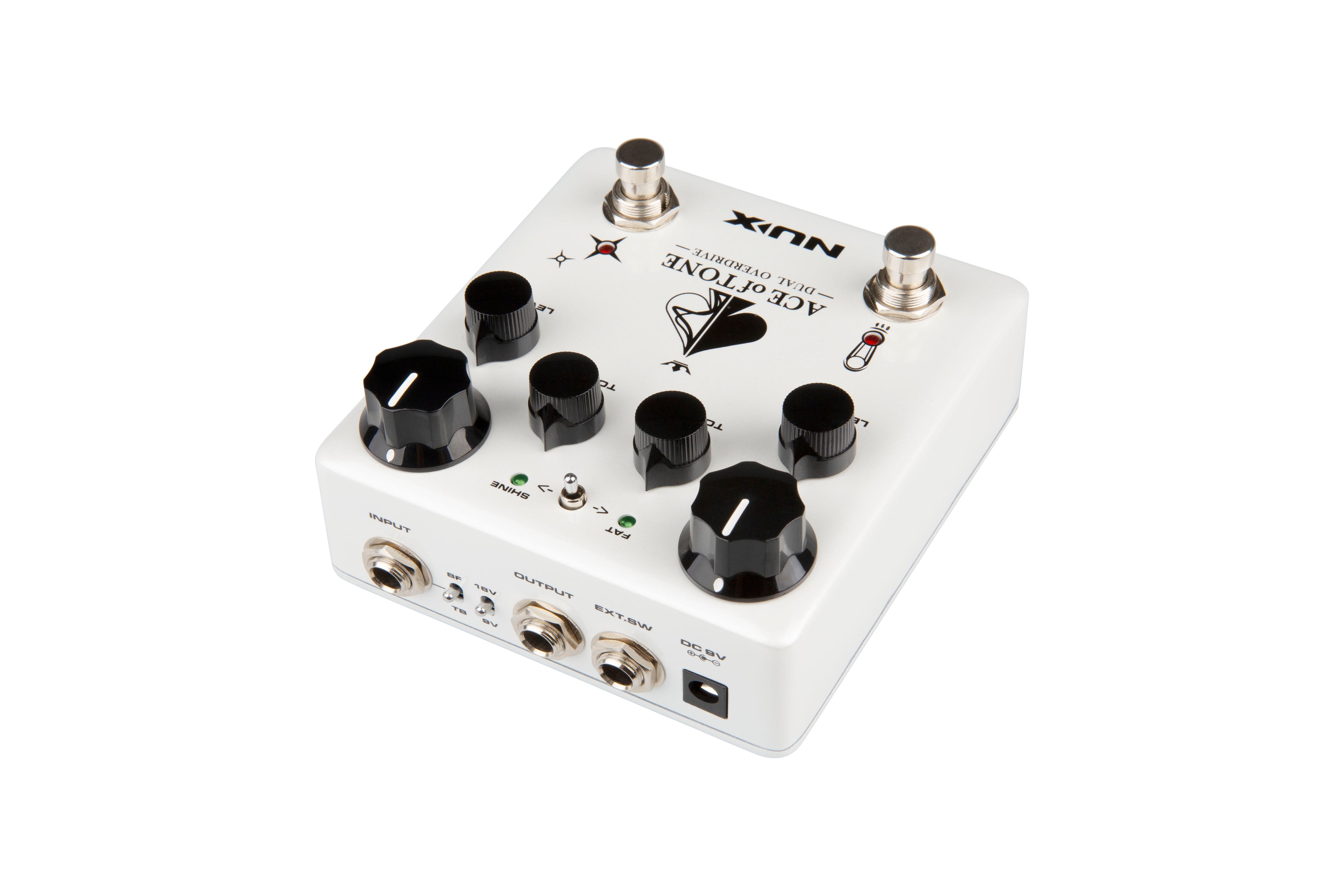

I/O

Input: Connect your guitar to the INPUT jack.

Output: Connect the OUTPUT signal to the amp side.

EXT. SW: Use an external foot controller (like NUX NMP-2) to remote this pedal.

BF / TB Toggle Switch: BF means Buffer-Bypass, TB means True-Bypass. Choose BF when connecting with several pedals in your signal chain to solve tone-loss situations.

18V/9V Toggle Switch: ACE of TONE can double the voltage internally when toggled to the 18V position, increasing dynamic range and headroom.

DC Jack: Use ONLY 9V Negative Tip power with 100mA.

Features

• 2 classic overdrive circuits in one compact enclosure.
• Versatile modes and routing design to enhance tone variety.
• Input Impedance: 2.2MΩ
• Output Impedance: 1kΩ
• Power: 9V DC (Negative tip, optional ACD-006A adapter)
• Current Draw: less than 100mA
• Dimensions: 105(L) x 115(W) x 58(H) mm
• Weight: 440g
