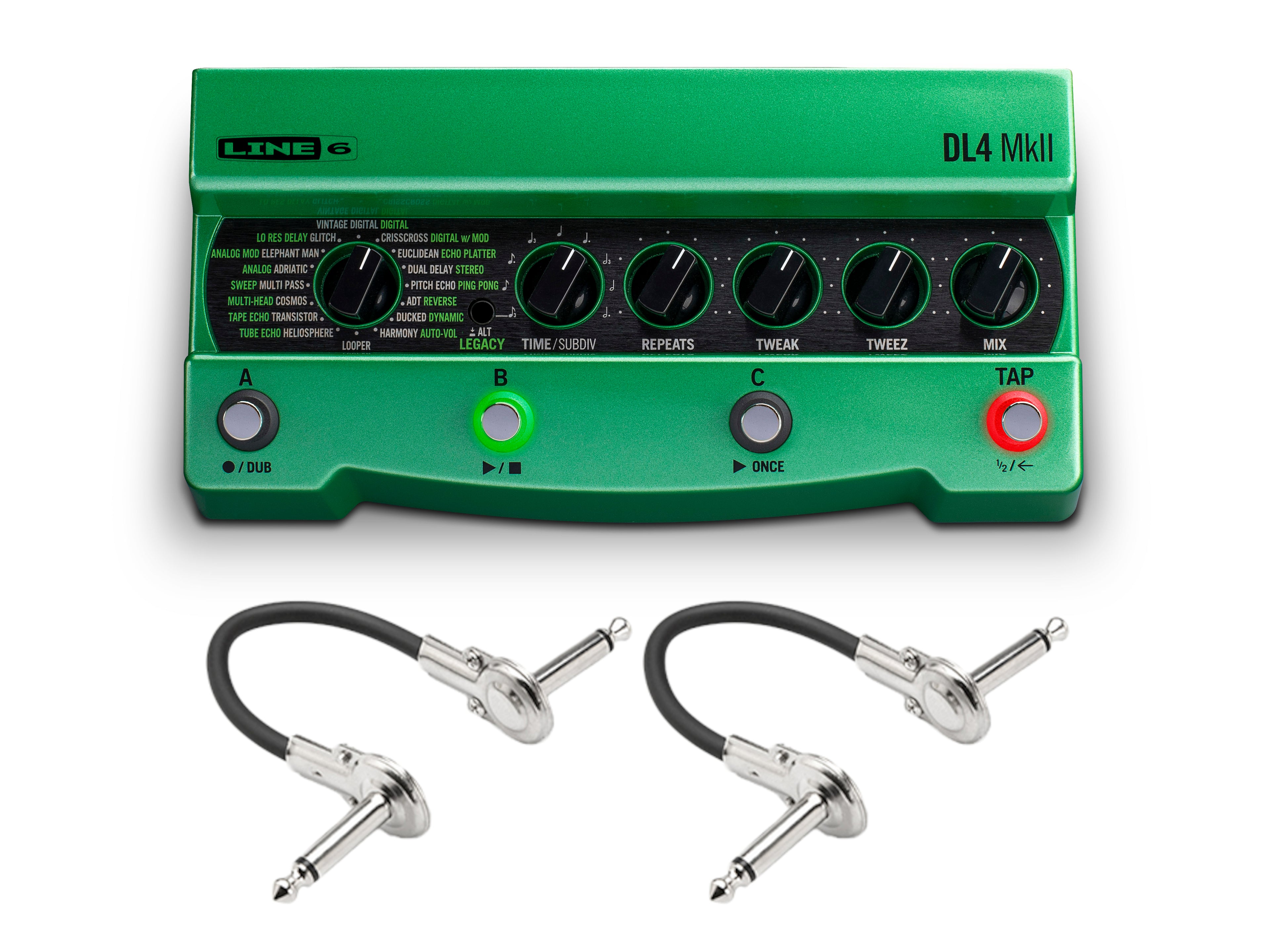

New Line 6 DL4 MkII Little Green Time Machine Delay Modeler Guitar Effects Pedal

Includes two Hosa patch cables (IRG-100.5).

The DL4 Delay Modeler has remained one of the most widely used delay pedals in the world for more than two decades — embraced by everyone from casual players to superstars. The DL4 was the first pedal to offer a broad selection of delay models based on vintage tape echo devices such as the Maestro EP-1 Echoplex and the Roland RE-101 Space Echo, classic analog delay stompboxes such as the Electro-Harmonix Deluxe Memory Man, and even the Binson Echorec and studio staple TC Electronic 2290 Dynamic Digital Delay. These were complemented by several Line 6 originals, including the exceptional Reverse delay — and the DL4 also boasted a highly intuitive "14 Second Loop Sampler" that is still considered one of the most engaging loopers ever made.

The DL4 MkII honors that legacy by including every one of those original sounds and features, and retaining the same knob and footswitch layout, so there's no need for DL4 users to learn any new moves — but the DL4 MkII also introduces many new sounds and features that bring it fully into the 21st century. The 15 MkII delays were drawn from our HX family of amp and effects processors and include Line 6 originals such as Harmony Delay, Pitch Echo, Euclidean Delay, Glitch Delay and ADT tape delay, as well as 4-Switch and 1-Switch loopers with up to 240 seconds of record time, expandable to several hours using an optional microSD card.

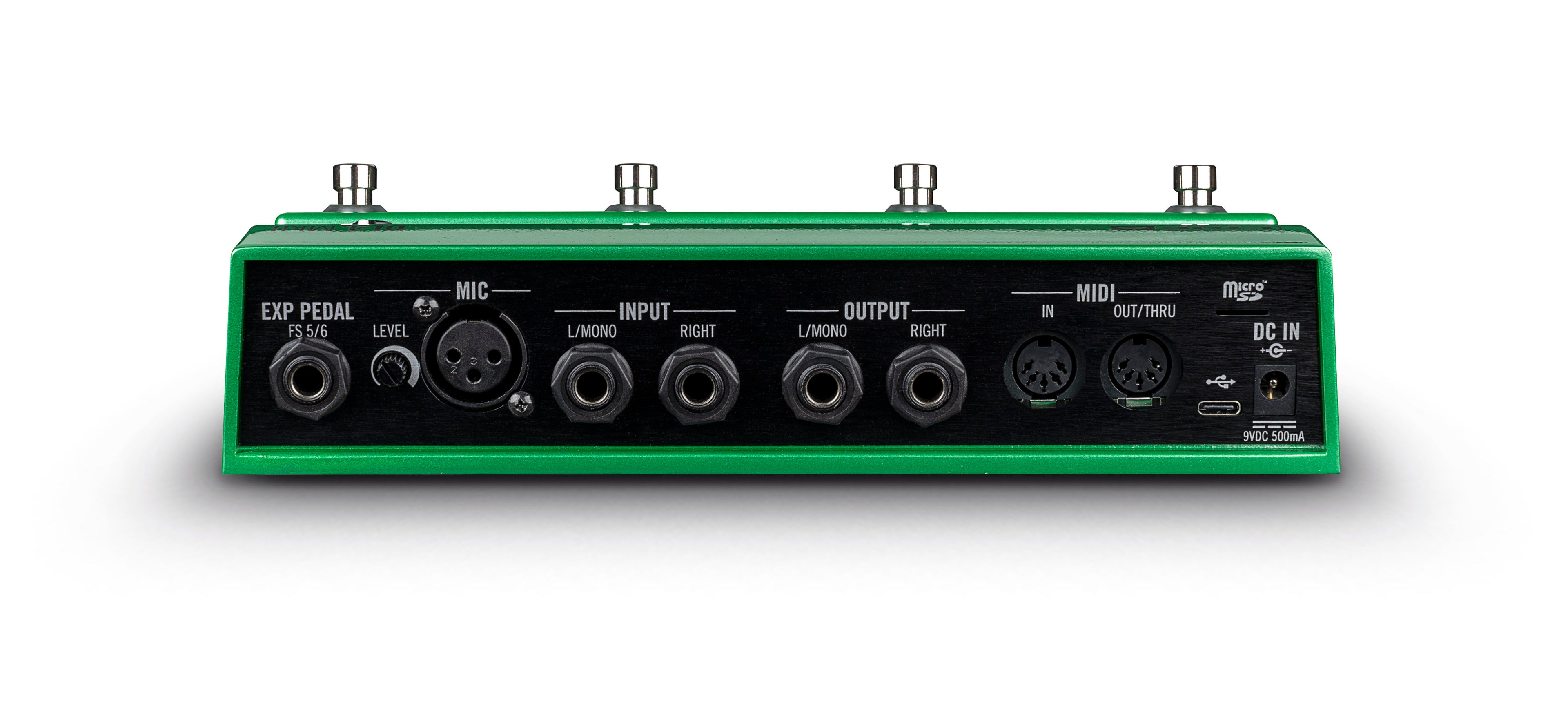

The DL4 MkII also features an XLR dynamic microphone input for vocal processing and looping; MIDI capabilities such as real time parameter control and preset selection (up to 128) via its MIDI In and Out/Thru DIN connectors; four heavy duty footswitches with colored halo rings; and switchable true, buffered, or DSP bypass. There's also a jack for connecting an optional expression pedal or two assignable external footswitches. Although the DL4 MkII does everything that the original DL4 does (other than run on batteries), plus so much more, it is considerably smaller and lighter.

Highlights

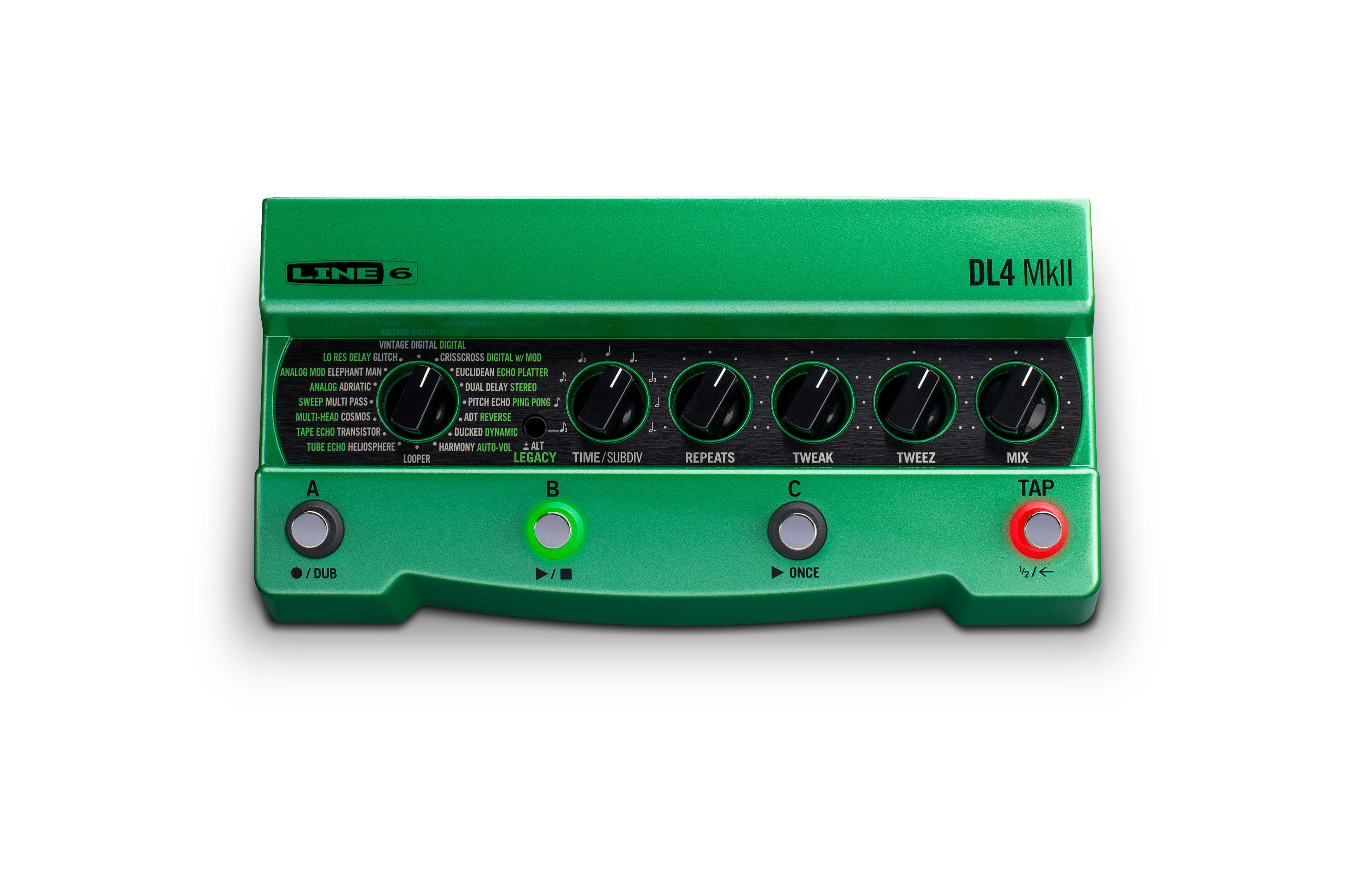

• Identical knob and footswitch layout as the original DL4
• 30 delay options: 15 new MkII plus 15 Legacy DL4
• 2 loopers — mono/stereo and pre/post signal path options
• Up to 240 seconds of looping time, or several hours with optional microSD card
• XLR dynamic microphone input for vocal processing and looping
• MIDI In, Out/Thru DIN connectors — receives PC and CC messages
• 128 presets via MIDI, with footswitch control of up to six
• Switchable true, buffered, or DSP bypass
• Input for optional expression pedal or two additional footswitches
