New JAM Pedals Delay Llama Xtreme Guitar Pedal w/ CTRL Box Remote Controller

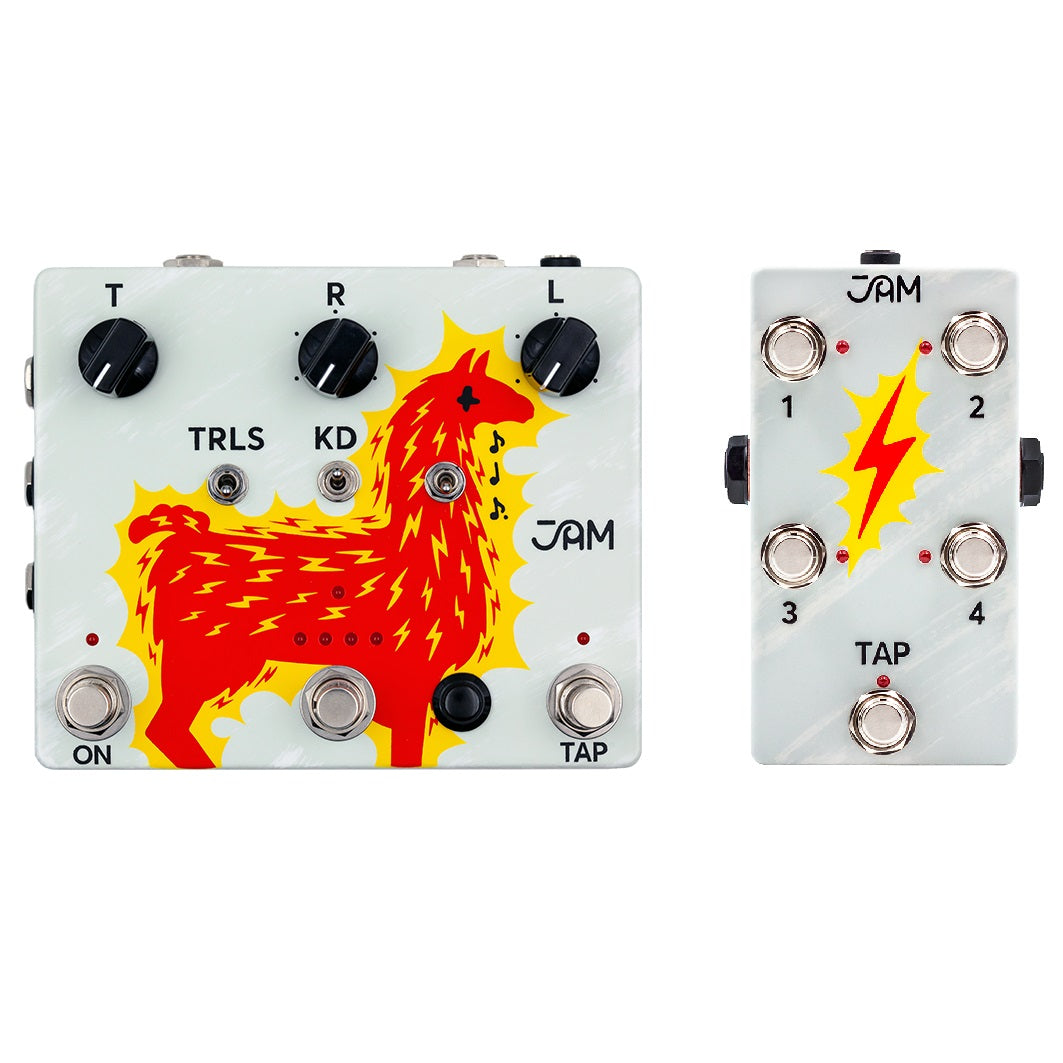

JAM Pedals Delay Llama Xtreme Analog Delay Guitar Effects Pedal with JAM Pedals CTRL Control Box Remote Controller

This item is new, in box.

From JAM Pedals:

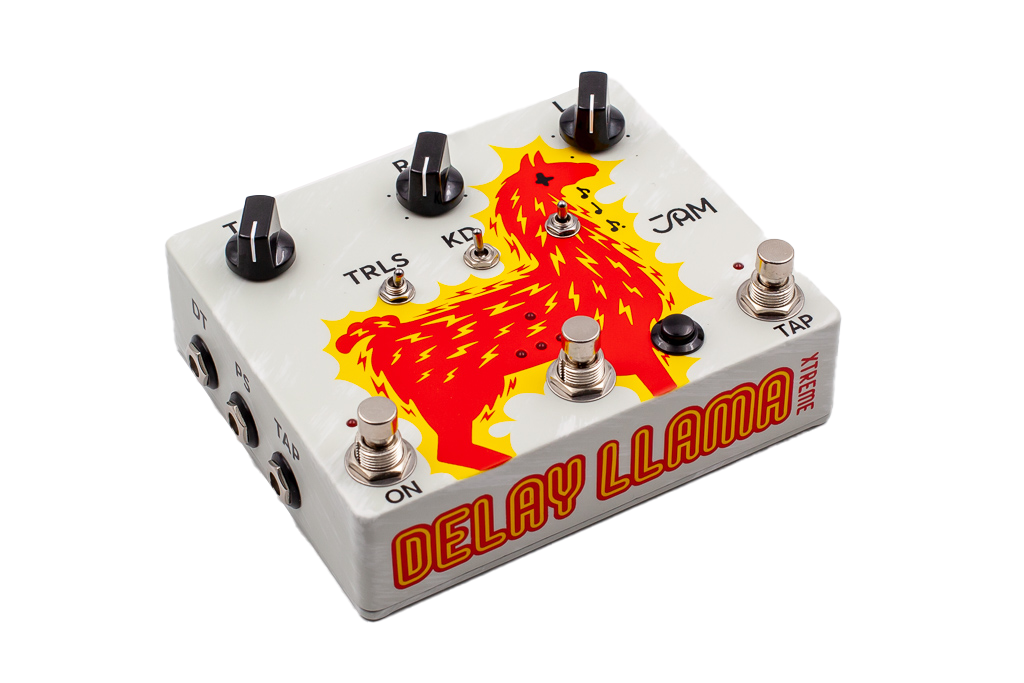

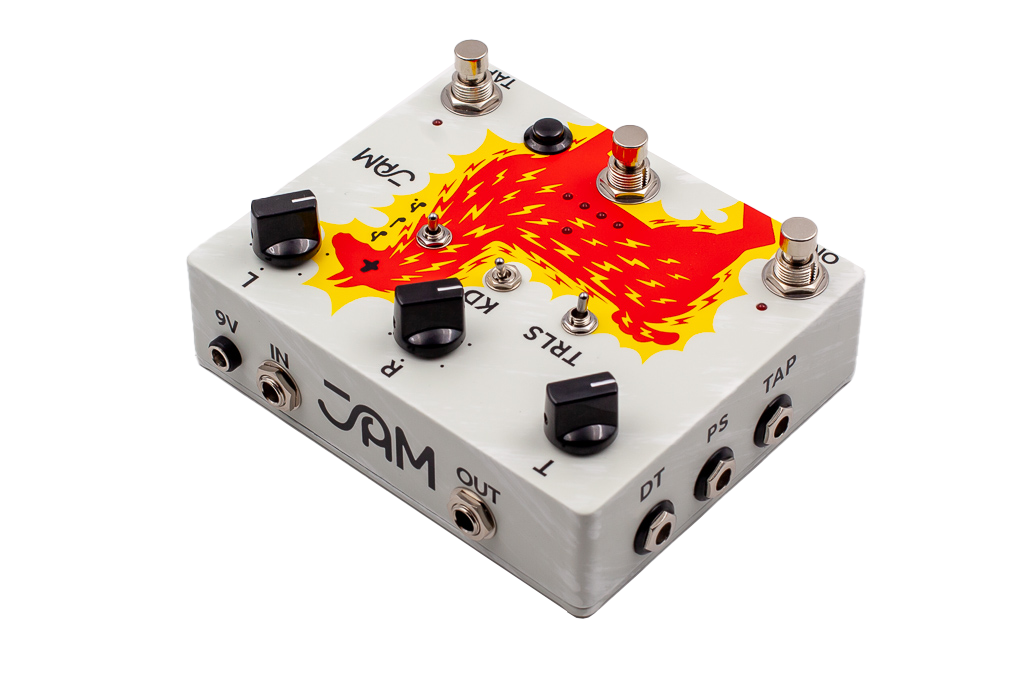

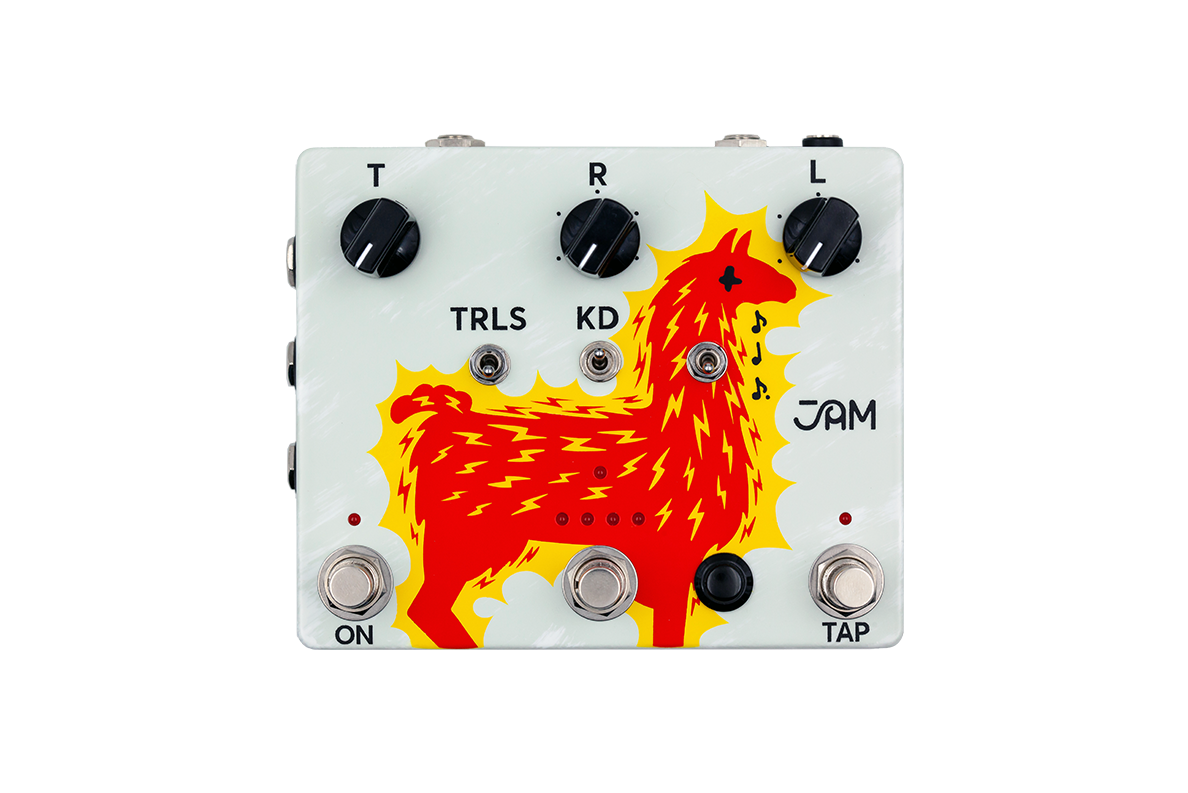

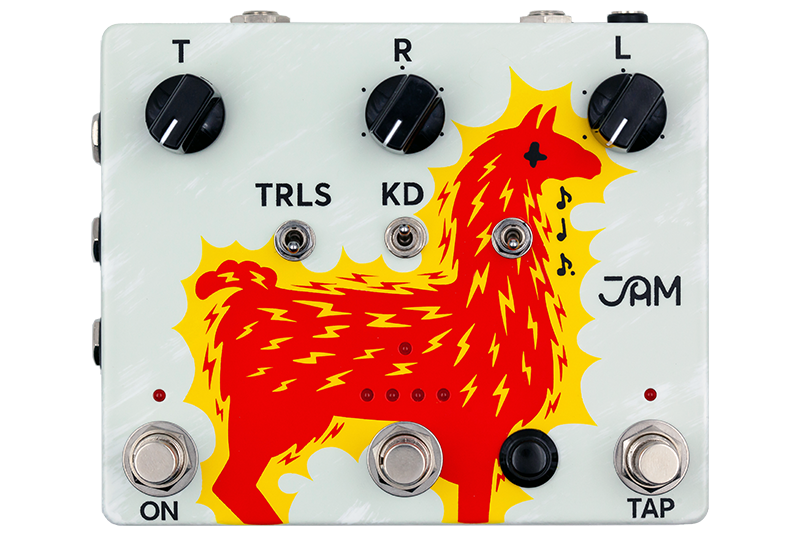

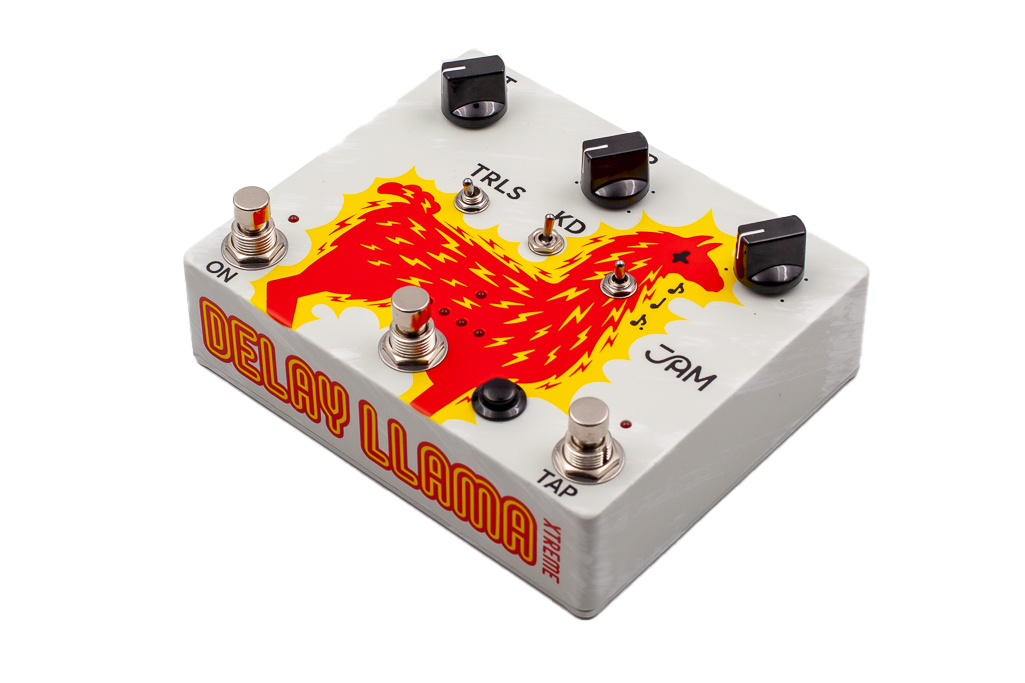

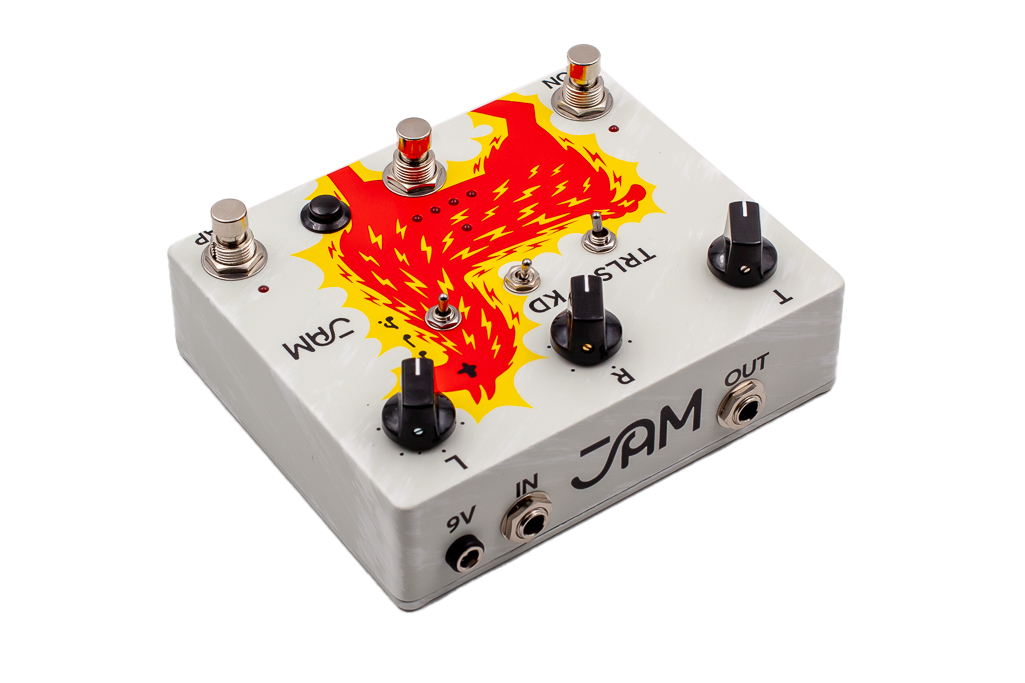

Delay Llama Xtreme

The Delay Llama XTREME introduces new functionality and exciting features to our Delay Llama series, challenging preconceived notions of what an analog delay pedal can do. Featuring 3 x 3205 BBD chips and a thoughtful layout, the Delay Llama XTREME appeals to traditional delay users and sound explorers alike.

It comes equipped with 4 presets, 800ms of max. delay time, tap tempo w/ subdivisions, hold function, kill-dry, trails (buffered) OR true bypass modes, delay time expression pedal / CV input, remote tap tempo input and remote preset selection input. It also features 4 trail effects you can get lost in for hours on end!

These 4 XTREME modes are the result of JAM experimenting with the Delay Time and musically taming it to create inspiring trails effects.

Vibrato: sine-wave LFO modulation w/ controls for Depth and Speed

Tape-age: this mode emulates the slight and random pitch variations (warble) a physical "worn-down" tape would produce in vintage tape-echo machines, w/ control for frequency of deviation occurrences

Random: this mode randomly changes the ms value of the repeats over fixed time increments resulting in abrupt pitch and rhythmic changes

Pitch-shift: this mode will give you 5 distinct pitch-shifted intervals and 5 playback patterns the last of which is a 5-mode sequencer

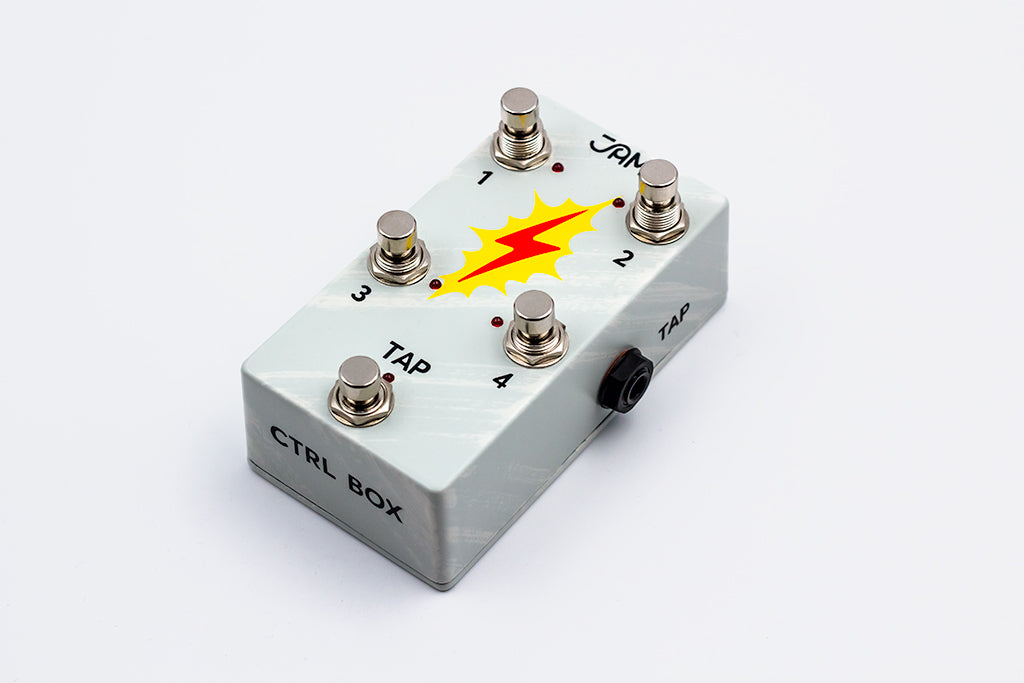

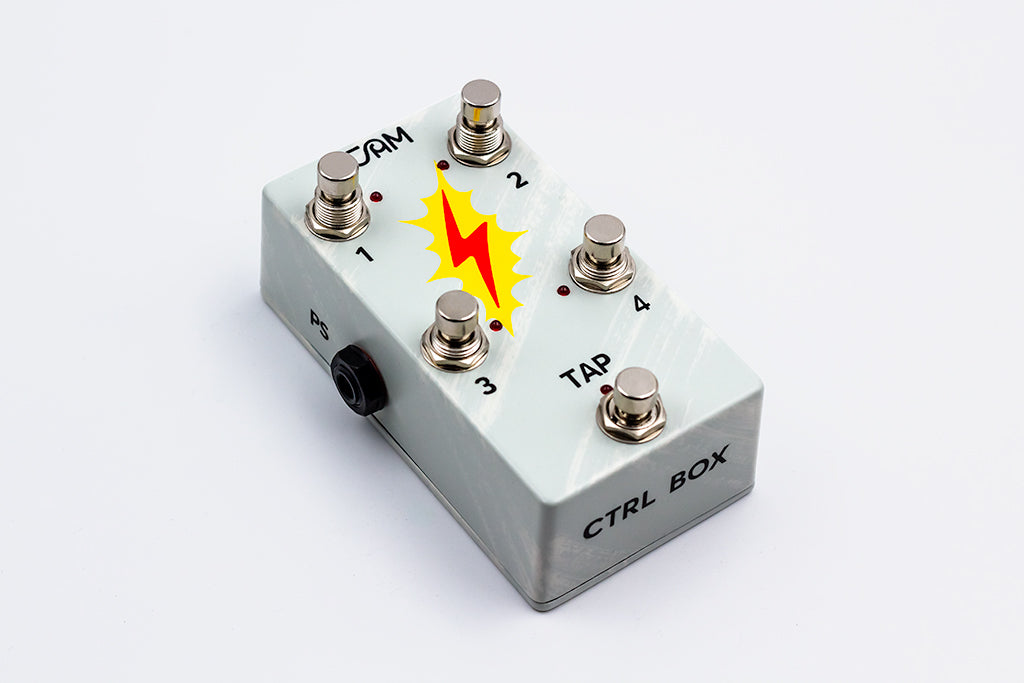

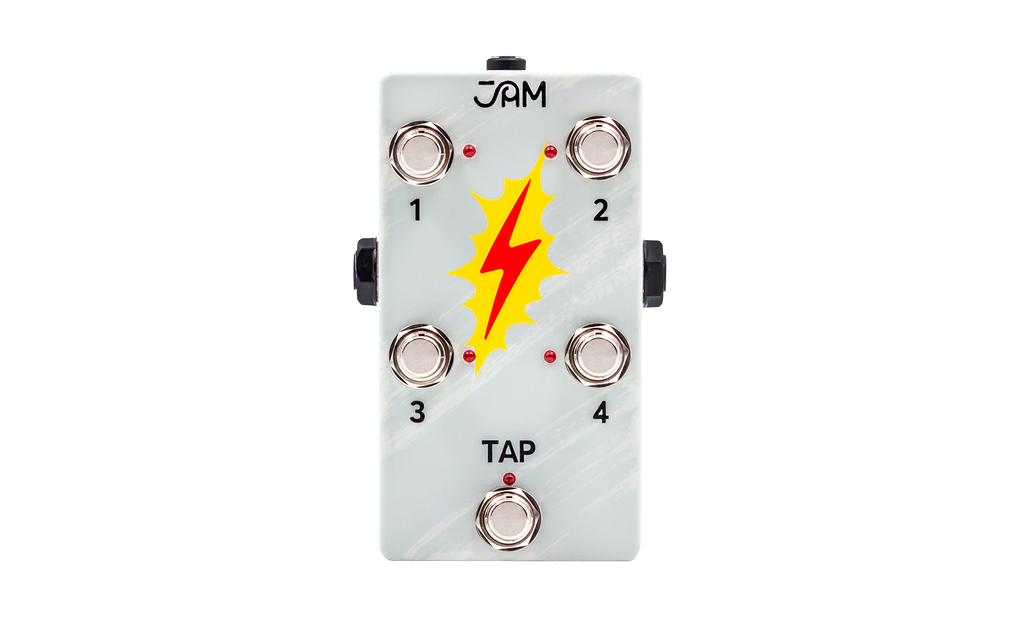

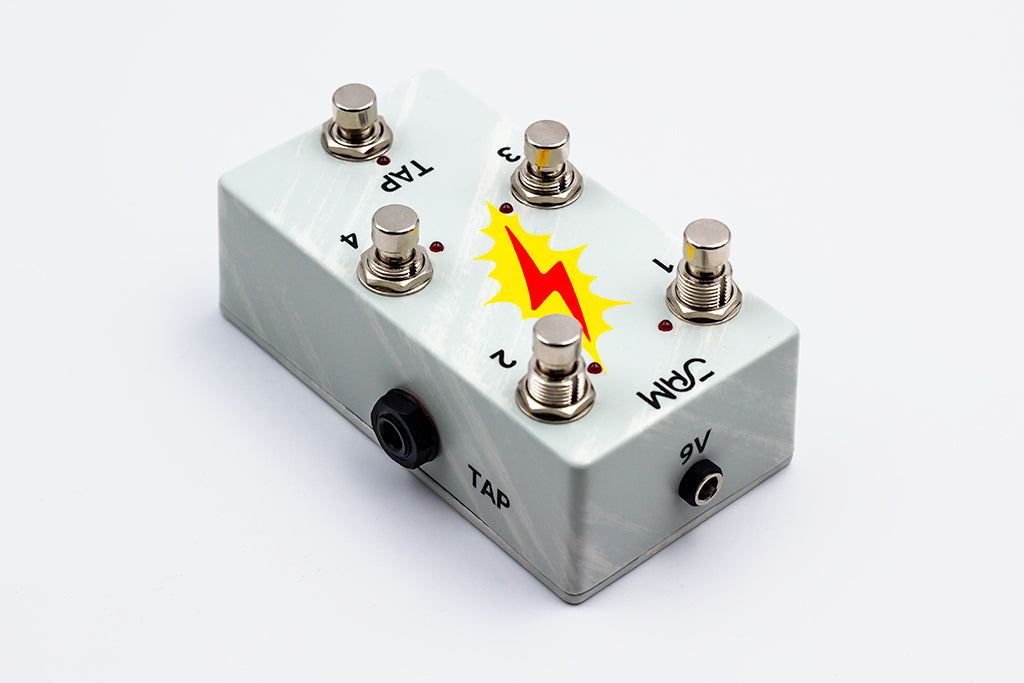

CTRL Box

The CTRL BOX is our official offering for remote preset selection and remote tap tempo / HOLD engagement for the Delay Llama XTREME! As always, handmade and hand-painted at our workshop in Athens, Greece!

To remotely engage presets via the CTRL BOX:

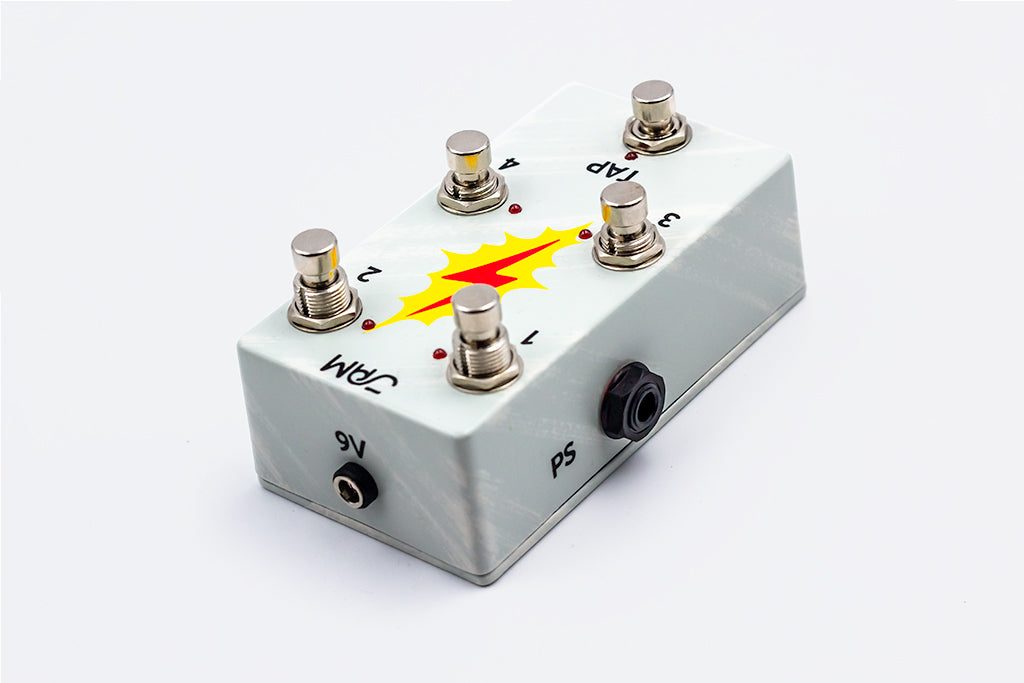

Connect a stereo-to-stereo patch cable from the PS output jack on the CTRL BOX to the PS input jack on your Delay Llama XTREME
Press the numbered footswitch corresponding to the preset you wish to engage

To remotely tap your preferred tempo in via the CTRL BOX:
Connect a mono-to-mono patch cable from the TAP output jack on the CTRL BOX to the TAP input jack on the Delay Llama XTREME
A prolonged press will engage the HOLD function

*Notes:

In order to save presets while the CTRL BOX's remote tap tempo is connected to your Delay Llama XTREME, you would need to simultaneously hold the middle foot switch on the Delay Llama XTREME and TAP TEMPO on the CTRL BOX. Alternatively, you can temporarily disconnect the jack from the TAP IN of the Delay Llama XTREME, perform the traditional save method, and reconnect once save is complete.

You cannot access the manual mode via the CTRL BOX, only the 4 presets

SPECIFICATIONS
Works with 9V DC adaptor (centre-negative)
Power consumption (max): 12 mA
Dimensions (jacks, pots etc. included): 7.5x12x5.6cm / 2.9x4.7x2.2 inches
Weight: 300g / 0.66lbs
