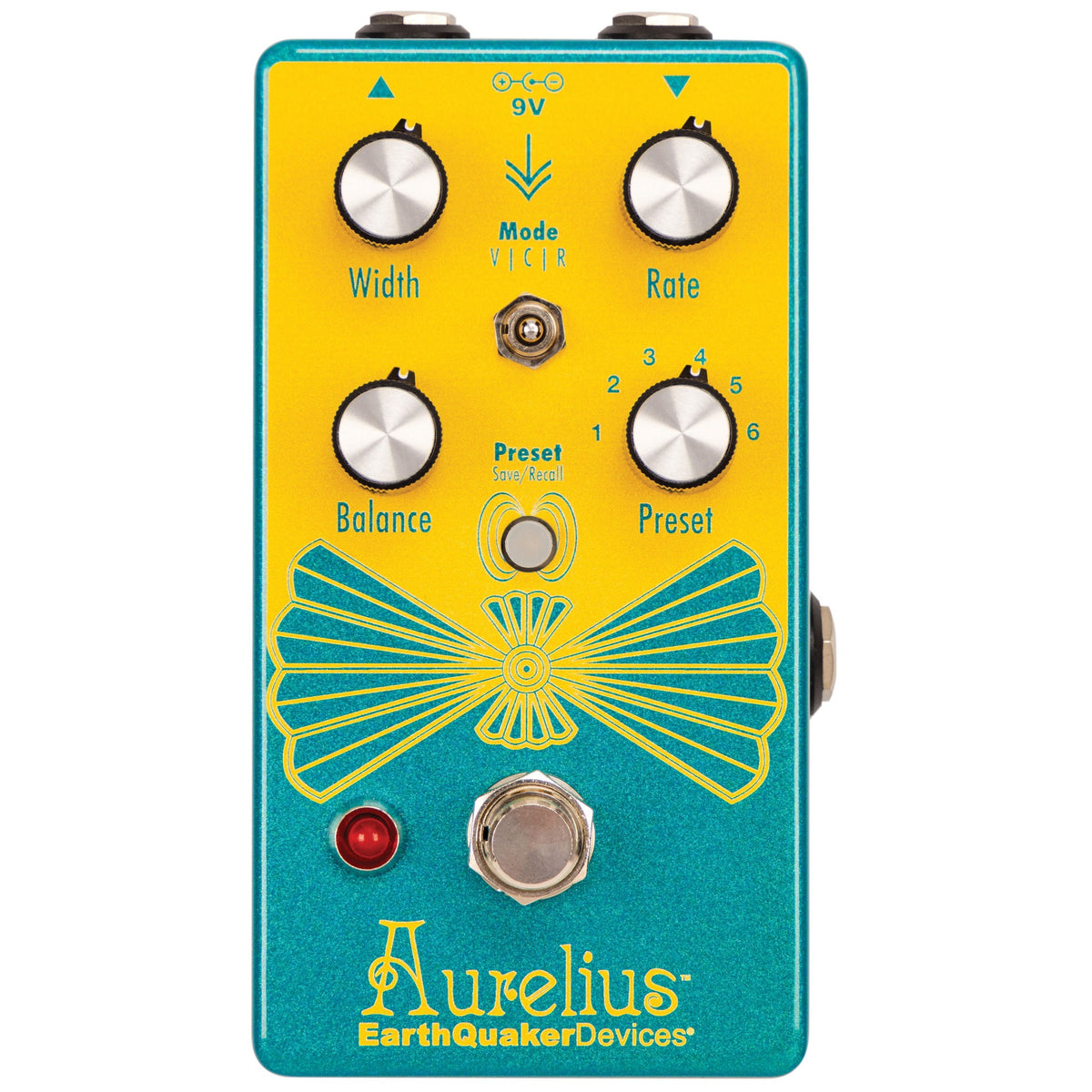

New EarthQuaker Devices Aurelius Tri-Voice Chorus Guitar Effects Pedal

From EarthQuaker Devices:

This is not your run of the mill chorus pedal. This compact, beautifully cased wonder is a three-voice chorus with six programmable presets and expression control. Choose from Vibrato Mode, Chorus Mode, and Rotary Mode and manipulate their Width, Rate, and Balance to achieve your ideal sound. Shift seamlessly from one mode to another to cop a blend that is all your own. One simple tap of the Preset ("Save/Recall") switch and you can summon up to six settings of your choosing at will.

Inspired by the 1970s CE-1 Chorus Ensemble pedal, this digital unit has been tirelessly tweaked and fine-tuned to give you an all-encompassing chorus and vibrato experience like nothing else. By popular demand, we've equipped this with an expression control so you can use any TRS expression pedal to manipulate the Width, Rate or Balance.

Three Voices
Mode V: Vibrato — a familiar traditional chorus type effect that leans towards vibrato with a triangle LFO modulating a short delay line. When the Balance control is turned fully clockwise, the dry signal is removed and the effect becomes a pitch vibrato.
Mode C: Chorus — a blend of chorus and flanger with more warmth and slower rates than Mode V, using a sine wave LFO. Higher Width settings have a more pronounced flanging effect.
Mode R: Rotary Chorus — a rotary chorus effect modeled after the sound of a Leslie speaker cabinet, combining amplitude and frequency modulation for a Doppler effect.

In each mode, Width controls the amplitude of the LFO and how wide the pitch modulation will sweep, Rate adjusts the speed of the LFO, and Balance adjusts the blend or character of the effect.

Global Features
Operating Modes: Live Mode operates exactly where the controls are set; Preset Mode recalls stored presets while ignoring the physical control settings.
Presets: Six available preset slots to save and recall your favorite settings, including the Mode switch and expression jack assignment.
Expression Control: Use any TRS expression pedal to control Width, Rate or Balance. Different EXP assignments can be saved in each preset. Control Voltage can also be used with the EXP jack (CV range 0 to 3.3v).

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 75 mA
Input Impedance: 500 kΩ
Output Impedance: 100 Ω

TRS expression pedal wiring — Tip: Wiper, Ring: +3.3V, Sleeve: Ground.

Flexi-Switch Technology
This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching. Tap the footswitch once to activate and again to bypass; hold for momentary operation. Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel (not included). We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. DO NOT RUN AT HIGHER VOLTAGES!
