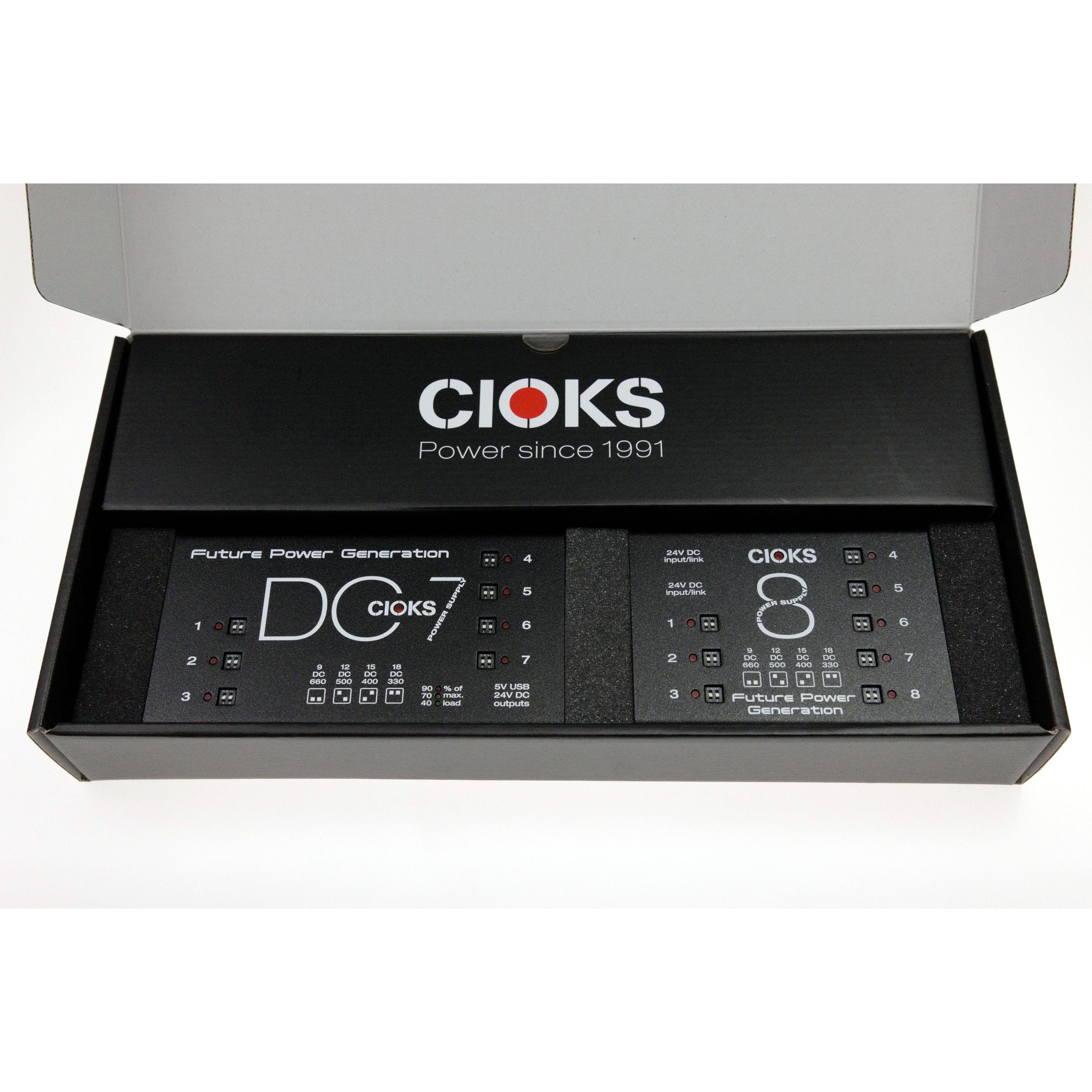

New CIOKS SPB Super Power Bundle with DC7 & CIOKS 8 Guitar Pedal Power Supply

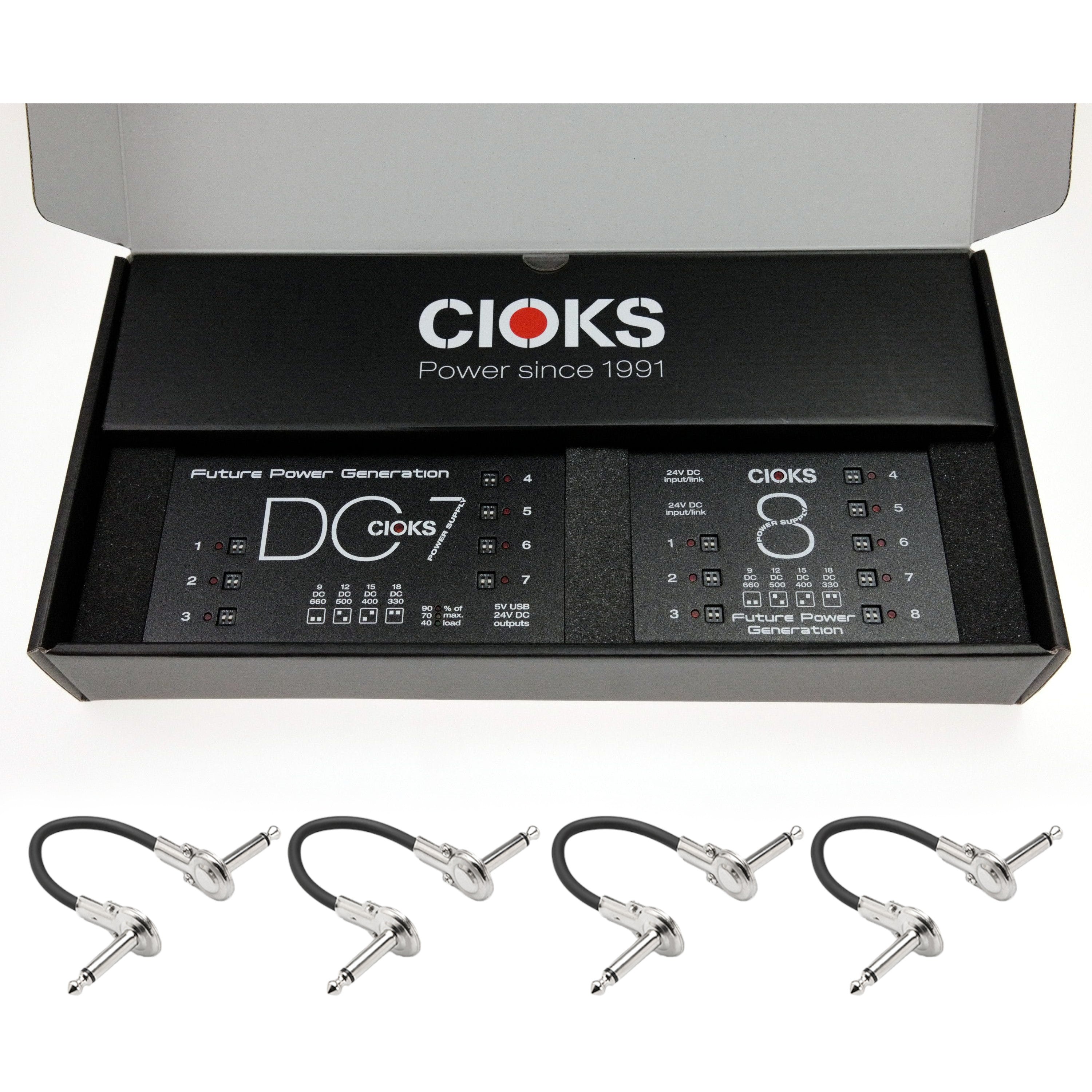

Includes four Hosa patch cables (IRG-100.5)

From CIOKS – Superpower Bundle

When you are building the ultimate pedalboard you need the ultimate in flexible, powerful and reliable power supply, and the combination of the CIOKS DC7 and the CIOKS 8 Expander is just what the doctor ordered. With this combo you get fifteen isolated outlets in total with four switchable voltages on each outlet and a USB outlet for your smartphone or tablet via DC7.

In order to make the options for where to place the DC7 and the CIOKS 8 on your board as flexible as possible, the Superpower Bundle includes two DC Link cables in different lengths so you can connect and mount both units on the same board or place the DC7 on one board and the CIOKS 8 Expander on a separate board if you use two.

To make the CIOKS Superpower Bundle as future-proof as possible you can expand the number of available outlets for your pedals by purchasing a CIOKS 4 Expander Kit or a separate CIOKS 8 Expander and connecting it to the 24V DC link outlet on the included CIOKS 8. Both DC7 and CIOKS 8 are compatible with CIOKS GRIP (sold separately) which allows for super easy drill-free mounting underneath Pedaltrain boards.

Features
Both DC7 and CIOKS 8 Expander have a groundbreaking 1-inch profile (25.4mm)
Ultra-low noise achieved by multistage filtering
7 isolated DC-outlets 6W each on CIOKS DC7
8 isolated DC-outlets, 6W each on CIOKS 8 Expander
660mA at 9V DC on each outlet on both units
4 selectable voltages on each outlet on both units
5V USB output for max. 1A
24V DC auxiliary outlet with max. 2A
Three LED power meter showing the total load of both power supplies
Expandable by adding a separate CIOKS 4 Expander Kit or CIOKS 8 Expander
Total maximum output power from the 15 DC outlets is 42W
Mounting hardware for Pedaltrain and Templeaudio boards included
Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards (sold separately)
24 Flex cables included
Designed in Denmark, assembled in Poland
5-year worldwide warranty

Specifications
Outlet 1-7 on DC7 and 1-8 on CIOKS 8, total of 15 outlets: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each
5V USB / 1A on CIOKS DC7
24V DC Link on CIOKS 8

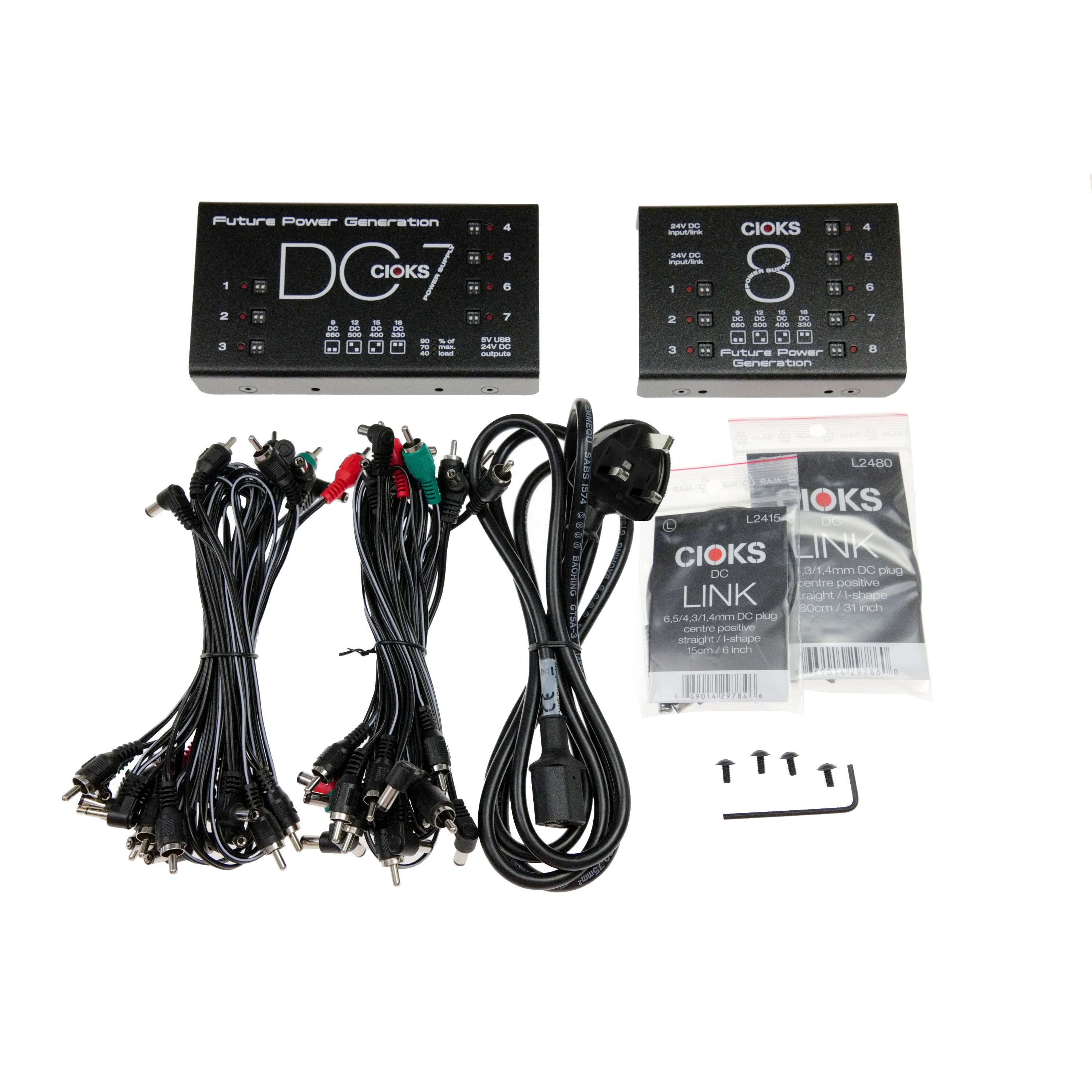

What's in the box
CIOKS DC7 and CIOKS 8 Expander power supplies
Mains power cord
24 Flex cables & 2 DC Link cables
Mounting hardware (4 screws and a hex-key)
2x manual, 2x product sheet (drill guide), Flex guide

Product dimensions (without rubber feet)
CIOKS DC7: 160 x 88 x 25.4mm (6.3 x 3.5 x 1.0")
CIOKS 8 Expander: 120 x 88 x 25.4mm (4.7 x 3.5 x 1.0")
CIOKS DC7 weight: 500g (1.1lb), CIOKS 8 Expander weight: 340g (0.75lb)
