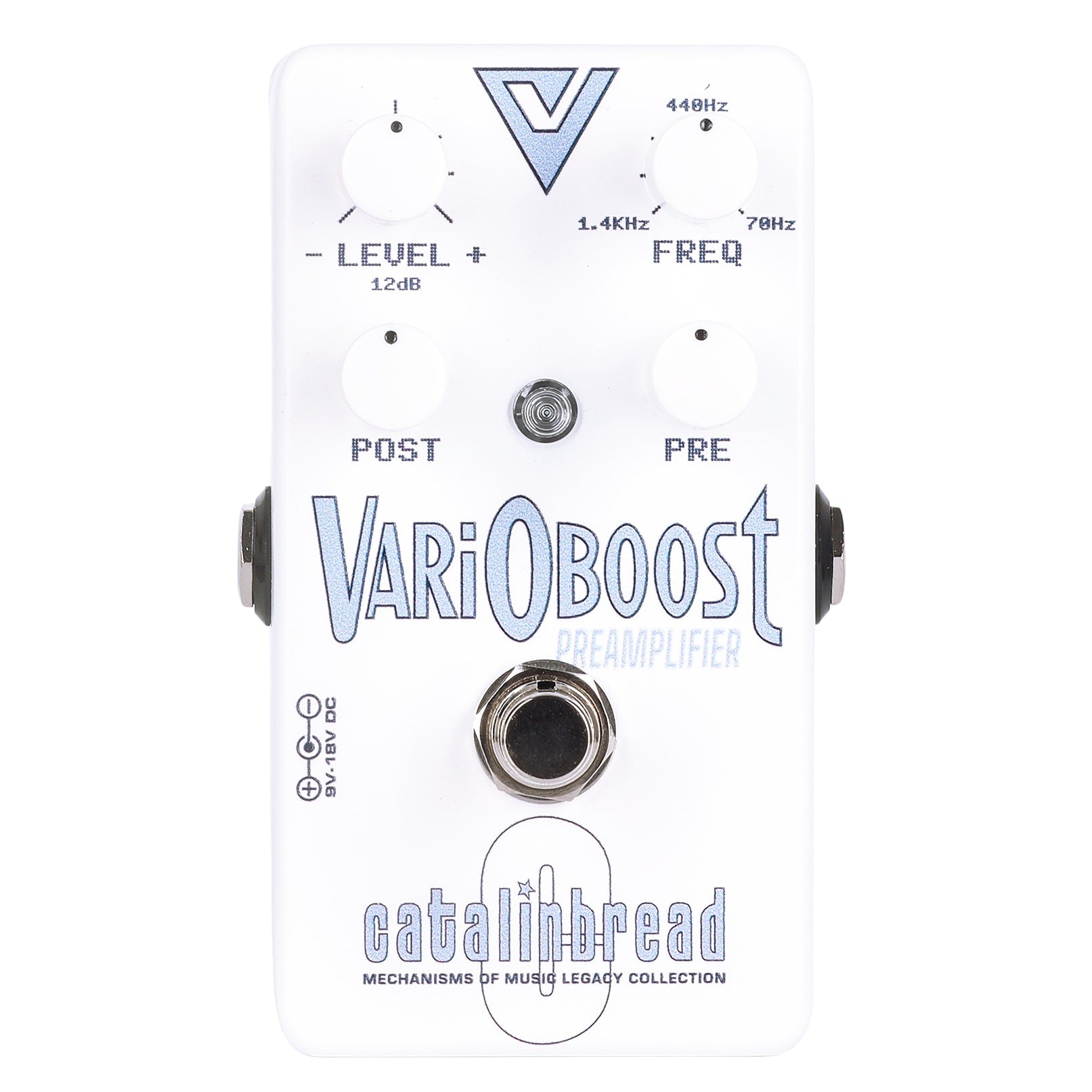

New Catalinbread VariOboost Preamplifier Guitar Effects Pedal

This item is new, in box!

From Catalinbread:

One of our most-requested legacy reissues has arrived! The VariOboost is one of our oldest pedals, with a lineage that nearly reaches the beginning of our timeline. The original delivered 12 decibels of boost or cut at a user-selectable frequency from 70Hz to 1.4KHz, with some additional gain piled on top for a truly stellar boosting experience. This device was loved by players of all stripes, from jazz players looking to tame highs in a surgical way to death metal guys looking to annihilate the midrange without sacrificing volume. We've captured the spirit of the original, with an additional control we call Pre. This new control introduces a clipping circuit before the frequency boost with plenty of gain of its own. Together with the Post knob, you can dial in everything from ultra-clean boost by cranking Post and rolling back Pre, to a very convincing overdrive by turning the knobs the opposite way. You can also give a stubborn amp a shove into the red by running both knobs at whichever level you like.

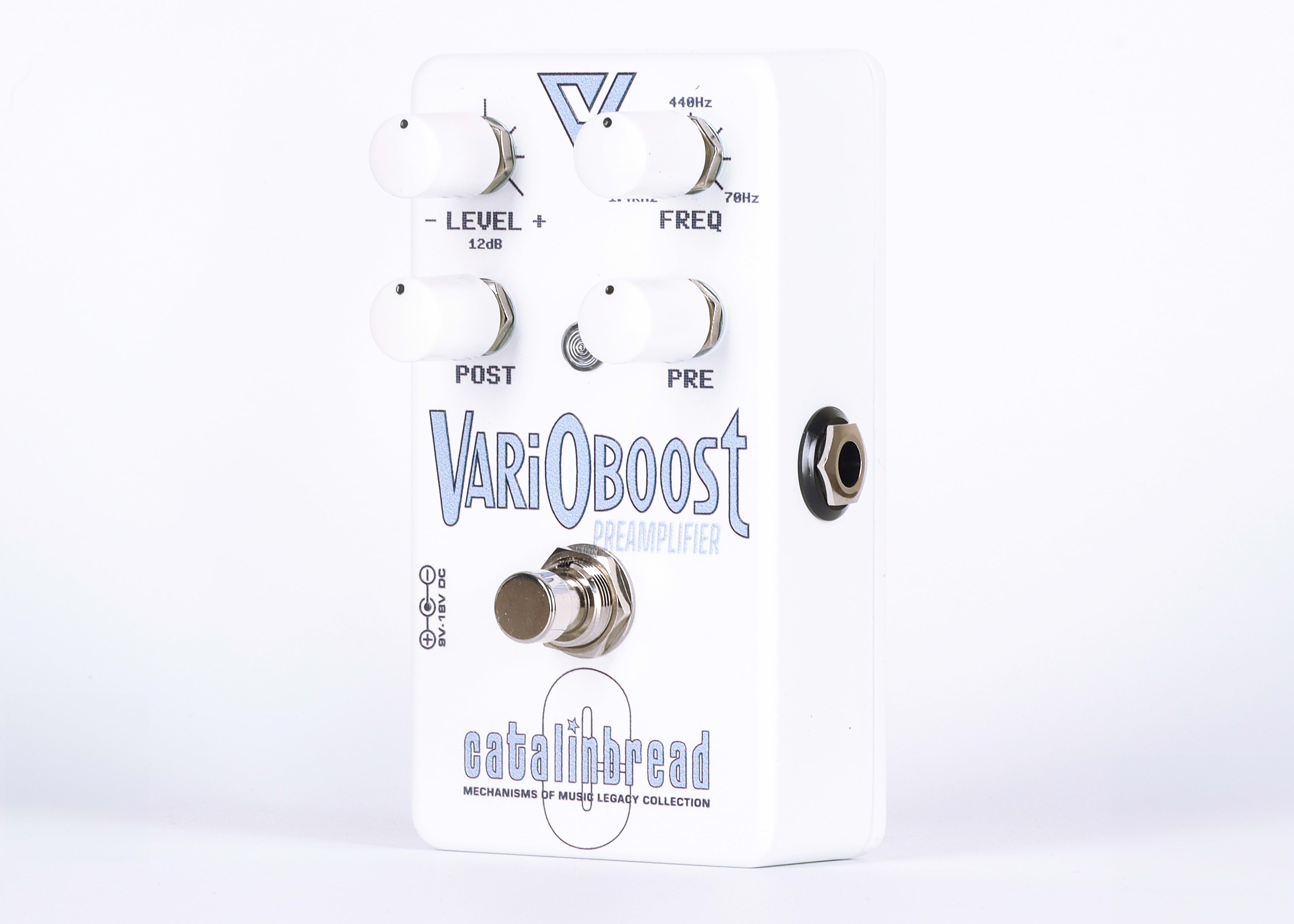

Controls:

LEVEL: After dialing in the Freq, use this control to boost or cut the selected frequency by 12dB. This control is equipped with a center-detent potentiometer; click it to noon and the frequency is flat.

POST: This is the volume control for the unit. The output volume is dramatically increased right before it to give you plenty of clean gain when the Pre knob is minimized.

FREQ: Part of the original VariOboost circuit; Freq and Level work in tandem. Freq selects a frequency between 70Hz and 1.4KHz, which is then cut or boosted by the Level control.

PRE: This knob introduces more gain into the signal path and is configured with some high-threshold soft clipping parts, pushing the post-EQ op-amp into more breakup.

Power Supply:

The VariOboost accepts a center-negative DC power supply from 9 to 18 volts (not included).
